New Designed Steel Strip Machine for Making Foldable Plywood Box
Zhengzhou Invech Machinery Co., Limited- Certification：CE
- Power：6kw
- Type：Single Type and Double Type
- Transport Package：Soft Film in Container
- Specification：20FT Container
- Trademark：INVECH MACHINERY
Base Info
- Model NO.：GA6000
- Origin：China
- Production Capacity：200PCS,Year
Description
Basic Info.
Model NO. GA6000 Origin China Production Capacity 200PCS/YearProduct Description

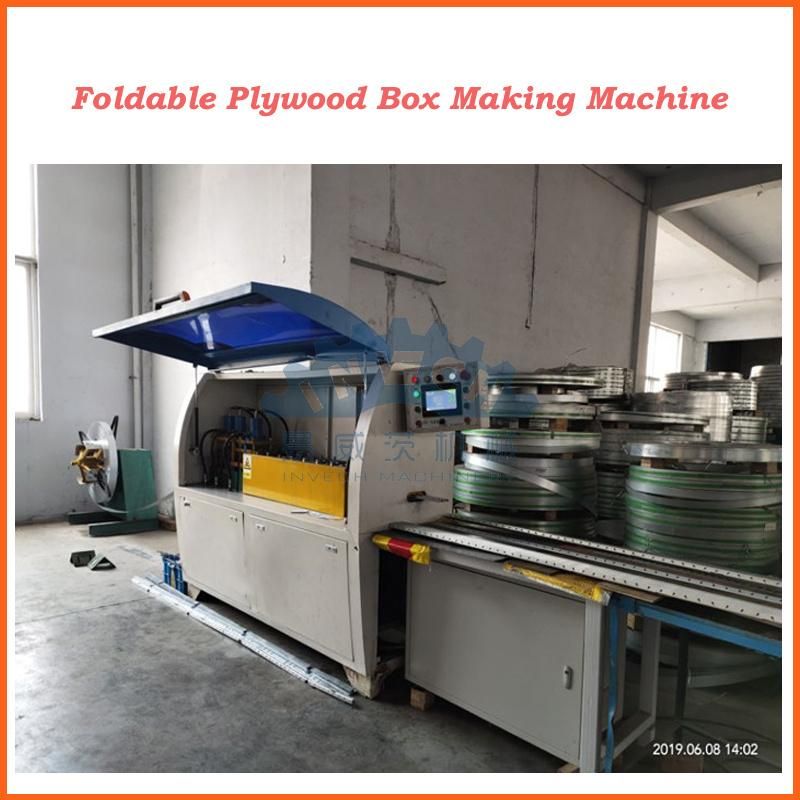

New Designed Steel Strip Machine For Making Foldable Plywood BoxBrief Introduction

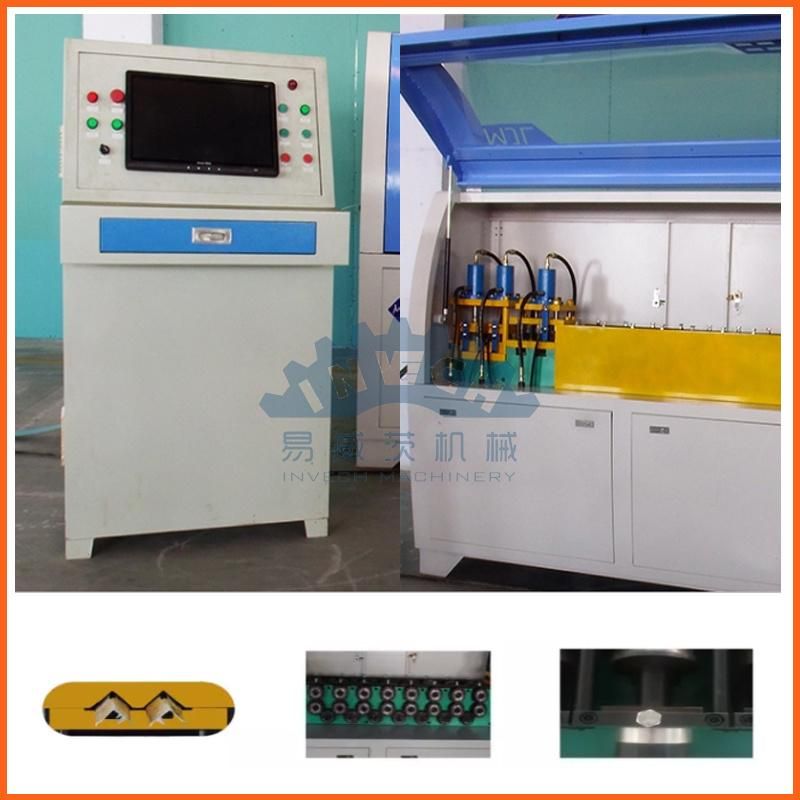

Professional Single/Double Steel Strip Machine is used for making teeth, holes on steel strip, then this steel strip is used for making nailless plywood box.The formed steel strip from this machine is facing down and has no burrs on the outside.
Technical Parameters
Name | Parameter |
Steel Strip Spec. | 40x0.7mm,80x0.7mm(Can be customized) |
Advantage | The formed steel strip from this machine is facing downwards and has no burrs on the outside.The steel strip from old-fashioned machine is facing up. |
Tooth Length | 9.5mm(Can be customized) |
Capacity | Single Strip 2000~3000m/h /Double Strip 5000~6000m/h |
Total Power | 6kw |
Machining Precision | ±1mm |
Machine Floor Area | Machine 2300*700*1650mm Workbench 1200x600x800mm |
Material Rack | 1000x1000x1000 |
Total Weight | Host Machine 750kg Material Rack 200kg |
