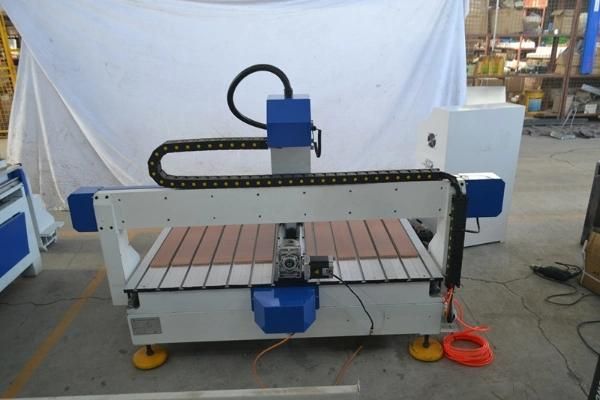

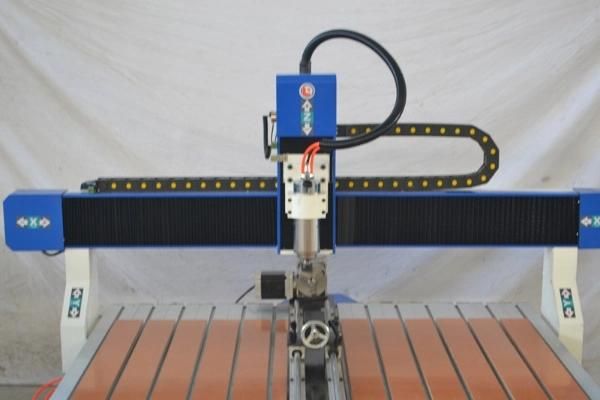

Small Desktop Wood 3D CNC Router 1212, Mini Aluminum Engraving Machine
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：220V
- Model：6090 1212 1218 1224 1325
- Working Area：1200*1200mm
Base Info
- Spindle：Water Cooling ,Air Cooling
- Driving Method：Taiwan Original Tbi Ball Screw
- Control System：Ncstudio,Mach3,DSP
- Motors：86byg-450b Stepper Motors
- Drivers：Ma860h Leadshine Drivers
- Standard Software：Artcam 2010
- Spindle Speed：0-24000rpm,Min
- Whole Structure：Cast-Iron Structure
- Table Style：Aluminum T-Slot Table with PVC
- Guide Rail：Round Guide Rail,Hiwin Linear Square Guide Rail
- Power：1.5 Kw,2.2kw,3.0kw
- Application：Cutting,Engraving,Milling
- Use：Acrylic Wood Plywood Aluminum Stone Metal
- Transport Package：195*195*170cm 550kg
- Specification：170*175*140cm
- Trademark：litianzhiyuan
- Origin：China
- HS Code：8465990000
- Production Capacity：200
Description
Model No.
LT-1212 Wood CNC Router
Table Size
1200mm*1200mm
Max. feeding height of Z axis
200mm
Table Structure
Aluminum table with T-slot
Machine body
Cast-iron
X Y Z axis Transmission
TBI Ball Screw
X Y Z Guide rail
Round Guide Rail
Spindle Power
1.5kw water cooling spindle
Max.Spindle Speed
24000 rpm/min
Max. Traveling Speed
7000mm/min
Max. Working Speed
7000mm/min
Processing Accuracy
±0.025mm
Reposition Accuracy
≤0.025mm

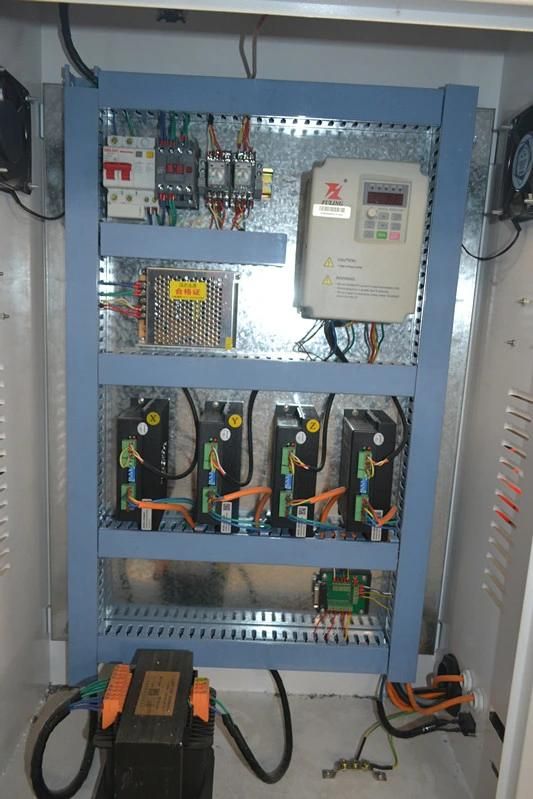

Driving System
Leadshine drivers
Command Language
HPGL, G Code
Control System
NCSTUDIO/MACH3/DSP
Working Voltage
AC110/220V, 50/60HZ
Net Weight/Gross Weight
550KGS
Package Dimension
1950*1950*1700mm
Optional part :
1.2.2kw/3.0kw water cooling spindle
2.Mach3 control system
3.Hiwin linear square guide rail
4.Water cooling system with water tank

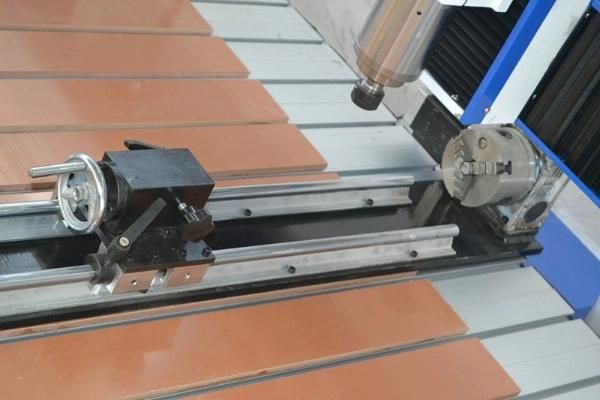

5.Rotary axis 80mm,100mm,150mm
6.Vacuum table with vacuum pump
Sample
Cnc router 6090 has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field.It is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite, stone, steel and soft metal etc.
Guarantee & After Sales Service
1.Two years quality guaranty for the machine and online service everyday day, free
technical support. .
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Machine has been adjusted before delivery
5.Our staff can be sent to your company to install or adjust if necessary
6.The processing demo video and E-catalogue will be mailed as your request.
Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech
and high-quality products to build the world brand.Our main products:large-scale(automatic tool change)
CNC woodworking engraving machine,CNC advertising engraving machine, CNC marble engraving machine,
CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine,CNC metal mold
machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter
product.
FAQ
1. I never use this kind of machine before, is it easy to learn?User-friendly English manual and operation video will be sent together with the machine, if there is still any
question,we can talk through phone or Skype.
Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you
professional guidance.
2. If the machine has problem, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone.
our after-sales staff can come to your workshop if the problem still cannot be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work
piece, our techniciant will recommend the most suitable machine for you. Furthermore, we can make a sample
in advance for you to check if your drawing is provided.
4. MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port
name. There will be best shipping freight and machine price send to you.
5. Payment terms
a. 30% by T/T in advance,70% by T/T before shipping.
