CNC Engraving Machine CNC Router for Metal and Wood

Jinan Zhongke CNC Equipment Co., Ltd.
  • Warranty：1 Year
  • Type：Engraving Router
  • Spindle Layout：Horizontal
  • Spindle Number：1 Spindle
  • Feed Mode：Manual
  • Controlling Mode：CNC

Base Info

  • Certification：CE
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Working Area：1300*2500*200mm
  • X, Y, Z Traveling Positioning Accuracy：0.03,300mm
  • X Y Structure：Taiwan Hiwin Square Guide Rails
  • Spindle：Water Cooling Spindle
  • Spindle Power：3.2kw
  • Motor：Stepper Motor
  • Control System：4 Axis Control System
  • Transmission：Helical Rack
  • Key Words：CNC Router
  • Transport Package：Exporting Plywood Package
  • Specification：CE, SGS
  • Trademark：ZHONGKE
  • Origin：Jinan, China
  • HS Code：8465990000
  • Production Capacity：1000 Sets Per Year

Description

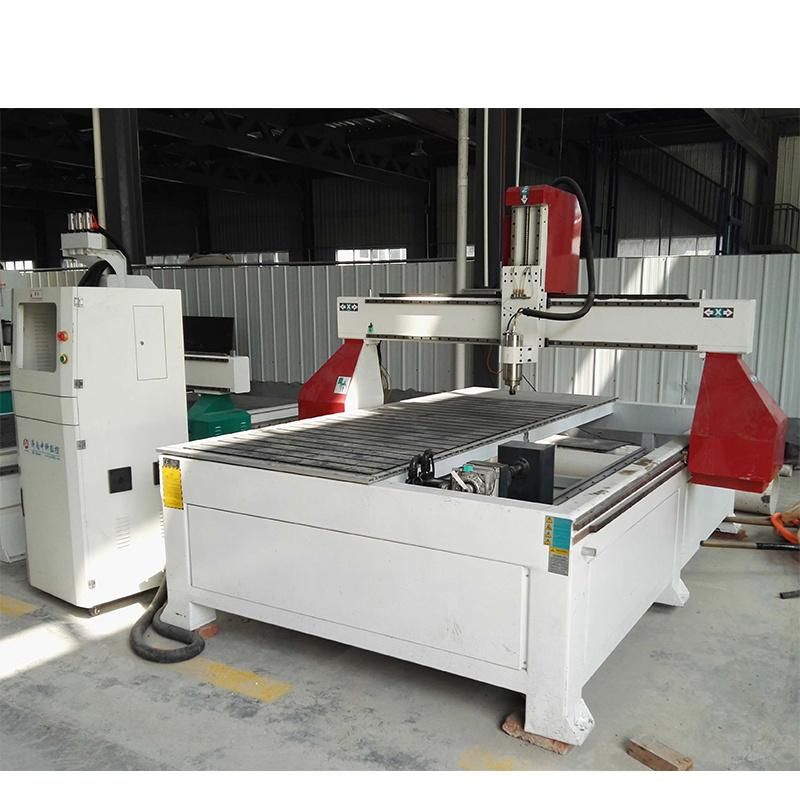

Products ShowCNC Engraving Machine CNC Router for Metal and Wood

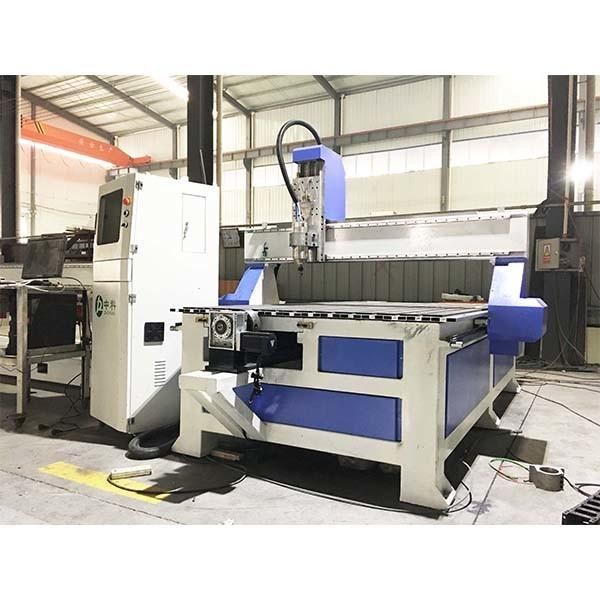

CNC Engraving Machine CNC Router for Metal and Wood
CNC Engraving Machine CNC Router for Metal and Wood




Specification
 DescriptionParameterX,Y,Z Working Area1300*2500*200mm, with rotary attachment for 3d engravingX,Y,Z Traveling Positioning Accuracy±0.03/300mmX,Y,Z repositioning Positioning Accuracy±0.02mmLathe StructureHard steel sturctureX StructureBALLSCREW, Taiwan HIWIN square guide railsY StructureBALLSCREW,Taiwan HIWIN square guide railsZ StructureBALLSCREW,Taiwan HIWIN square guide railsMax.Speed0-30000mm/minMax.Working Speed0-25000mm/minSpindle Power MotorWater cooling spindle, can be optional air cooling spindleTools magazineNoneSpindle Speed0-24000RPMWorking ModeStepper motor, can be optional Japanese servo motor or Taiwan Delta servo motorWorking Voltage380V/3 PHASE  or 220VCommand CodeG code(*uoo,*nc,*mmg, *plt)Operating SystemNcstudio control system, also can be optional DSP control systemColletER25(Φ3.175, Φ6,12.7mm CAN OPTIONAL )X,Y Working Delicacy<0.01mmSoftwareType3/Artcam softwareRunning circumstanceTemperature:0°C~45°C
Relative humidity:30%~75%Optional deviceDust collector :USD200 Vacuum system USD 655, servo system(will use Panasonic servo motors and driver board) USD2950WarantyOne yearDelivery time1 week after get total payment by T/T transferUpgradeMore wider and hard Aluminum table with high quality clamps ,X,Y Axis adopt auto eliminating clearance device, more accuracy ,oil lubrication system standard
Application:

Furniture Decoration Industry1)A large area flat plate engraving
2)panel furniture carving
3)wood art murals
4)wood cabinet doors carving

Wood Products Processing
1)sewing machine table
2)electrical counter table
3)sports equipmentsMusical Instrument Industry1)instrument 3D surface engraving
2)shape cuttingArtwork1)photo frame
2)jewelry boxElectronic Industry1)circuit board
2)insulation mterial
3)LED display screen
CNC Engraving Machine CNC Router for Metal and WoodCNC Engraving Machine CNC Router for Metal and WoodCNC Engraving Machine CNC Router for Metal and Wood

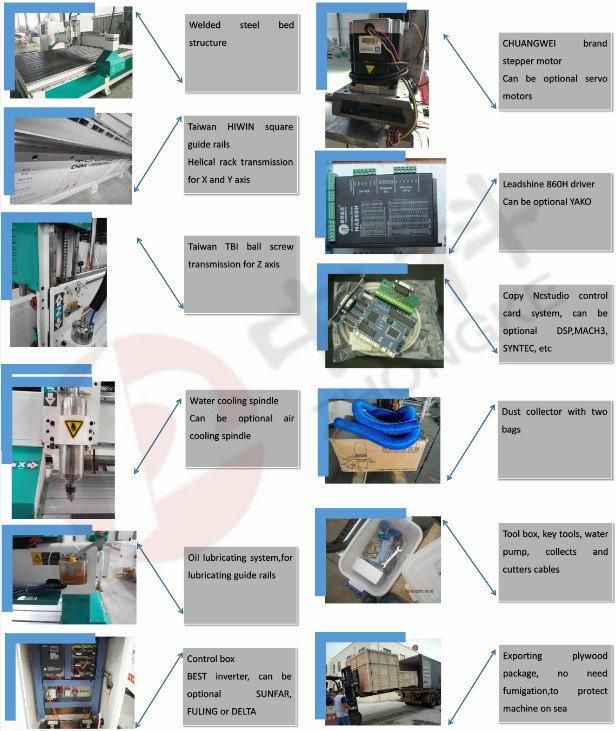

Note: optional machine parts

1.The spindle can be water-cooling or air-cooling,  single head or multi-head,
  and its power can be changed according to the material.(3.0kw, 3.2kw, 4.5kw, 5.5kw etc.)
  China brand HQD or Italy HSD spindle.
2. The operation system can be DSP or NC studio system, or MACH3 control system
3. Table surface: Aluminum T-slot table with clamps or vacuum adsorption table with vacuum pump
If you need double use, we also can produce T-slot and vacuum table together
4. The motor can be stepper or servo motor, or hybrid servo motor

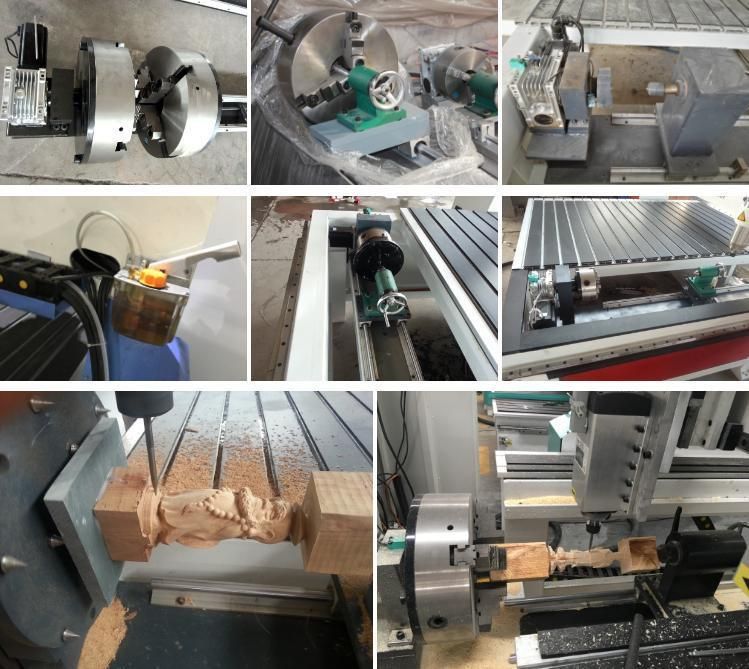

5. You can also add dust collector, dust cover, rotary axis, auto oiling lubricating system

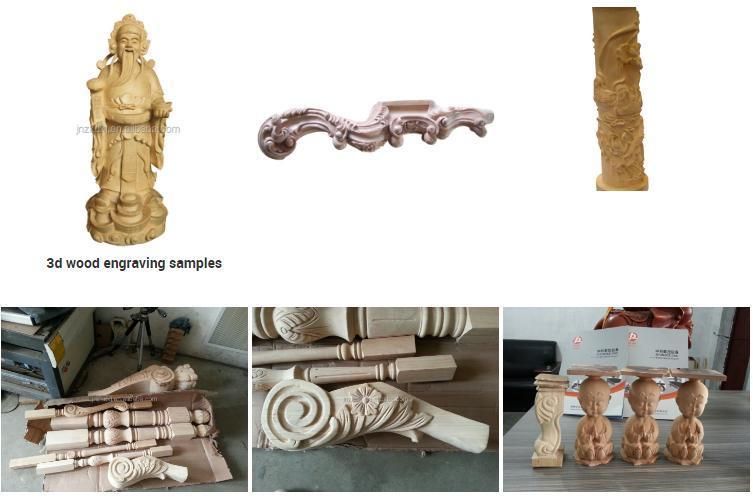

6. Other customerized parts.sample photos

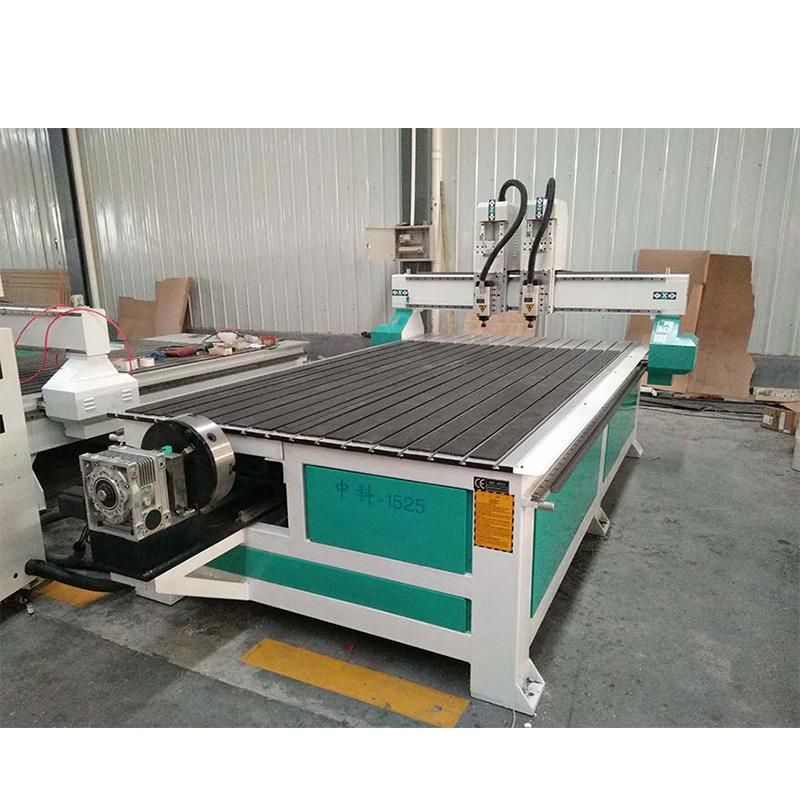

CNC Engraving Machine CNC Router for Metal and Wood
cnc router machine manufacturing process:

1. The engineers design the machine according to your needs.
2. The purchasing department carefully select and buy the machine parts.
3. The skilled workers make the machine.
4. The quanlity control department supervise the whole manufacture process.

The machines that we can produce, because we are manufacture, we can offer  you different models machine with different function
Then please tell me your requirement is ok
