Top Grade Woodworking End Corner Rounding Sealing Machine/ Sealing Tape Making Machine/ Particle Board PUR Edge Banding Machine for Door

Qingdao Xinlihui Machinery Co., Ltd.

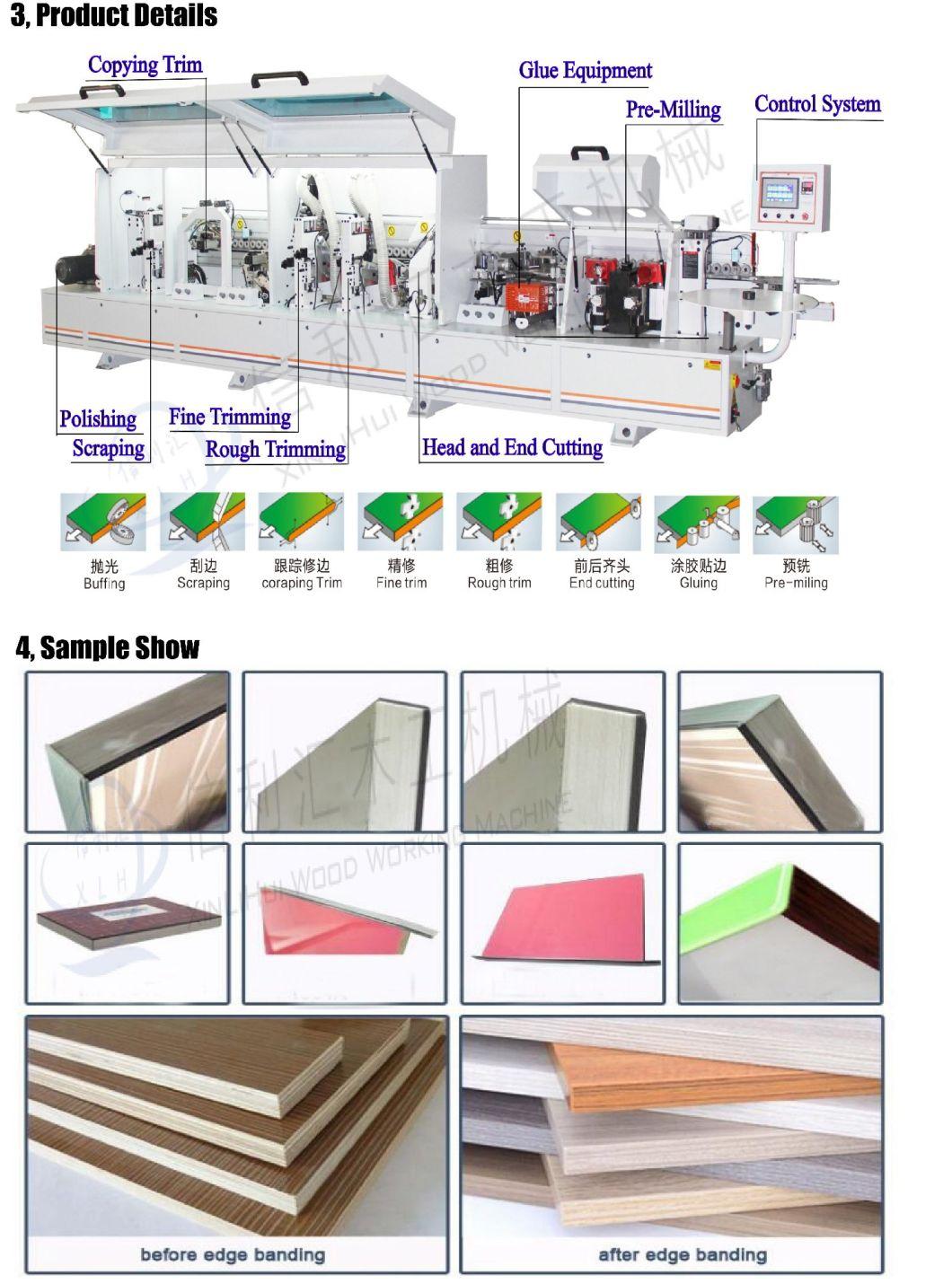

  • Function:Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing, Slotting
  • Type:Linear Edge Banding Machine
  • Edging thickness:0.4-3mm
  • Automatic Grade:Automatic
  • Panel Feeding Speed:20m,min
  • Certification:CE, ISO, FDA

Base Info

  • Model NO.:MFZ450DJ
  • Panel Thinkness:10-60mm
  • Min.length panel:160mm
  • Min.width panel:60mm
  • Manufacturing Principles:Glue Tank Underneath
  • Customized:Customized
  • Machine Item:Woodworking End Corner Rounding Sealing Machine
  • Machine Painting Color:Be Made According to Your Need
  • Price:Lowest Reasonable Offers with Best Machine
  • Air Pressure:0.7MPa
  • Voltage:380V,50Hz 3phase Can Be Customized
  • Total Power:16.5kw
  • Weight:2500kgs
  • Warranty:Offer Free Spare Parts and Service Within 12 Month
  • After-Sales Service Provided:Engineers Available to Service Machinery Overseas
  • Working Experience:Twenty Years′ Experience
  • Transport Package:Standard Package, Be Made According Cutomer Need
  • Specification:6585*970*1520mm
  • Trademark:XINLIHUI Automatic Wood Edge Banding Machine
  • Origin:Qingdao City
  • HS Code:84659100
  • Production Capacity:100,Week

Description

Panel thickness10-60mmEnging thickness0.4-3mmMin.Width of panel≥80mmMin. Length of panel≥160mmMax.size of tape higher than panel(each side )2mmPanel feeding speed≤20mm/min(variable speed)Pneumatic power0.7MpaPower380V 3N/PE 50Hz Can be customziedPanel feeding motor1.5KWGlue axis motor0.75kwEdge-cutting motor3kw*2 200Hz  12000r/minRough triming motor1.1kw*2 200Hz 12000r/minFine trimming motor0.5kw*2 200Hz 12000r/minBuffing motor0.25kw*2 50Hz 2800r/minHeating power of glue tank2.5KWSecondary heating power0.12KWLnstalled power9.57KWTotal current19.13AGlue temperature fo readging (reference)180-200ºCOverall dimensions6585*970*1520mmWeight2600kg

Top Grade Woodworking End Corner Rounding Sealing Machine/ Sealing Tape Making Machine/ Particle Board PUR Edge Banding Machine for Door



5, Features

1:Flexible, advantages of high performance, easy debugging, convenient in maintenance and  easy to operate.

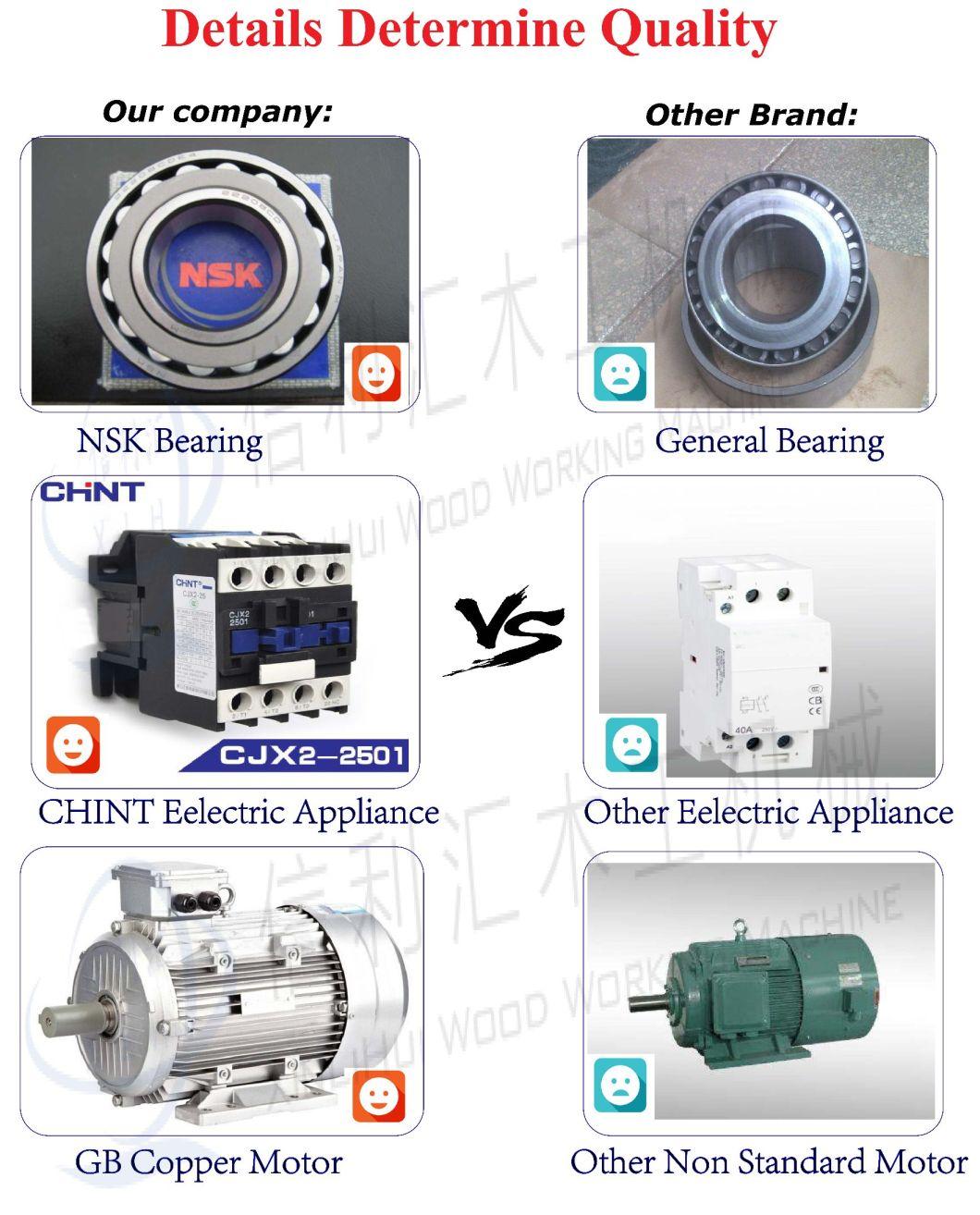

2: high quality electric components and transmitting component make machines fuction more steady.
3: Full-close safety shield,more human operation.
4.energy-saving,enduring.
5.Stable performance.


Top Grade Woodworking End Corner Rounding Sealing Machine/ Sealing Tape Making Machine/ Particle Board PUR Edge Banding Machine for Door
Top Grade Woodworking End Corner Rounding Sealing Machine/ Sealing Tape Making Machine/ Particle Board PUR Edge Banding Machine for Door
8, Company Information
Qingdao  Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.

Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.

The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards.  With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad.  Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.  It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.
