• Model NO.：FM1530-4 Axis
• Spindle：Atc Italy Hsd 9.0kw Air Cooling Spindle
• Auto Tool Changer：Linear Auto Tool Changer 6 Tools
• Rotary Axis Diameter：400
• Motor：Japan Yaskawa Servo Motor and Driver
• Guide Rail：Taiwan Hiwin Square Guide Rails
• Inverter：Taiwan Delta Inverter
• Table：Vacuum and T-Slot Table
• Transmission Way：Taiwan Tbi 3210 Ball Screw Transmission
• Transport Package：Standard Export Plywood Package
• Specification：3000*1500*400mm
• Trademark：FIRMCNC
• Origin：China, Shandong, Jinan
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM1530-4 Axis Spindle Atc Italy Hsd 9.0kw Air Cooling Spindle Auto Tool Changer Linear Auto Tool Changer 6 Tools Rotary Axis Diameter 400 Motor Japan Yaskawa Servo Motor and Driver Guide Rail Taiwan Hiwin Square Guide Rails Inverter Taiwan Delta Inverter Table Vacuum and T-Slot Table Transmission Way Taiwan Tbi 3210 Ball Screw Transmission Transport Package Standard Export Plywood Package Specification 3000*1500*400mm Trademark FIRMCNC Origin China, Shandong, Jinan HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

Good quality wood door making machine wood carving 4 axis cnc router for sale

Brief Introduction of 4 axis cnc router
♦ The spindle can rotated 180 degree, specially designed for curve surface cabinet,doors and indoor decoration. and also for some mold prcessing.
♦ It can be used for mass-processing with Vacuum holding way and dust collector.
♦ Equipped with top quality components for the machine, such as HSD ATC spindle, and the spindle Yaskawa servo motor & Taiwan Delta Inverter, Becker Vacuum pump,
Hiwin linear square guide rails, SYNTEC control system and so on, to keep the machine in the best condition even after working for many years.
Equipped with 400mm rotary axis

Technical parameters of 4 axis cnc router

Description	Parameter
X,Y,Z axis working area	3000* 1500*400mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Table surface	Vacuum Combined T-slot
Frame	Big steel tube structure
Control system	Taiwan Syntec control system
Spindle Power	9.0KW HSD air cooled spindle
spindle rotating speed	24000r/min
Tool type	Linear type
Guide rail	HIWIN square guide rail
Motor	AC Yaskawa servo motor
Max. Power Consumption	(Without Spindle) 4.5Kw
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	30000mm/min
working voltage	AC380V/3PH/50HZ
Command Language	G Code
Computer Interface	USB
Operational System Software	Type 3/Artcam
Gross Weight	1900KG

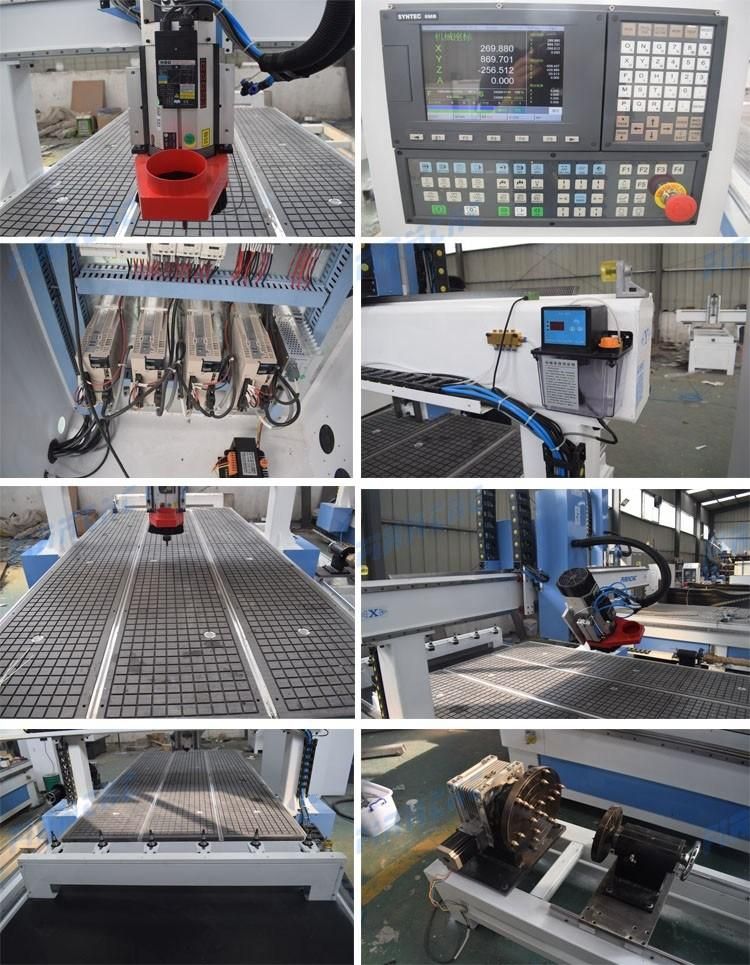

Main allocation and parts pictures of 4 axis cnc router
Taiwan SYNETC control system
Taiwan Delta inverter
Italy 9KW HSD air cooling spindle
400mm rotary axis
Japan YASKAWA servo motor and driver
Taiwan TBI ball screw tansmission
Turntable tool changer
Gear reducer
5.5KW vacuum pump
Tool setting gauge
Centre automatic lubrecation system
Control box
Germany Schneider electrical component

Application of 4 axis cnc router
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

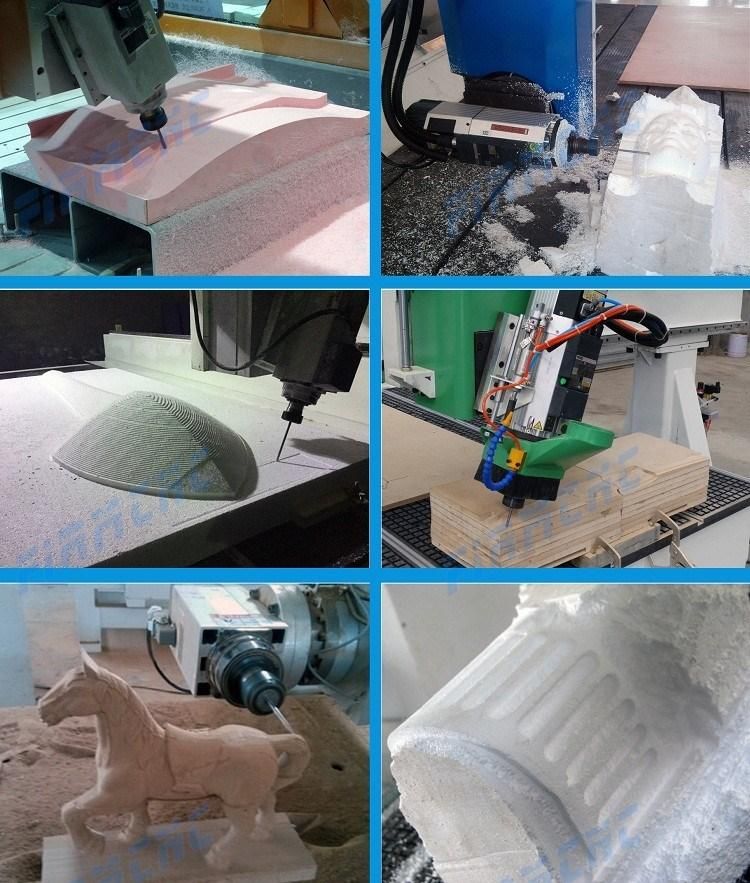

Samples of 4 axis cnc router

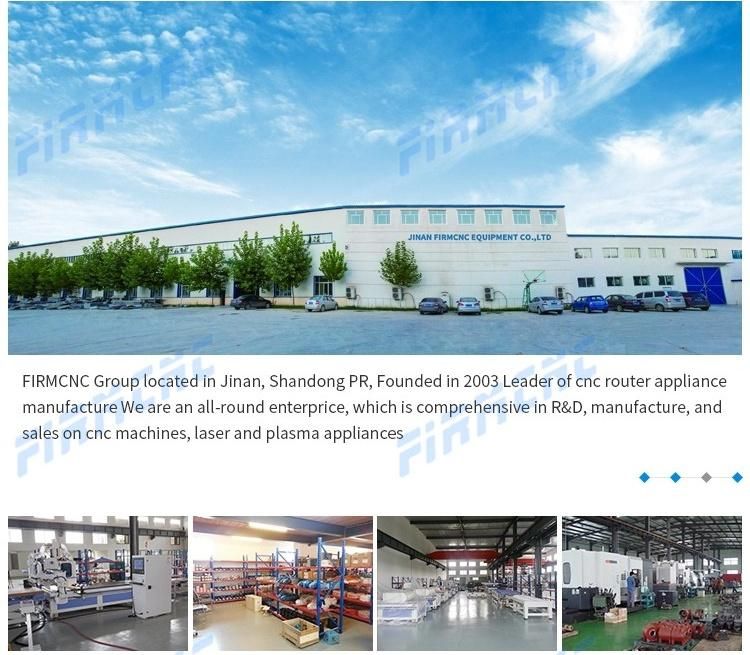

Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.


Other type wood cnc router machines for your refence
# Linear or Circular type ATC wood cnc router
# Pneumatic 4 head ATC cnc router
# Wood cnc router with air cooling spindle
# Wood cnc router with water cooling spindle
# Mini cnc router for wood advertising
# Double heads wood cnc router

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.

If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
