• Model NO.：BY214x8,10(2)H1RC
• Pressing Layer：Multi Layer
• Work Mode：Continuous
• Controlling Mode：Artificial
• Automatic Grade：Semiautomatic
• Certification：CE
• After-sales Service：Free Service on Internet
• Model：By214X8,10(2)H1RC
• Working Layers：2
• Specific Pressure up to：3.2kgf,Cm2
• Platens No.& Dimensions：3-2500X1300X42mm
• Daylight Opening：170mm
• Cylinders No.& Diameter：6-85mm
• Heating Method：Electric Heated with Thermic Oil Electric Heated W
• Max.Working Temperature：120
• Installation Power：28.75kw
• Total Pressure：1000kn
• Transport Package：PE Film
• Specification：BY214× 8,10(2)H1RC
• Trademark：CHANCSMAC
• Origin：China
• Production Capacity：10 Sets, Month

Basic Info.

Model NO. BY214x8/10(2)H1RC Pressing Layer Multi Layer Work Mode Continuous Controlling Mode Artificial Automatic Grade Semiautomatic Certification CE After-sales Service Free Service on Internet Model By214X8/10(2)H1RC Working Layers 2 Specific Pressure up to 3.2kgf/Cm2 Platens No.& Dimensions 3-2500X1300X42mm Daylight Opening 170mm Cylinders No.& Diameter 6-85mm Heating Method Electric Heated with Thermic Oil Electric Heated W Max.Working Temperature 120 Installation Power 28.75kw Total Pressure 1000kn Transport Package PE Film Specification BY214× 8/10(2)H1RC Trademark CHANCSMAC Origin China Production Capacity 10 Sets/ Month

Product Description

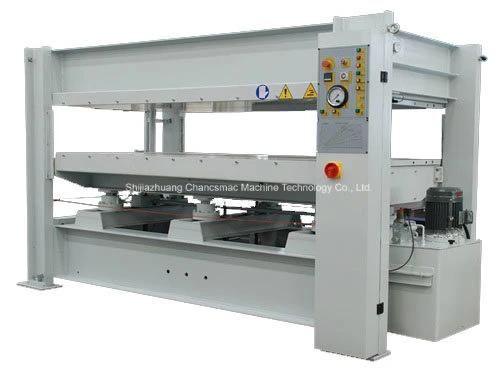

Three Layer Laminatin Hot Press Machine1.Introduction:Laminating hot press is also called hot press machine or cover press machine. It is suitable for furniture and panel decorative factories to laminate all kinds of decorative paper HPL or veneer on wooden door, core board, MDF, Plywood, chipboard etc. Veneer drying and leveling is also workable with cover press.
 2.Parameter:

Model	BY214×8/10(1)H1RC	BY214×8/10(2)H1RC	BY214×8/10(3)H1RC
Total Pressure	1000kN	1000kN	1000kN
Working layers	1	2	3
Specific Pressure up to	3.2kgf/cm2	3.2kgf/cm2	3.2kgf/cm2
Platens No.& Dimensions	2-2500×1300×42mm	3-2500×1300×42mm	4-2500×1300×42mm
Daylight Opening	380mm	170mm	120mm
Cylinders No.& Diameter	6-Φ85mm	6-Φ85mm	6-Φ85mm
Heating method	Electric heated with thermic oil	Electric heated with thermic oil	Electric heated with thermic oil
Max.Working Temperature	120ºC	120ºC	120ºC
Platens opening way	Automatically	Automatically	Automatically
Installation Power	28.75kW	40.75kW	52.75kW
Closed speed	40mm/s	40mm/s	40mm/s
Overall Dimension	3600×1710×2080mm	3600×1710×2080mm	3600×1710×2080mm

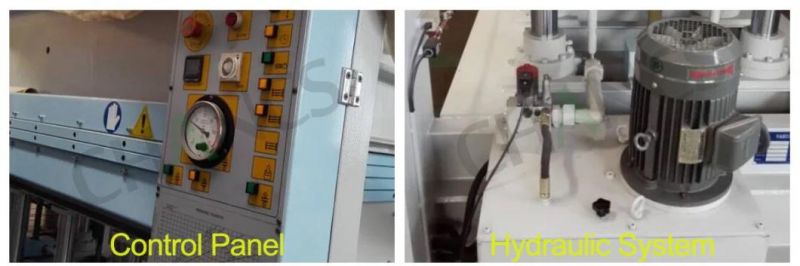

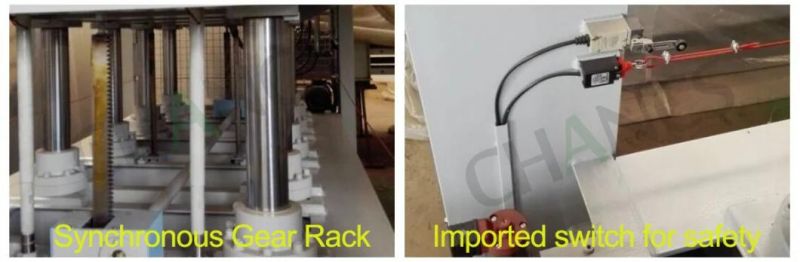

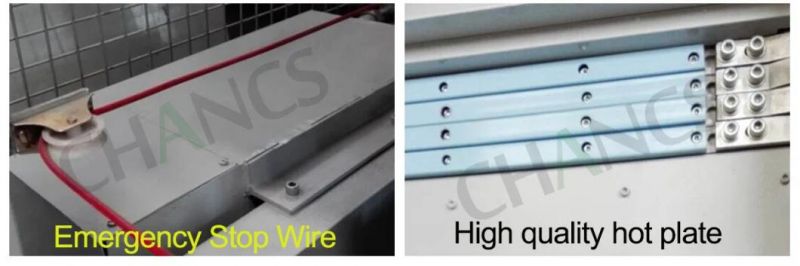

 3.Detailed Images:


4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1.  Q:What's the MOQ?
      R:  One set will be ok.
2.  Q:Provide customized machine Yes or NO?
     R: Yes. We have professional designers and engineers to supply customized machines.
3.  Q:What is payment terms?
     R: 30%T/T in advance, the balance paid before shipment after insepction.
4.  Q:What is warranty time?
     R: One year.
