Mars Gn1200h Automatic Europe Design MDF Board Six Side CNC Boring Drilling and Milling Machine with CE
Hefei Aquila CNC Equipment Co., Ltd.- Structure:Center Hole Grinder
- Layout:Horizontal
- Controlling Mode:CNC
- Automatic Grade:Automatic
- Precision:High Precision
- Certification:CE, ISO
Base Info
- Model NO.:GN1200H
- Energy Saving:Energy Saving
- Warranty:2 Years
- Customized:Customized
- Condition:New
- Size:4800*2700*2000 mm
- Total Power:7.5kw
- Working Voltage:AC380,50Hz
- Workinig Pressure:0.6-0.8MPa
- Y Axis(Drill Left and Right):95m,Min
- V Axis (Side Aligning):60m,Min
- Bottom Drill Box:9(Vertical)
- Upper Vertical Drilling:12
- Cutter Handle Diameter:10mm
- X Axis(Clamp):130m,Min
- Z Axis (Drill Top and Bottom):35m,Min
- Drilling Set Motor Speed:4500 Rpm
- Pressure:0.6-0.8MPa
- Drill Unit Motor Power:2.2kw, 4000rpm
- Net Wiight:3500 Kg
- Transport Package:Plywood Case Package
- Specification:4800*2700*2000 mm
- Trademark:Mars
- Origin:China
- HS Code:8458110090
- Production Capacity:300,Month
Description

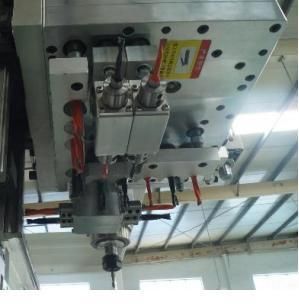

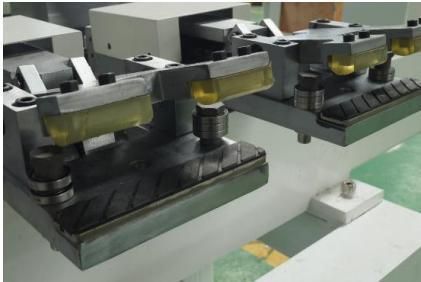

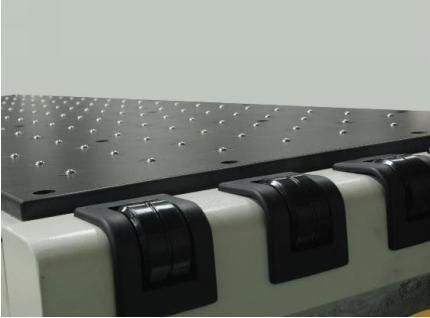

Pneumatic Double Clamp Feeding Device Precision Upper Drilling Bag Set Precision Down Side Drillling Bank Air Floating Feeding Platform

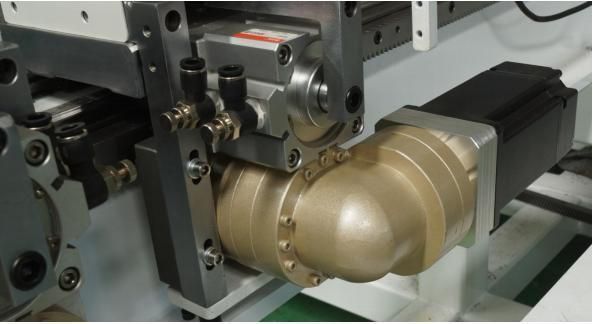

Large Torsion Reducer
Products ParameterWorking Stroke X/Y/A/Z Axis 1250/ 1490/ 80/ 50 mm Max. Positioning Speed X/Y/A/Z Axis 80/ 60/ 30/ 30 m/min Borehole Combination Device Vertical Drills X-axis direction 7 groups, Y-axis direction 9 groups Horizontal Drills 1 left + 1 right + 2 front + 2 rear Drill Unit Motor Power 2.2kw, 4000rpm Engrave Milling Spindle Spindle Collect Er32 Tool Holder Φ10 Spindle Motor Power 2.2kw Spindle Speed 24000rpm Processing Size Range Mini/ Max Sheet Width 50mm/ 1200mm Mini Sheet Length 200mm Max Sheet Thickness 50mm Other Paramter Total Power 7.5kw Working Voltage AC380/50HZ Workinig Pressure 0.6-0.8Mpa Machine Diemsnion 3500*2100*1700mm Application:
It's a powerful drilling machine, can accomplish all five sided holes and slots at one processing.It can completely substitute the traditional panel saw and gang drill, and discard the dependence of traditional punching mode on the technical workers. Combined with professional production design sooftware, it achieves really intelligent producction, with high precision and fast speed.
Certificate
Exhibition
Factory Hall

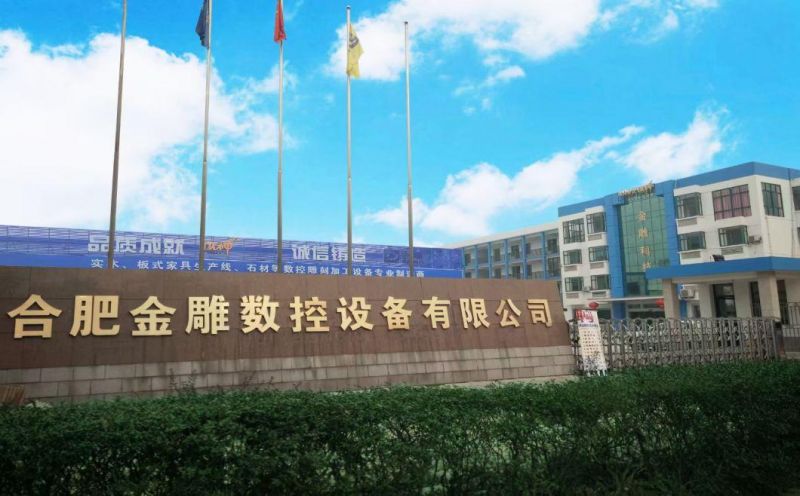

Our Manufaturer
( With 15 years experience of production)
Hefei Aquila CNC Equipment Co., Ltd local in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology. With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc. Our company adheres to the principle of "Customer First" and "Win- win Cooperation". Pursuing excellence and keeping making progress, we devote to developing the landmark brand in the CNC industry. We are searching distributors all over the world. If you have any demands, welcome to contact us.
A: Yes, we have our own R&D team and sales team, We provide you one-stop service.
Q: Do you have CE, ISO13485?
A: Yes, our products are approved by CE, ISO13485
Q: Is OEM &ODM available in your factory?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight
2.T/T: 30% deposit by T/T, 70% balance by T/T before shipment
3.Trade term: EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package, standard export packages
2.All of the productions are inspected carefully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days,It depends on the quantity of order.
Q: What is your Min.order?
A: There's no minimum quantity.
