635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral Cutters

Shandong STX Machinery Trade Co., Ltd.
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical
  • Motor Power：＞10Kw
  • Spindle Speed：＞5000rpm
  • Process Type：Heavy Processing
  • Certification：CE

Base Info

  • Model NO.：MB2063D
  • Knife Type：Spiral Cutter
  • Machine：Heavy Duty
  • Cutter Side：30 X 12 X 1.5mm
  • Voltage：Customized
  • Max. Working Width：635mm
  • Max. Working Height：200mm
  • Transport Package：Wood Case
  • Trademark：STX
  • Origin：China
  • HS Code：846592
  • Production Capacity：2000 Sets,Year

Description

Motor Power

Top spindle power

11kW

Bottom spindle power

7.5kW

Feeding motor power

2.2kW

Elevating motor power

0.37kW

Total power

21.07kW

Overall diamention

2700*1270*1680mm

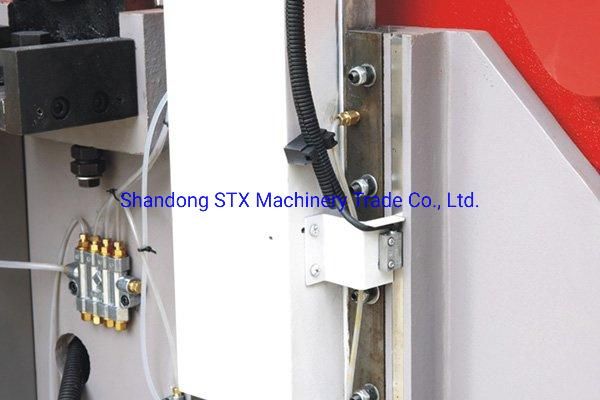

Detailed images635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral CuttersCentralized lubrication system

The configuration set to the cent ralized lubrication system, facilitate the lifting system maintenance lubrication.

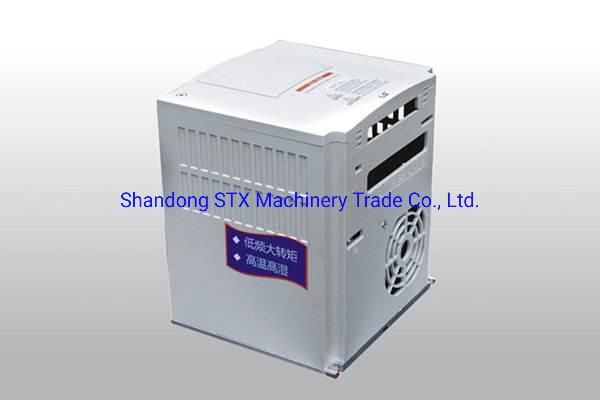

Feeding frequency inverter

Digital display, easy operation, energy saving,reduction of mechanical transmission wear.

635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral Cutters635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral CuttersThickness Quick set

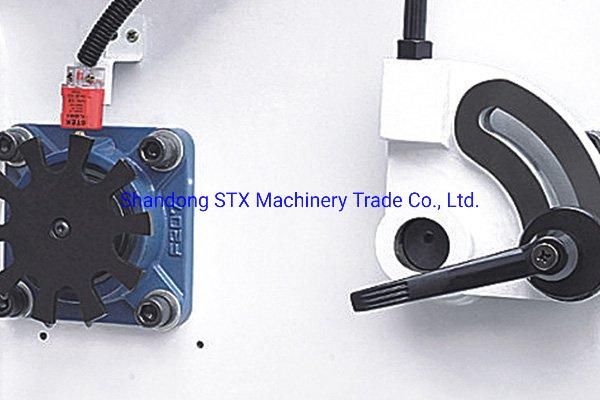

Simply preset thickness timber placed at the microswitch, you can do simple thickness settings

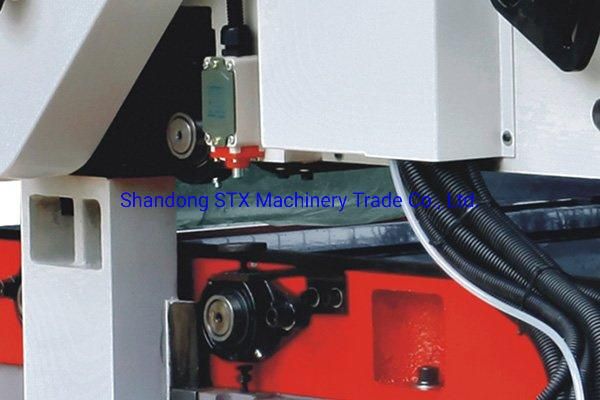

Gate magnetic induction switch

The thickness of the display gate magnetic sensors,accuracy is much higher than conventional proximity sensor.

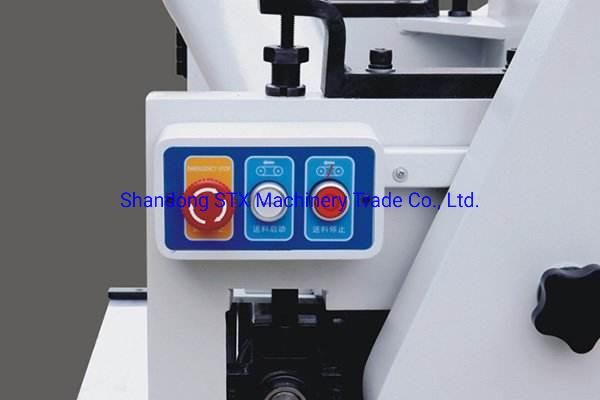

635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral Cutters635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral CuttersRear operation box

Machine emergency stop or abnormal reactions only feed stop and start.

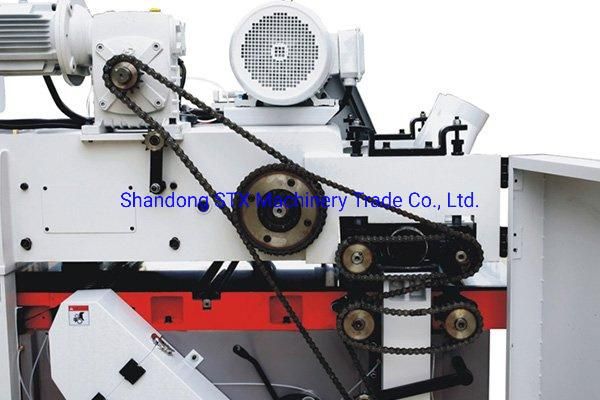

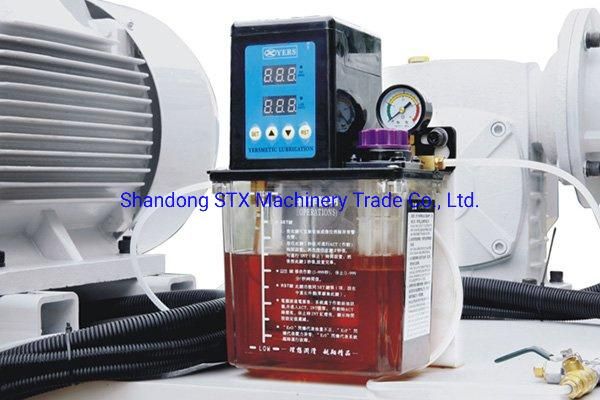

Feeding device is with clutch, which can prevent overload and give a safe operation.635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral Cutters635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral Cutters Auto grease device keeps the machine always lubricated during working.Alarm detector: When overload or stripping occurs with feeding chain, the alarm switch will give out signal alarm.635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral Cutters635mm Solid Wood Panel Double Side Surface Planer Thicknesser with Spiral CuttersThe product is provided with imported digital display device,which can be operated directly to processing thickness from operating panel with the accuracy up to 0.05mm; besides,upper and lower planning motor is provided with current meter for visual observing if it is overloaded while working.

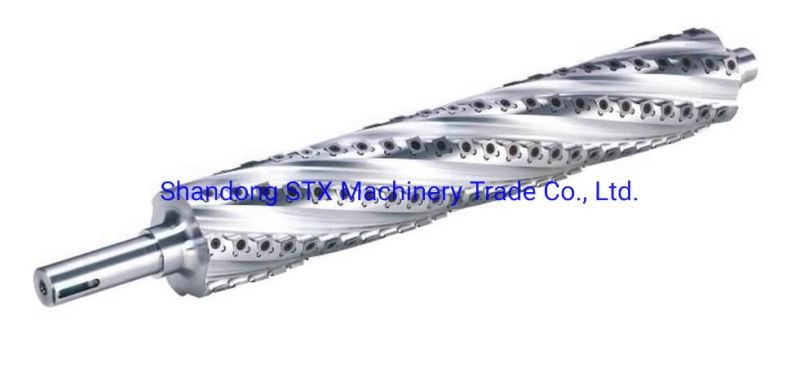

Screw arbor (Heavy Duty)

Arbor screw precision machining
Provide fine planing surfacing, and no noise
Arbor screw assembly removable tungsten carbide blade

DP-2063: Blade size  (30×12×1.5)×90pcs
