• Model NO.：MJ3300
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Transport Package：Plywood Box
• Specification：2700*2800*2000mm
• Trademark：QDZD
• Origin：China
• HS Code：84659100
• Production Capacity：15 Sets,Month

Model

MJ2700

MJ3300

MJ3800

Sawing length

2700mm

3300mm

3800mm

Sawing thickness

85/100/120mm

85/100/120mm

85/100/120mm

Dia. Of main saw blade

355/400/460mm

355/400/460mm

355/400/460mm

Axis dia. of main saw blade

30/60mm

30/60mm

30/60mm

Rotate speed of main saw blade

3950/4500 rpm

3950/4500 rpm

3950/4500 rpm

Dia. of grooving saw blade

180mm

180mm

180mm

Axis Dia. of grooving saw blade

25.4/30mm

25.4/30mm

25.4/30mm

-

Rotate speed of grooving saw blade

6300 rpm

6300 rpm

6300 rpm

Saw carriage forward speed

0-120 m/min

0-120 m/min

0-120 m/min

Saw carriage back speed

60-120 m/min

60-120 m/min

60-120 m/min

Head saw motor

7.5/11 kw

7.5/11 kw

7.5/11 kw

Grooving saw motor

1.5kw

1.5kw

1.5kw

Saw carriage drive motor

2.2kw

2.2kw

2.2kw

Automatic feeding motor

1.2kw

2kw

2kw

Pusher motor

2kw

2kw

2kw

High pressure blower motor

2.2kw

2.2kw

2.2kw

Total power

17/21kw

21/27kw

21/27kw

-

Automatic feeding speed

0-120 m/min

0-120 m/min

0-120 m/min

Operation pressure

5-7kg/cm

5-7kg/cm

5-7kg/cm

Workbench height

950mm

950mm

950mm

Net weight

5000kg

6000kg

7000kg

Dimensions (L*W*H)

5500*5600*1700mm

6100*6200*1700mm

6700*6800*1700mm

Air floating platform under pressure beam, avoiding board scratching and assuring smoother board

With latest design mechanical clip

Saw height independent lifting system

MITSUBISHI servo motor Taiwan LIMING reducer

Taiwan rack and pinion

Imported electrical parts

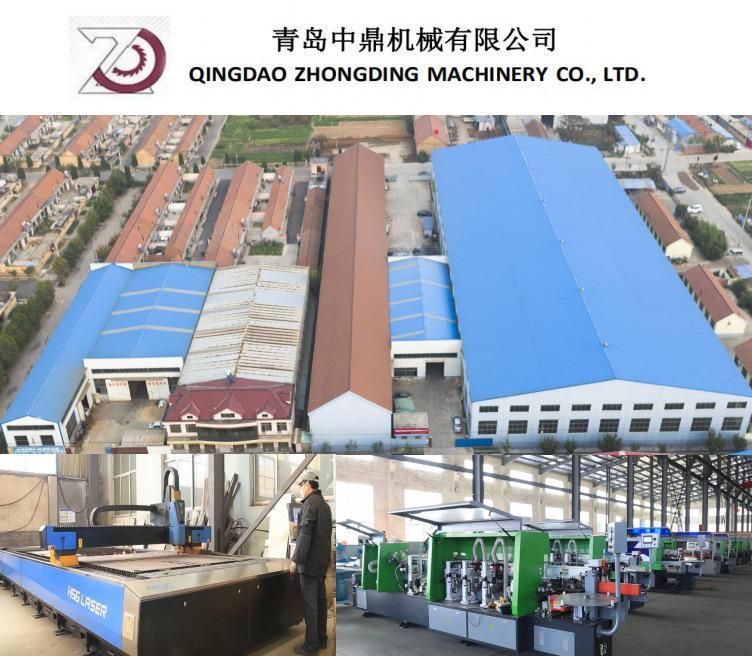

Our Factory View:
