• Model NO.：JCF1530L ATC
• Customized：Customized
• Condition：New
• Color：Customized
• Model：3D 4 Axis Wood Styrofoam EPS Foam Cutting CNC Rout
• Applications：Wood, EPS Foam, Styrofoam, Polystyrene
• Flat Working Size：1500*3000*500mm*180 Degree
• Rotary Working Size：1000mm Diameter, 2500mm Length
• Spindle Power：6kw ,9kw
• Driving：Servo Motor and Driver
• Inverter：Delta
• Control System：Ncstudio
• Oil System：Automatic
• Option 1：Automatic Tool Changer
• Option 2：Rotating Spindle
• Option 3：5 Axis Rotary System
• Option 4：3D Scanner
• Option 5：Hot Wire Cutting Machine
• Voltage：AC380V, 3phase, 50-60Hz
• Transport Package：Protected by Film and Fastened by Metal Wire
• Specification：4 Axis
• Trademark：CHAODA
• Origin：Shandong, China
• HS Code：8465990000
• Production Capacity：100 Sets ,Month

Basic Info.

Model NO. JCF1530L ATC Customized Customized Condition New Color Customized Model 3D 4 Axis Wood Styrofoam EPS Foam Cutting CNC Rout Applications Wood, EPS Foam, Styrofoam, Polystyrene Flat Working Size 1500*3000*500mm*180 Degree Rotary Working Size 1000mm Diameter, 2500mm Length Spindle Power 6kw /9kw Driving Servo Motor and Driver Inverter Delta Control System Ncstudio Oil System Automatic Option 1 Automatic Tool Changer Option 2 Rotating Spindle Option 3 5 Axis Rotary System Option 4 3D Scanner Option 5 Hot Wire Cutting Machine Voltage AC380V, 3phase, 50-60Hz Transport Package Protected by Film and Fastened by Metal Wire Specification 4 Axis Trademark CHAODA Origin Shandong, China HS Code 8465990000 Production Capacity 100 Sets /Month

Product Description

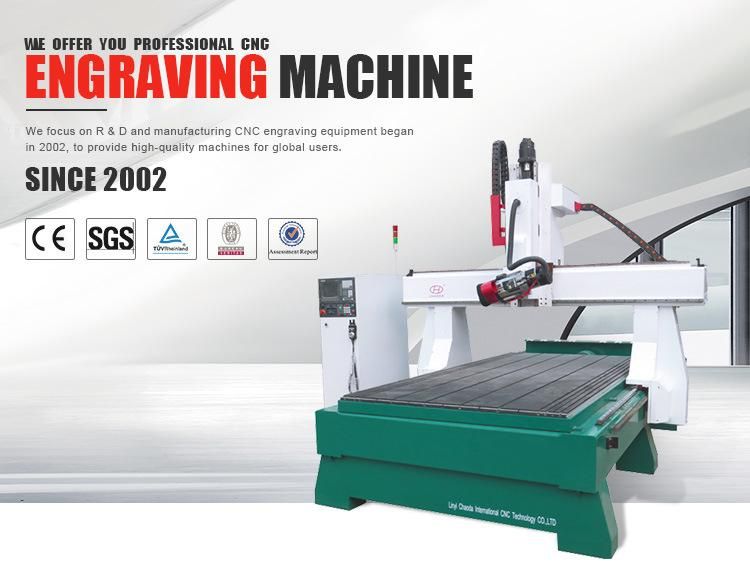

3D 4 Axis Wood Styrofoam EPS Foam Cutting CNC Router Machine

• All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability.

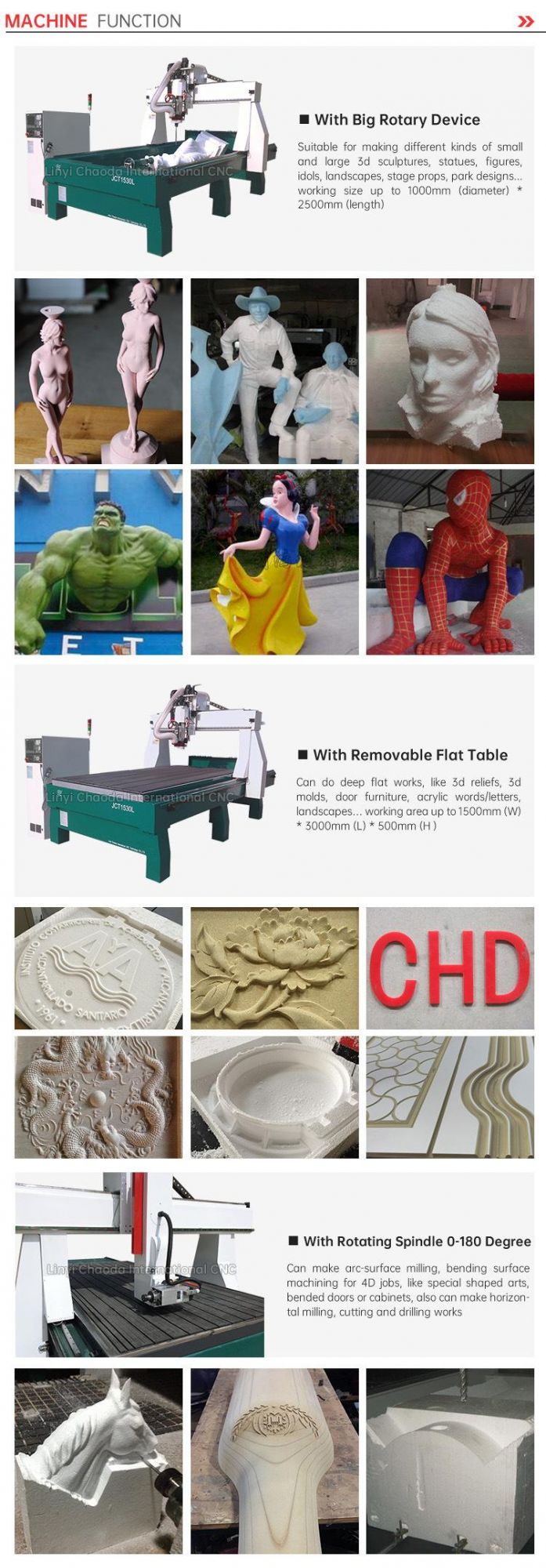

• Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc.
• Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc.
• Spindle rotate from 0 to 180 degree, can make arc-surface milling, bending surface machining for 4D jobs, like special shaped arts, bended doors or cabinets, also can make horizontal milling, cutting and drilling works.
• With linear type automatic tool changer, spindle change tools automatically,no need manual work,keep good working accuracy and increased working speed.

Model No.	JCF1530L ATC
Flat working size	1500*3000*500mm*180 degree
Rotary working size	1000mm diameter, 2500mm length
Lathe bed structure	T-extrusion, Thick Steel frame
Table	Removable, T-slot with clamps
X structure	Rack and pinion, linear square rail
Y structure	Rack and pinion, linear square rail
Z structure	Ball screw, linear square rail
Reposition accuracy	±0.02mm
Max. travelling speed	0-60000mm/min
Max. working speed	0-30000mm/min
Spindle	9kw air cooling ATC spindle
Tool magazine	Linear type auto tool changer, 8 tools ability
Driving system	Japan YASKAWA servo motor and driver
Operating system	4 axis Ncstudio with Screen
Operation language	G code
Working voltage	AC380V, 3-phase, 50Hz
Working materials	Eps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc.

1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
