• Model NO.：CK2030
• Trademark：CHANKE
• Origin：Shandong China
• HS Code：8465990000
• Production Capacity：500

Basic Info.

Model NO. CK2030 Trademark CHANKE Origin Shandong China HS Code 8465990000 Production Capacity 500

Product Description

Product Description
1.This is 2 heads with 12 spindles wood cnc router
2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
4.Has the 4th rotary which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/ Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure
7. Adopting stepper motor and driver, can be optional China or Japanese servo motors

Configuration:

1.Welded steel bed structure 4mm

2.Taiwan HIWIN square guide rails for three axises, Rack transmission for X and Y axis, Ball screw for Z axis

3.2.2KW water cooling spindle with water pump

4." BEST" Inveter

5. NC studio control system

6. 1 head 6 spindles . total 2 head 12 spindles

7.Oil lubrating system

8. leadshine H2-758 hybrid servo motor

9. leadshine driver


Specification

Model	CK1325 CNC router
X,Y,Z Working Area	1300*2500*300mm/500mm
X,Y,Z Traveling  Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning  Positioning Accuracy	±0.02mm
Lathe Structure	Thick wall square tubes welding bed
X Structure	Taiwan HIWIN square guide rails
Y Structure	Taiwan HIWIN square guide rails
Z Structure	Taiwan  HIWIN square guide rails
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle	2.2KW water cooling spindle
Spindle Speed	0-24000RPM
Working Mode	stepper motor and driver
Working Voltage	380V/3 phase 50HZ
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	NC studio contol system or DSP A18 /MARCH 3
Interface	USB
X,Y Working Delicacy	<0.01mm
Software	Type3/Ucancam/JDpaint/artcam software
Running circumstance	Temperature: 0°C~45°CRelative humidity: 30%~75%
Waranty	One year
Delivery time	10-20 working days

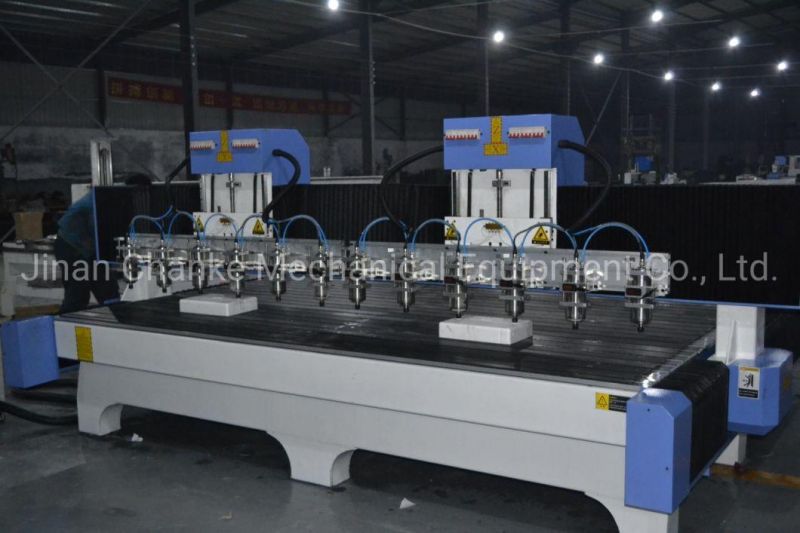

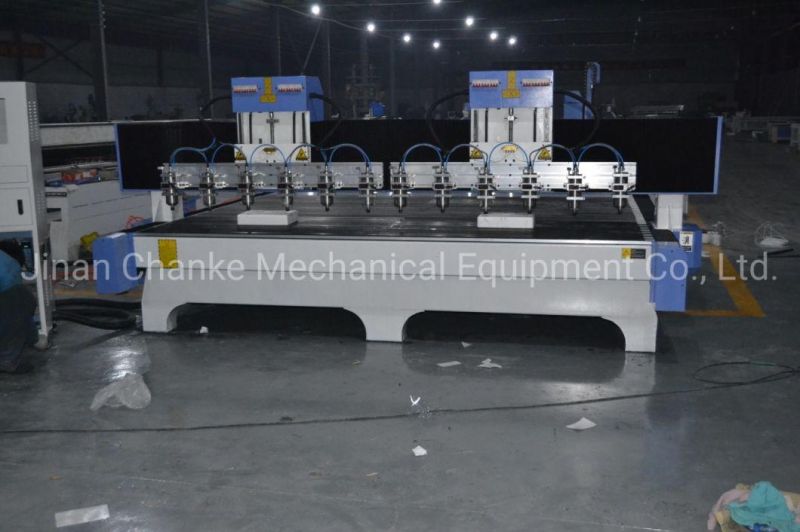

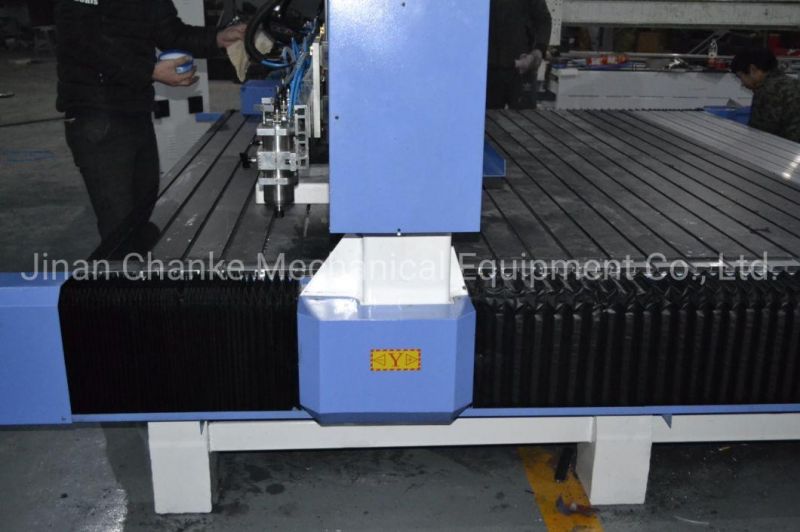

Machine photos:

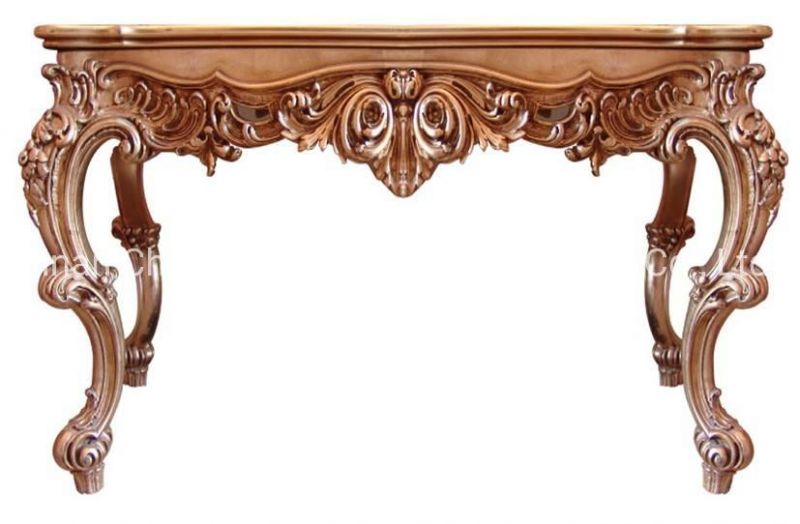

samples :
