• Model NO.：E300
• Specification：Working Area: 1300*2500*200mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

BasicX/Y/Z Axis Working Area1230*2450*200mmMachine Size3700*3100*1900mmWorking TableWhole line frame structure, firm and not deformation, vacuum adsorption table plus automatic positioningTable StructureDouble vacuum chamber absorption tableBody StructureHeavy-duty thicken steel structure w/ temperingMainControl SystemTaiwan Syntec control systemDrive SystemJapan Yaskawa servo motorSpindle Motor Power6KW+4.5KW air cooling spindle; 0 ~ 24000 rpm/minDrilling HeadItaly HSD 5+4 gang drillOthersLubrication SystemAutomaticTransmissionXY axis rack and pinion, Z axis ball screwGuide RailTaiwan PMI/Hiwin rectangular linear rail(Y 30mm, X/Z 25mm)InverterZoncn/Fuling brandLimit switchJapan OmronVacuum Pump1*5.5KW double leaf vacuum pumpMax Travelling Speed50m/minMax Processing Speed30m/minWorking Accuracy±0.02mmRe-positioning Accuracy±0.05mmDictate FormatG-Code / HPGLWorking VoltageAC380V/ 3PH/ 50HZSupport SoftwareProfessional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)OptionLoading and unloading platform, scanning gun, automatic coding machine, dust collector

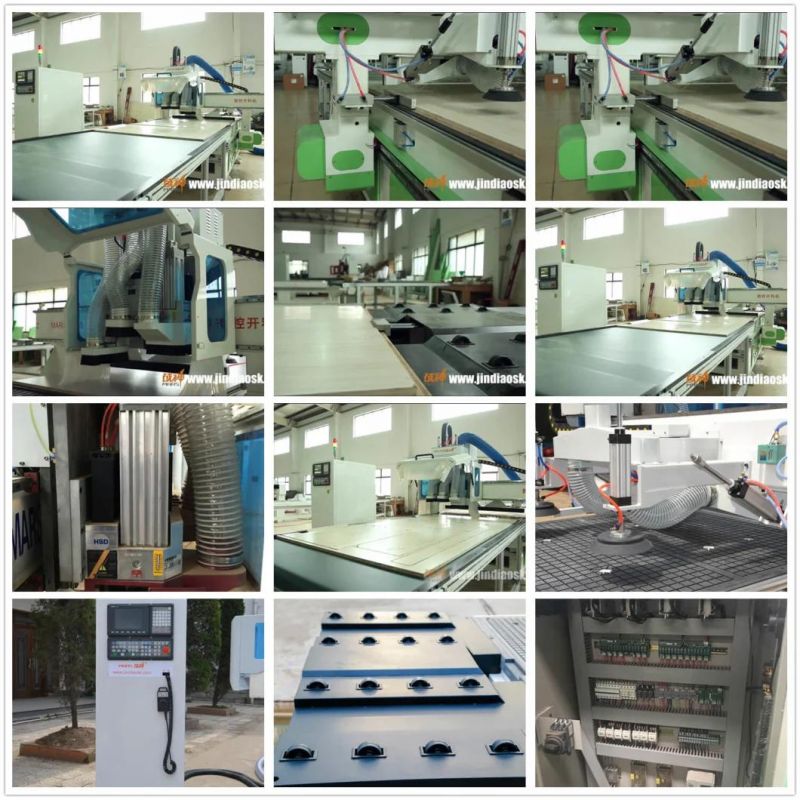

Accessories:




Performance Features:

1	Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver
2	Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation
3	Vacuum table, high adsorption capacity, able to adsorb materials of different sizes
4	Taiwan-made guide rail and ball screw, high precision, long service life, good stability
5	Taiwan Syntec control system, easy to operation,fully support automatic production. It can automatically accomplish multi-layer 3D job, cutting, engraving, milling. Offline operation can be realized.
6	Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration

Samples:

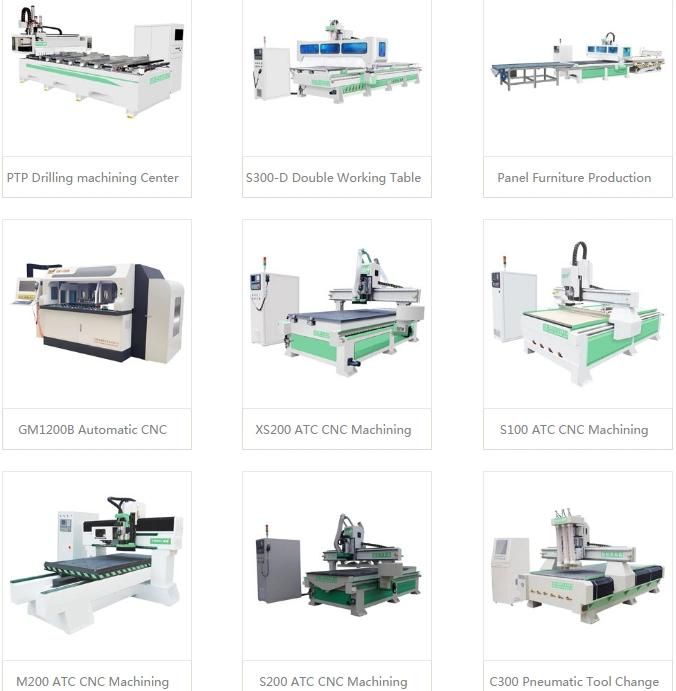

Similar Products:
