• Model NO.：BX72R, WC72R Wood Chipper
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Use：Chipping Wood
• Folded Hopper：Yes
• Chipping Capacity：7 Inches(178mm)
• Transport Package：Iron Steel Crate
• Specification：1700*1130*1350mm
• Trademark：WFMC
• Origin：Weifang
• HS Code：84368000
• Production Capacity：520 Units,Month

Basic Info.

Model NO. BX72R, WC72R Wood Chipper Certification CE, ISO Customized Customized Condition New Color Customized Use Chipping Wood Folded Hopper Yes Chipping Capacity 7 Inches(178mm) Transport Package Iron Steel Crate Specification 1700*1130*1350mm Trademark WFMC Origin Weifang HS Code 84368000 Production Capacity 520 Units/Month

Product Description

Features:

1. BX72R wood chipper is a 3 point hitch wood chipper with a self-contained hydraulic oil tank, pump, pulley and belt system. No need for any hydraulic outputs from the tractor.

2. With 360-degree discharge chute rotation. The wood chips can be discharged at any angle.

3. This machine needs a 40 - 100 HP tractor, so it can be worked well.

Description:

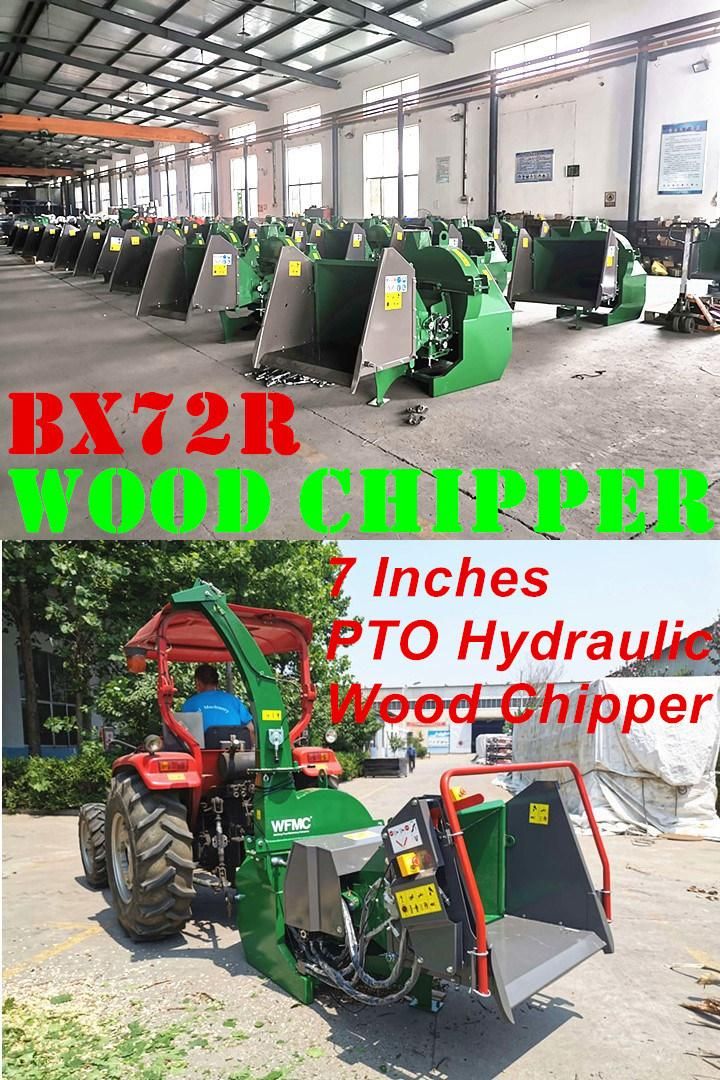

BX72R is a Heavy Duty PTO-driven Wood Chipper (tree shredder) with a self-contained hydraulic infeed system. This powerful machine with its Tractor Independent Hydraulic Motor & Controls was designed for professional wood processing and reliably chips wood up to 7 inches in diameter.

The compact BX72R is suitable for your tractors between 40-100 HP, utilizing your CAT I or CAT II 3 Point Hitch. The fully assembled machine weighs 1,235 lbs. and has a 29″ (diameter) flywheel (rotor) which weighs 216 lbs.

The Hydraulic powered infeed system of the BX72R pulls the wood into the tree shredder by two feed rollers. The safety stop bar clears wood jams when switched into "reverse" gear. The adjustable speed helps to properly apply the tree shredder's performance to wood type and size. Your tractor's performance dictates the thickness of the material and the volume of material you will be able to process.

The large opening of the input chute (30" x 42") allows for larger branches with leaves to be fed into the chipper without causing jams. You control speed and volume with the safety handle.

BX72R wood chipper complies with all tree shredder safety regulations and are CE tested following the 2006/42/EC machine directives.





Working Effect:


Certifications:



Specifications:


Model	BX72R
Drive System	Direct drive, PTO shaft with shear bolt
Power requirement for max. Cap.	60~70 HP(45-52 kW)
HP Range	40-100 HP(30-75 kW)
Recommend Hydraulic Flow	3-6 GPM(13-27 lpm)
Chipping capacity	7''(178mm)
Chipping Housing Opening	7"x12"(178x310mm)
Rotor Size	29''(diameter 740mm)
Rotor Weight	210lbs.(95kg)
No. of cutting knife	4
No. of the bed knife	1
Cutting Knife Length	240mm
Knife material	Hardened tool steel, Durable Chromium CR-12
In-feeding System	Hydraulic feed
Hydraulic system control	Stop-Reverse-Forward-Stop
Feeding System Power	Self Contained PTO Power Hydraulic Oil Tank, Pulley, Belt and Pump System
Hydraulic Oil Tank Volume	24L
Feeding System Feed	Dual Horizontal Hydraulic motors
Mounting System	3 Point Hitch Cat I(iMatch & Quick Hitch compatible)
Machine Structure Net Weight	1245lbs.(560kg)
Dimensions(LxWxH)	108" x 64" x 90" Open 83" x 56" x 90" Closed 275cm x 163cm x 228cm Open 211cm x 143cm x 228cm Closed
Discharge hood rotation	360°
Discharge Hood Height	90"(2286mm)
Rated RPM	540-1000
Standard Features	Self Contained PTO Power Pack Dual Hydraulic Feed Roller System Easy Start-no fuss large diameter feed start Forward/Reverse Emergency Stop Feed Roller Control Bar 360°Rotating Discharge chute Folding Spring Assist/Latching Feed Table Turnbuckle Lift Feed Roller(for maintenance) Feed Roller Flow Control (non Intellifeed) Multi-Position, Locking Discharge Chute Four-position Rotor Lock Reversible Rotor Blades Reversible Ledger Knife Positive Adjust Ledger Knife Dual Blade Twig Breaker

FAQ:


Why choose our company to buy a wood chipper?	1. As manufacturer, large product range have excellent quality and competitive price. 2.1-year warranty is visible and quick good sales service. All requirements from our customers could be answered at first time during working time. Most importantly, 7 x 16 service could be provided to clients. Whatever it is sale offers advice or after-sales technical support. This is impossible for other companies here. 3. Strictly testing and checking by our QC department before packaging and shipping. 4. More than 10 years experience focusing on wood chipping machinery and 8 years exporting experience. 5. Doing OEM for many famous brands. 6. Quick delivery time When you place an order, production will be arranged soon. Order production will be finished within 20 - 30 workdays. This means you will receive the goods soon and prepare to sell and make more profit than your competitors in the market.
How to order?	[Step 1] Send a detailed inquiry by email. [Step 2] We offer you quotes. [Step 3] Confirm delivery time/freight operation. [Step 4] Arrange order production after deposit received [Step 5] Confirm consignee and notify party information. [Step 6] Book ship arrange shipping, after loading vessel, balance payment receipt of B/L copy. [Step 7] Commercial invoice, packing list and B/L sent to you after receipt of balance payment. [Step 8] All products received and services.
What are your trade terms?	FOB, CIF, CFR, CNF, DDU, DDP.
What are your payment terms?	(T/T) Telegraphic Transfer or Telex Transfer(Bank Transfer) 30% deposit, and balance the rest after receiving the Bill of Lading copy.
How should we visit you and your factory?	First of all, welcome you or any appointed agent to visit and inspect our factory. You can fly to Qingdao or Beijing airport, then come from Qingdao railway station or Beijingnan railway station to Weifang city. (55 minutes -3h30minutes) We can pick up you at the Weifang railway station. Please kindly let us know your schedule in detail, so we can arrange everything for you.
How long is your lead time or delivery date?	Usually, the lead time is about 20 days for smaller orders. And 30 days for big orders. The delivery date will be confirmed with Shipping Forwarder before order production is finished.
Can your company accept OEM or ODM production?	Yes. Now some famous companies from Europe and America are working with us by OEM and ODM means.
Can I order samples to test the quality?	Yes, of course. Quality could be evaluated with sample scale or trial order before placing batch orders.
