• Model NO.：YFK series
• HS Code：8474802000
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. YFK series HS Code 8474802000 Production Capacity 20 Sets Per Month

Product Description

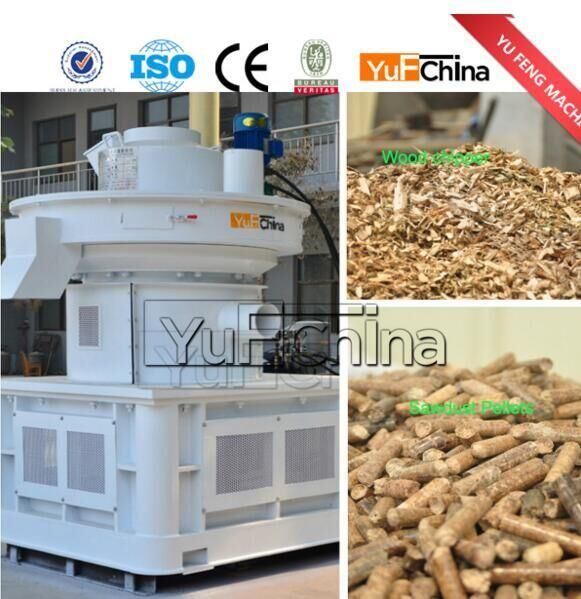

 Best Selling Biomass Pellet Processing Mill Application:
Wood pellet making line is the process of making waste materials into solid fuel for burning purposes.It is widely used for the recycling usage of wastes and tailings in biomass fuel plant,wood processing plant ,fertilizer plant,chemical factory,foctory,foodstuffs factory and brewery.



Raw material:

Yufchina biomass wood pellet mill is able to produce cylindrical pellet, and thus be widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc.

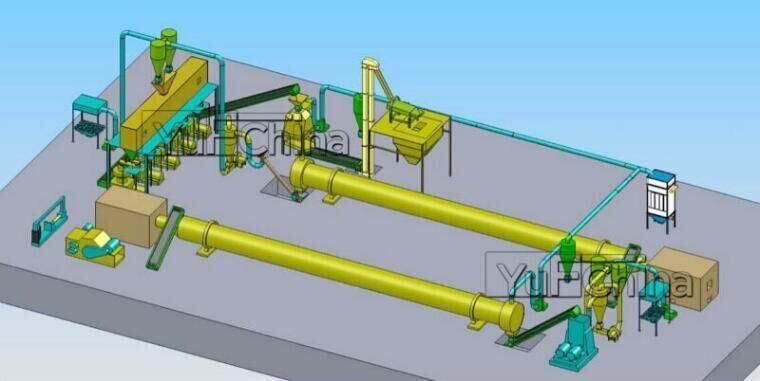

Biomass pellet production line flow:

1.Chipping process---------Wood log need to be chipped by wood chipper

2.Drying process -----------Wood chips need dried by drum dryer ,if chips are dry ,We don't need dryer.

3.Further crushing----------The dried wood chips should be crushed by the hammer mill to 1-5mm ,prepared for pellet process.

4.Wood pellet production line processing---------Sawdust go to the pellet machine make pellet directly or big silo which divide material to each pellet machine when have machine more than ones .

5.Cooling process------------30-60mins cooling by nature ,or cooled bywood pellet cooler.

6.Packing process------------You can choose packed by small bag or ton bag .We have packing machine.

 Technical parameters:


Model	Power  (kw)	Pellet size  (mm)	Inner dia (mm)	Production (t/h)	Dimension (mm)	Weight (t)
YFK450	55	Φ4-Φ12	450	0.3-1	2200x900x1600	3
YFK550	75	Φ4-Φ12	550	0.7-1	2300x1000x1780	5
YFK560	90	Φ4-Φ12	560	1-1.5	2600x1300x2300	6.3
YFK580	160	Φ4-Φ12	580	1.5-2	2900x1300x2400	7.5
YFK680	160	Φ4-Φ12	680	2-2.5	3200x1400x2400	8.5
YFK850	220	Φ4-Φ12	850	2-3	3750x1650x3250	12.6
YFK880	315	Φ4-Φ12	880	3-4	4300x1900x3600	14.5

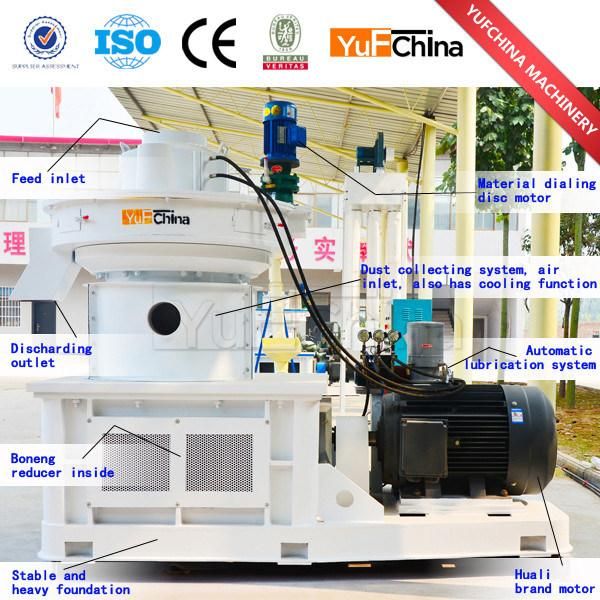

Features:

1. Vertical die,feeding vertically; No arching of raw materials, easy for heating dissipation.
2. Die fixed,rollers rotating, materials centrifugal, evenly distributed around.
3. Doulble-layer dies, up and down dual-use, high capacity,saving energy.
4. Main parts adopt high alloy wearable materials, and double lifetime.

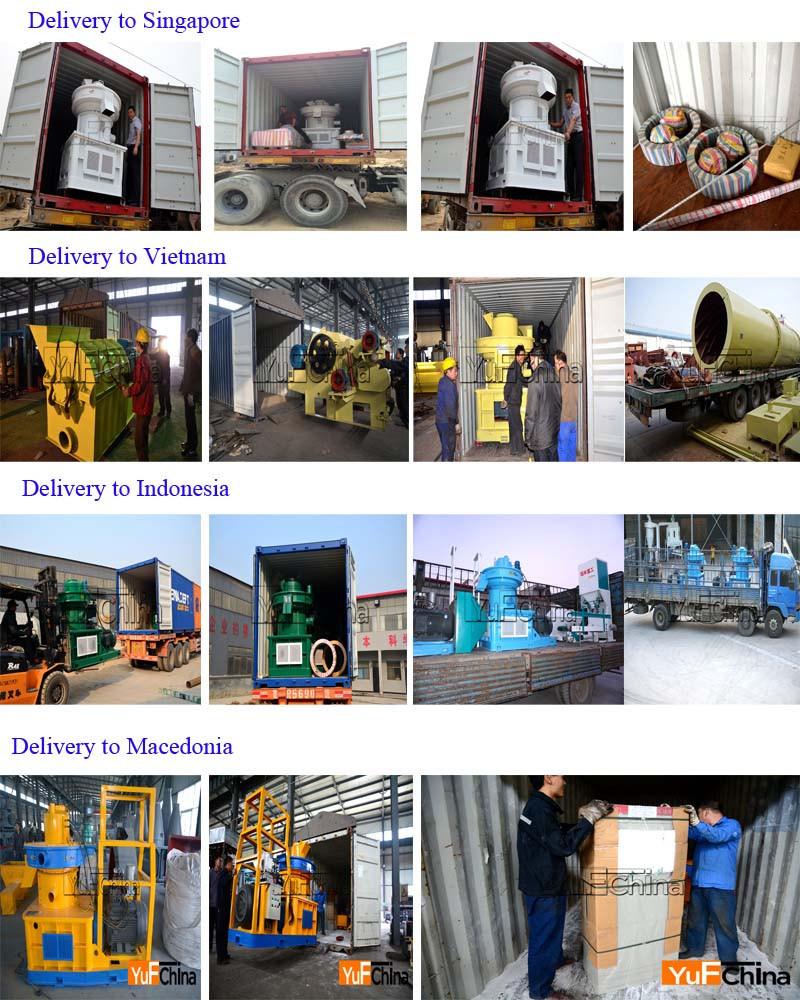

Delivery photos:





After-sale service:


1.Provide engineer to wok site guiding install, debugging and commissioning.
2.Test equipment after installation, training operators for free, remind notice in operating.
3.Regularly return visit to the customers.
4.Response customer's qustions within 1 working day, give effective solutions within 3 working
days, go into action with 5 working day.
