• Model NO.：CNC2030-4
• Motor：57 Series Step Motor
• Reset Position Accuracy：0.05mm
• Spindle Motor Speed：0-12000rpm
• Xyz Effective Stroke：200*300*55mm
• Transfer Method：T12*2 Screw
• Power：300W
• Control System：Mach3
• Machinable Materials：PVC,Wood,Plastic,Jade(Customized)etc
• Transport Package：Sea Worthy Export Package
• Specification：56*45.5*43cm
• Trademark：E-cut
• Origin：China
• HS Code：8442309000
• Production Capacity：5000PCS,Week

Basic Info.

Model NO. CNC2030-4 Motor 57 Series Step Motor Reset Position Accuracy 0.05mm Spindle Motor Speed 0-12000rpm Xyz Effective Stroke 200*300*55mm Transfer Method T12*2 Screw Power 300W Control System Mach3 Machinable Materials PVC/Wood,Plastic,Jade(Customized)etc Transport Package Sea Worthy Export Package Specification 56*45.5*43cm Trademark E-cut Origin China HS Code 8442309000 Production Capacity 5000PCS/Week

Product Description

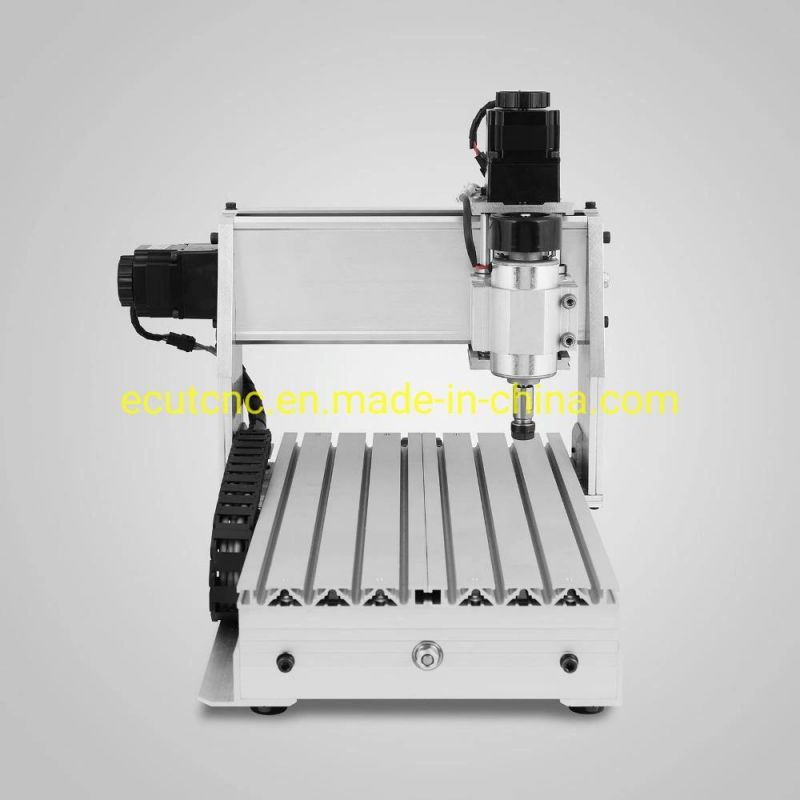

4 Axis CNC Router Engraver Machine 200X300MM CNC 2030 Wood Engraving Machine The CNC3020 USB engraving machine is ideal for industrial, research, art and design, teaching, and hobbyist purposes.
The CNC3020 USB machine is a compact desktop CNC machine that lets you do engraving work at the office or in your own home.
The 3020 is a miniature version of a carving machine that can be connected to your computer like a printer or scanner anytime, anywhere, so that you can realize your design using nonmetal materials or simple PCB/CNC.

Product detail:
 2030 triaxial engraving machine part parameters:

• Effective working travel: 200(X)mm*300(Y)mm*50(Z)mm
• Shape dimension: 550x400*350mm
• Max.workpiece dimension: 200mm*300mm<65mm
• Work table dimension: 200mm*300mm*15mm
• Carving deepth: 55mm
• Frame materials: aluminum alloy 6063 and 6061
• Driving units X axis: 1204 trapezoidal screws
• Driving units Y axis: 1204 trapezoidal screws
• Driving units Z axis: 1204 trapezoidal screws
• Sliding units X axis: Dia.13mm chrome plate shafts
• Sliding units Yaxis: Dia.16mm chrome plate shafts
• Sliding units Z axis: Dia.12mm chrome plate shafts
• Stepping motor type: 57 two-phase 1.45A-2A
• Spindle motor: 200w dc motor,NEW
• Principal axis collet: ER11/3.175 mm
• Spindle speed: 300 ~ 8000rpm/min (PWM stepless speed regulation)
• Repeat accuracy: 0.05mm
• Empty line speed: 0-2500mm/min (16 subdivided driving down)
• Spindle precision: radial beat acuities 0.03 mm
• Control unit: triaxial one-piece drive + ring variable power + PWM speed
• Carving Instructions: G code/TAB files/nc file/NCC files
• Communication interface: through parallel or USB connection with computer
• Software environment:all
• Carving speed: 0-2000mm/min (different materials differ)
• Machine weight: 24KG

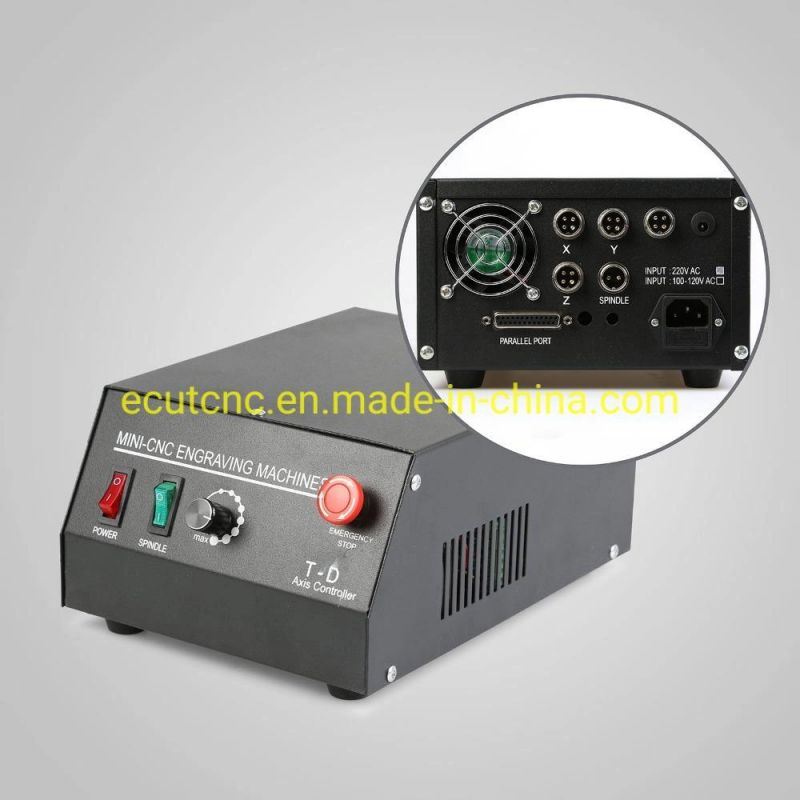

• Control box parameters:
• Operating Voltage:AC110V or AC220V  50/60Hz(we also stock USA.UK.EU.AU.plugs and 110V-240V power version for the country all over the world.)
• Control unit:2.5A stepping motor driver plus adjustable spindle speed controller
• Computer connection:on board palrallel port, USB
• Command code:G code
• Acceptable software: only CNCUSB
• Protection:Emergency stop button
•

Product package and shipping

Certification:

 FAQ :





1. About us
As a leading company in manufactory and exporting business. We are specialized incutting plotter ,stone engraving machine, heat press machine, laser machines and so on. Our factory locate on Hefei city, Anhui, China. Welcome to visit our company.



2. Payment
We accept L/C ,T/T Bank transfer, Paypal ,Western union as payment.



3. MOQ
We do not require MOQ ,small order and sample order is most welcome here.



4. How can I buy
Send your requirement with item or model no. quantity you need , your shipping address to our sales team. We will reply you within 12 hours with quotaiton details .

5. Delivery time
A:Generally it is 1-5days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

6. Aftersale Service
A: 24 hours Online service and technical support within warranty time.
    Free new spare parts itself instead of broken parts if you receive the product firstly.



7. How about the warranty
A: We can supply 1 years warranty.



8: Refund Policy
A: Returns accepted if product not as described, buyer pays return shipping fee. or keep the product & agree refund with seller.
