• Model NO.：WV2300A-2,A-2Z
• Work Mode：Full Automatic
• Controlling Mode：Button
• Automatic Grade：Automatic
• Certification：ISO
• Transport Package：Plastic Bags
• Specification：5300*1800*1800mm
• Trademark：HZH
• Origin：China
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WV2300A-2/A-2Z Work Mode Full Automatic Controlling Mode Button Automatic Grade Automatic Certification ISO Transport Package Plastic Bags Specification 5300*1800*1800mm Trademark HZH Origin China Production Capacity 5 Sets/Month

Product Description

Model	WV2300A-1	WV2300A-1Z(Full Automatic)
Overall dimensions	5300×1800×1800mm	5300×1800×1800mm
Worktable size	2300×1100mm	2300×1100mm
Max Workpiece size	2150×1000mm	2150×1000mm
Total power	23 Kw	23 Kw
Vacuum	-0.1Mpa	-0.1Mpa
Weight	1300kg	1300kg

Function

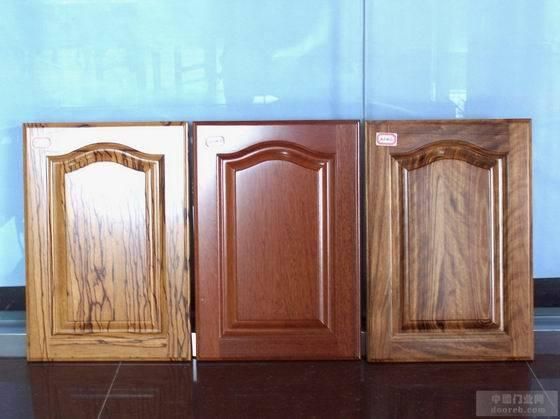

It can be used to cover PVC on the surface of the craft compound door, furniture, cabinet and sound box and to cover veneer and thermal transfer membrane on single side of the door panel and furniture with the silicon membrane provided by our company.
WV2300A-1Z is fully automatic model compared with WV2300A-1.

Characteristics
1. Stainless heating elements can heat evenly and improve the efficiency.
2. Double layer thermal preservation and full sealing design can save energy.
3. Special steel plate worktable is proof against high temperature and corrosion.
4. Vacuum pump of high quality is efficient, stable and durable.
5. Advanced digital technology can make sure of high level of automation and easy operation.
6. All kinds of products can meet different clients' needs.
