Mars Xs200 Disc Tool Change CNC Machinery for Carbinet and Doors
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Size of Equipment：3700*3100*1900mm
- Net. Weight：3000kgs
Base Info
- Model NO.：XS200
- Control System：Syntec System+Handwheel
- Spindle：9kw Air Cooling Spindle
- Drive System：Syntec Bus Servo
- Transport Package：Plywood Boxes
- Specification：1300*2500mm
- Trademark：Mars
- Origin：China
- HS Code：84659100
- Production Capacity：300sets,Month
Description
Basic Info.
Model NO. XS200 Control System Syntec System+Handwheel Spindle 9kw Air Cooling Spindle Drive System Syntec Bus Servo Transport Package Plywood Boxes Specification 1300*2500mm Trademark Mars Origin China HS Code 84659100 Production Capacity 300sets/MonthProduct Description

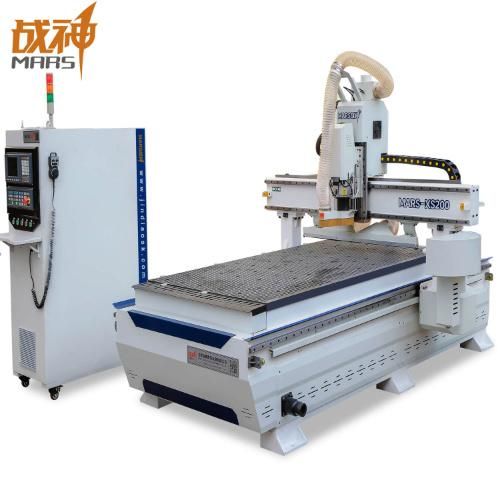

XS200 Disc Tool Change CNC Machining Center
1,Product Parameters| Model No. | MARS-XS200 |
| Machining Size | 1300*2500mm |
| Travelling Speed (X/Y/Z) | 80*80*30m/min |
| Max.Machining Speed | 20m/min |
| Main Spindle Power | 9KW Air cooling Tool Change Spindle |
| Tool Magazin | Disc type servo tool magazine (8/12/16pcs optional) |
| Max.Rotating Speed | 0-24000rpm.Adjustable |
| Vacuun Pump Power | 11KW water circle |
| Transmission Mode | X,Y Axis reducer rack drive and Z Ball Screw |
| Work Voltage | 380V 50Hz |
| Adsorption mode | Cavity vacuum adsorption |
| Pushing device | Automatic pushing dust collection(dockable unloading platform) |
| Positioning device | L-type cylinder positioning |
| Tool setting | Automatic tool setting function |
| Re-positioning accuracy | ±0.05MM |
| Control System | Taiwan Syntec system+handwheel |
| Guide Rail | Taiwan CSK/LAPPING |
| Ball Screw | Taiwan PYM/PMI |
| Reducer | Planetary |
| XY Servo Motor | Taiwan Syntec Bus servo |
| ZAxisServo Motor | Taiwan Syntec Bus servo with band-type brake |
| Converter | MARS/ZC/FL Optional |
| Cable | CNC special use high flexible cable |
| Electric | Delixi |
| Running Commands | G code,F/S command compatible |
2,Application scope
| Processing | Cutting+Milling+Drilling+Slotting |
| Material | Artificial stone, wood, bamboo, marble, organic board, color plates and other materials |
| Application | Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings |

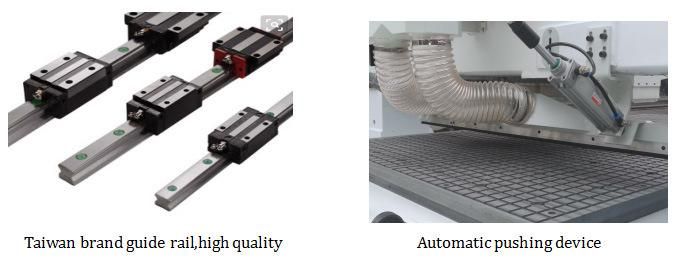

3,Main parts
4,Performance feature
| 1 | Mainly used for cutting,drilling,slotting and one-time processing for the special shape plate in customized panel furniture enterprises,it can also be used for home decoration or cabinet door multi process modeling processing |
| 2 | Optional auxiliary feeding function for panel furniture industry,automatic unloading,the automation degree and production efficiency of the equipment are further improved |
| 3 | he equipment body welded by thick steel pipe,after high temperature tempering,Formed by CNC gantry machining center at one time,the structure is stable and never deformed |
| 4 | All three axes adopt the rectangular track imported from Taiwan,Z axis adopts Taiwan imported precision ball screw,XY axis adopts grinding gear and rack and is matched with imported high precision helical gear reducer,Y-axis double rack double motor drive, so that the machine can run stably at high speed |
| 5 | The euipment adopts high-strength phenolic board rectangular adsorption vacuum table,equipped with high efficient vaccum pump,table adsorption capacity is strong,has long service life,Delixi special electrical components |
| 6 | Humanized design of machine control interface,fool-style operation, the operator can be on duty after simple training without skilled workers |
