• Model NO.：E3
• Energy Saving：Energy Saving
• Warranty：2 Years
• Customized：Customized
• Condition：New
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3400*2280*1180mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. E3 Energy Saving Energy Saving Warranty 2 Years Customized Customized Condition New Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3400*2280*1180mm Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

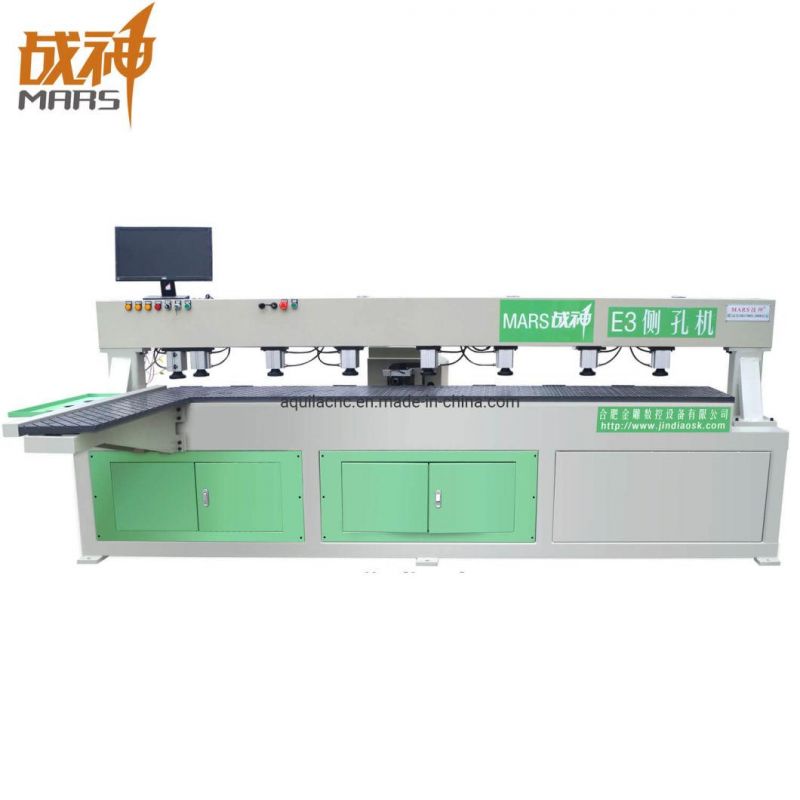

Side Hole CNC Cutting Machine/CNC Router Drilling Machine
 Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio



Description:
It is one special machine of horizontal drilling for customized panel furniture.It can completely substitute the traditional row driller,and discard the dependence of traditional punching mode on the technical workers.Combining with the professional production design software,it achieves really intelligent production.

Functions:
The functions of this machine include horizontal drilling and grooving.

Applicable Materials:

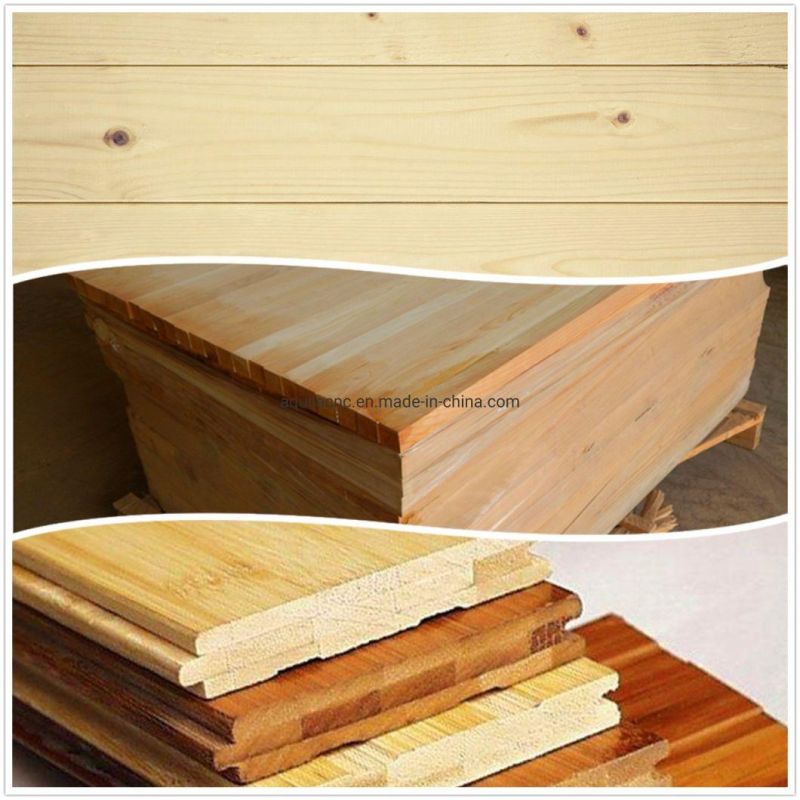

MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc..


Application Scope:
It is one special machine of horizontal drilling for customized panel furniture.


Parameters:

Model	E3 Side Hole Drilling Machine
Working Table Size	3400*2280*1180mm
Working Stroke	Length: 50mm~2800mm, Thickness: ≤30mm
Gantry Height	30mm
Body Structure	Heavy-duty thicken steel structure with tempering
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Resolution	±0.025mm
Spindle Power	HQD 3.5KW air-cooling spindle
Spindle Speed	6000~18000 rpm/min
Max Travelling Speed	30m/min
Max Processing Speed	20m/min
Working Voltage	AC380/ 3PH/ 50HZ
Dictate Format	G code/ HPGL
Software	Professional cutting optimization software
Control System	SYNTEC/OSAI/ NC Studio
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Net Weight	2000KG
Machine Size	3400*1600*1300mm

Accessories:


Performance Features:
1. It is one special machine of horizontal drilling for customized panel furniture. It can completely substitute the traditional row driller, and discard the dependence of traditional punching mode on the technical workers. Combining with the professional production design software, it achieves really intelligent production.

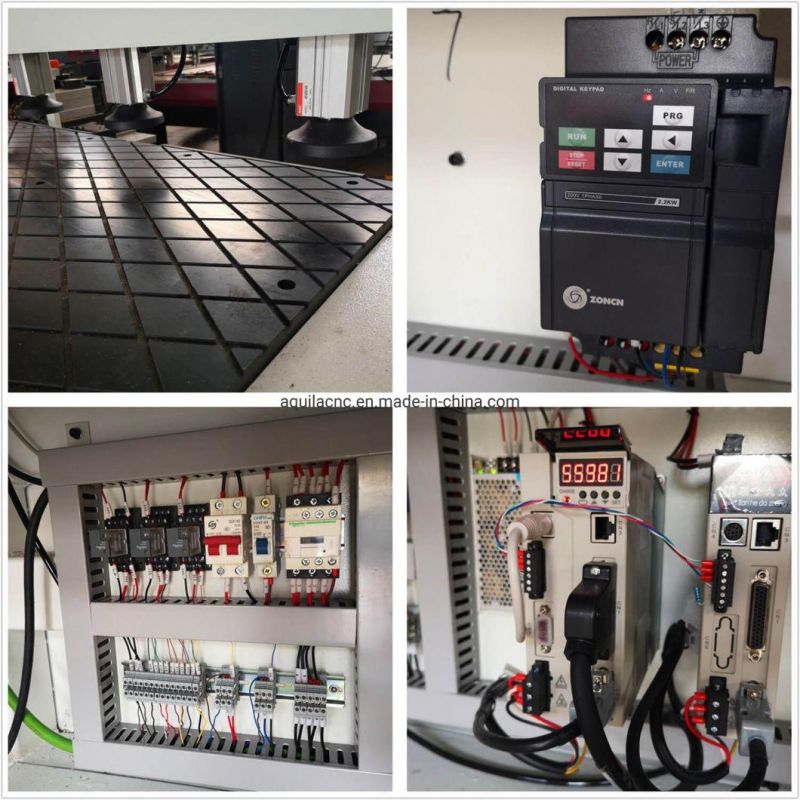

2. Excellent parts: Adopt Taiwan linear guide rail, German ball screw, Italy HSD air spindle, Taiwan planetary reducer, Japan Yaskawa serve motor and driver.
3. Reasonable design: Independent operation cabinet, more convenient for use and maintenance.
4. Perfect automatic oil lubrication system extends the service life of the machine.
5. This machine can be interfaced with the panel furniture production software. By scanning the bar-code on each panel, it can fulfill the drilling work automatically.
6. Option: with our new design of infrared positioning, it can help you accurately position the hole, fulfill the drilling work even not be interfaced with the panel furniture software.

Samples:
