• Model NO.：ELE 2040
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC220V,50,60Hz, 3pH (Option: 380V)
• Working Area：2000×4000*200mm
• Spindle Power：3.5kw Hqd Air Cooling Spindle*2

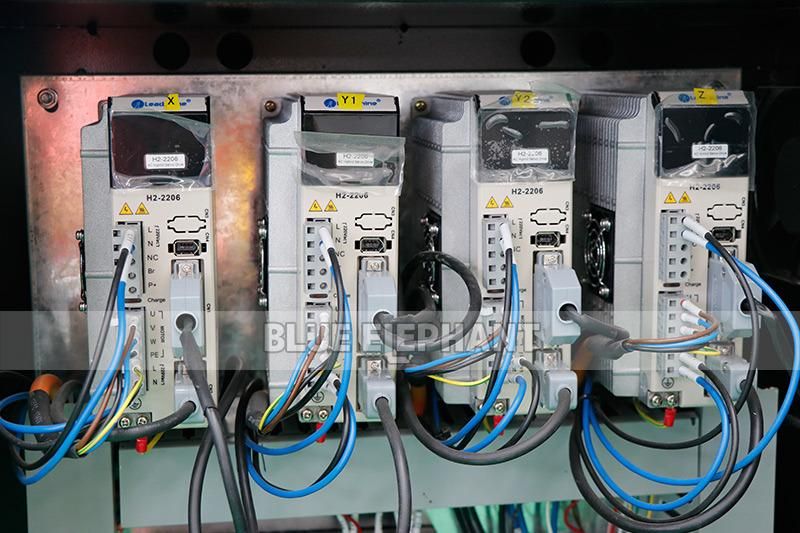

• Motor Driver：750W Leadshine Servo Motor&Driver
• Vacuum Pump：7.5kw Water Circulation Vacuum Pump
• Table Surface：T-Slot & Vacuum Working Table
• X, Y Structure：China #25 Linear Guide Rail, Helical Rack Gear
• Inverter：3.7kw Fuling Inverter
• Control System：Pm95A-3L Control System
• Z Structure：Taiwan Tbi Ball Screw
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Description

Parameter

Inverter

3.7kw FULING Inverter

X,Y,Z Working Area

2000×4000*200mm

Table Surface

T-slot & vacuum working Table

X, Y Structure

china #25 linear guide rail,helical rack gear

Z Structure

Taiwan TBI Ball Screw

Spindle Power

3.5kw HQD Air Cooling Spindle*2

Drive Motors

750W Leadshine Servo Motor&driver

Working Voltage

AC220V/50/60Hz,3PH (Option: 380V)

Command Language

G Code

Operating System

PM95A-3L control system

Collet

ER32

X,Y Resolution

<0.01mm

Vacuum pump

7.5kw water circulation vacuum pump

Software Compatibility

Type3/UcancameV9 Software

Dust Collector

3.0kw Dust Collector*2bags

Running Environment  Temperature

0 - 45 Centigrade

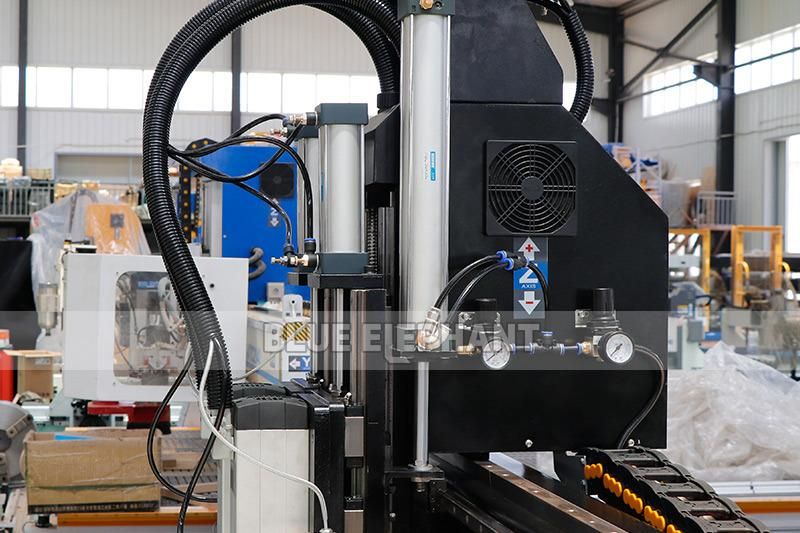

Detail Image

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.



Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.
