• Model NO.：DH-40, WC-40 wood chipper
• Power Type：Diesel
• Feeding System：Hydraulic Feeding
• Color：Based on Your Needs
• Working Efficiency：8-9cbm,H
• Use：Chipping Wood
• Discharge Chute Rotation：360 Degrees
• Transport Package：Iron Steel Crate Package
• Specification：1800*1470*1350mm
• Trademark：WFMC
• Origin：Weifang
• HS Code：84368000
• Production Capacity：400 Units,Month

Basic Info.

Model NO. DH-40, WC-40 wood chipper Power Type Diesel Feeding System Hydraulic Feeding Color Based on Your Needs Working Efficiency 8-9cbm/H Use Chipping Wood Discharge Chute Rotation 360 Degrees Transport Package Iron Steel Crate Package Specification 1800*1470*1350mm Trademark WFMC Origin Weifang HS Code 84368000 Production Capacity 400 Units/Month

Product Description

Features:

- Changchai durable diesel engines

- Electric start and stop

- 8 inch(20cm) Max. chip capacity, chip size 10-50mm adjustable

- Smart instrument panels on the screen

- Free instrument panels are added to this wood chipper. It is easier and more simple for operators to handle, you can

configure the chipper.

Product Description:

- Rotor(Flywheel)

At the heart of the chipper are an oversize heavy-duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 8" diameter tree trunks.

- Blades
High-quality CR-12 material cutting blades. 2 rotor blades and 1 bed blade, round disc housing, easy to change blades and belts. The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper.

- Hydraulic Feeding System

The model comes equipped with a hydraulic-driven dual in-feed roller system. The dual in-feed rollers pull the brush into the chipper allowing for a much more efficient chipping process. They are driven through the chipper's self-contained hydraulic system. These motors drive two brush/branch infeed rollers and dramatically improve the feed system over single roller or gravity fed wood chippers.

- Air vents

Blowing force is maximized with air intake vents on the side of the chipper. Air enters through the vents and powers the chips out the chute far enough. Equipped with a radiator could help the diesel engine more efficiently and extend service life.

- Adjustable discharge hood chute

Easily control where you want the chips with an adjustable exit chute. The chute swivels 360 degrees and the top deflector adjusts the distance.

- 2" hitching ball, can be used in Europe, Australia, USA, etc.
- Jockey wheel
- Road/turf tire
- Optional color according to specific requirements.

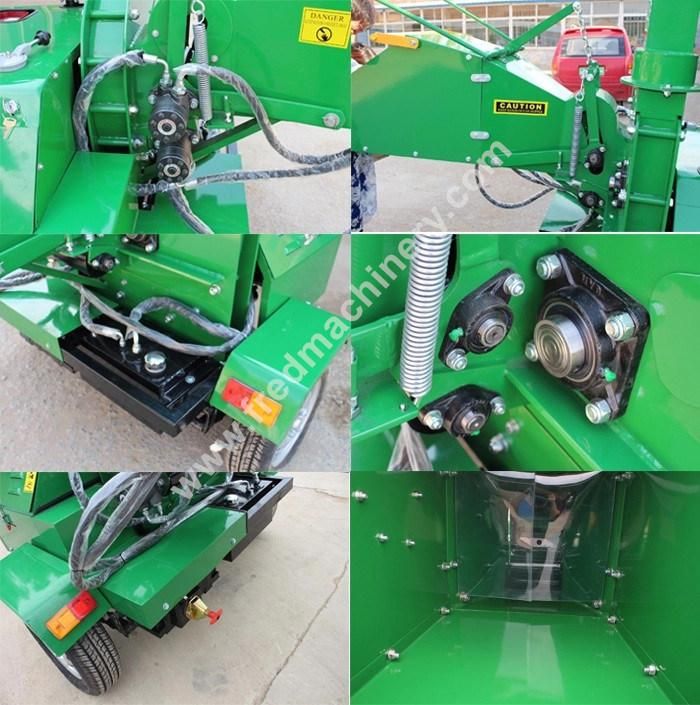

Detailed pictures:

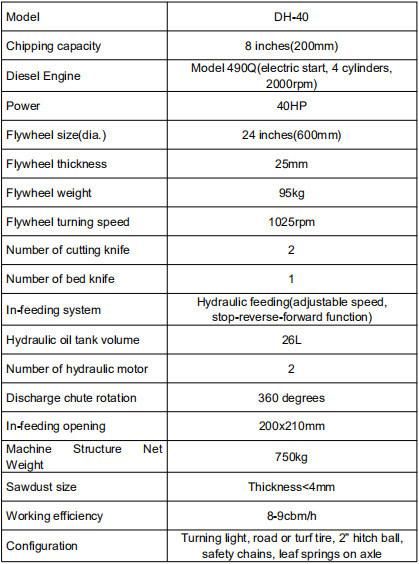

Technical Specifications:

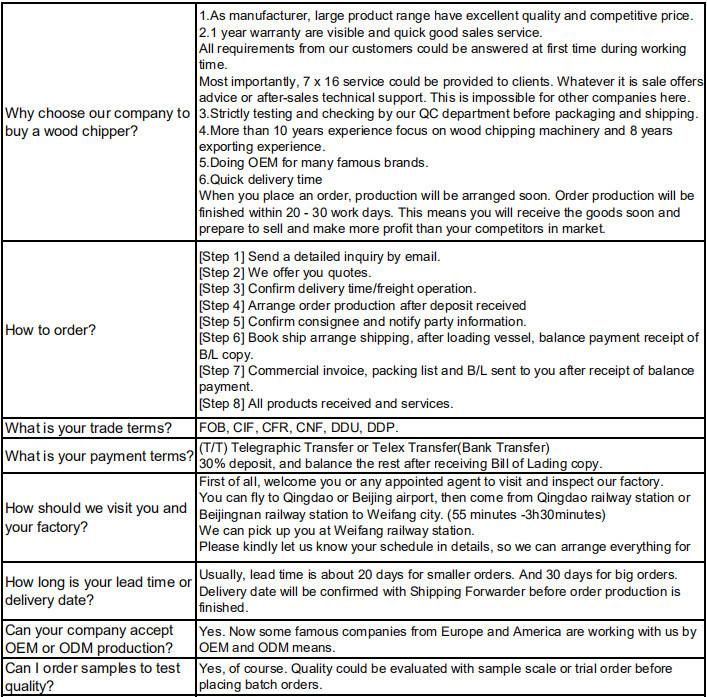

FAQ:
