• Model NO.：ZD1325
• HS Code：84659900
• Production Capacity：20 Set Per Month

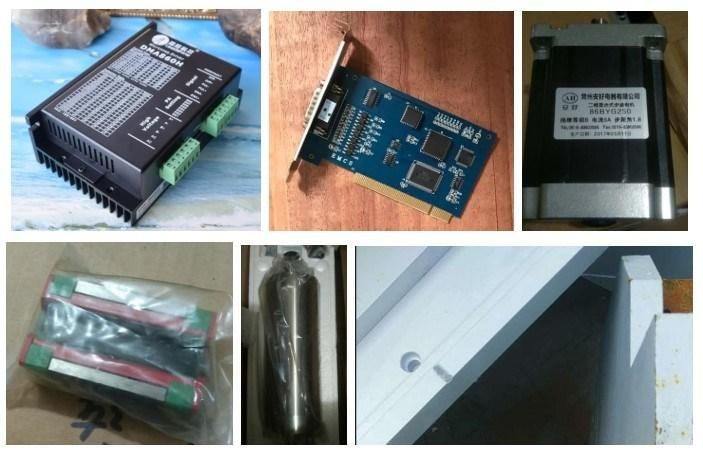

MJ1325 CNC ROUTERModelMJ1325Range of work1300x2500mmWorking height200mmRunning speed20m/minProcessing speed10m/min.Driving mode450B step motor driveDriverThessai 860Spindle power3.2kw water-cooled variable frequency spindleXY guideway and transmission20 linear guideway, high precision rack driveZ axis guideway and drive20 linear guideway, original tbi ball rod transmissionMain shaft speed24000rpm/minWorking voltage220v/50hz(380V/50hz)Support format*nc,G code,*uoo,*mmg,*pltTool knife diameter¢3.175mm  ¢6mm  ¢12.7mmControl systemDimension control systemOilingManual oil injectionVac-sorb5.5kw 380V Vacuum adsorption system (selection)Control cabinetIndependent control cabinet (optional built-in control cabinet)
Advantage:

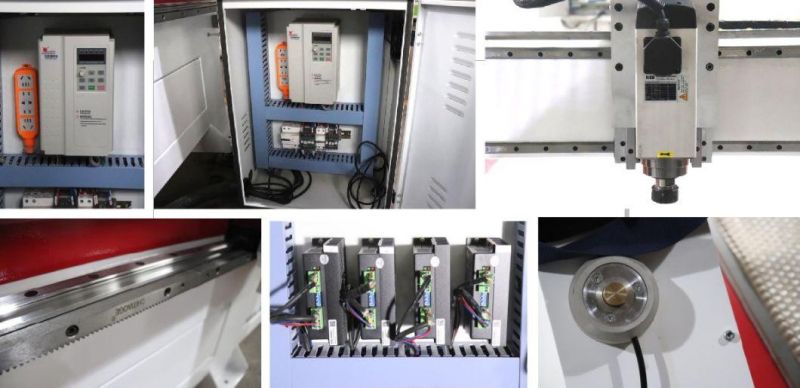

-Adopt the gantry structure, the guide rail support surface is stable, the rack drive mode, the transmission
is stable, guarantees the long time high speed movement does not deform, does not shake.
-The linear guideway and y axis are driven by double motors, which have large bearing redundancy and
long life. Using double rack transmission, the operation is simpler and the design is more humanized.
-A variety of software compatible, compatible with type3/artcam/castmate/ carved / Wentai and other
design and production software.




Application:



Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900
8) Certificate: CE&ISO

FAQ:

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with 9 years experience.



Q: What kind of products do you have?

A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.



Q: Do you have CE or ISO certification?

A: Yes we have both.



Q: What's your warranty?

A: We offer one year warranty.



Q: Do you offer oversea after-sale service?

A: Yes if necessary.



Q: What's your advantage comparing with other suppliers?

A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.

Package:


About us:


Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
