• Model NO.：mm5813R
• Color：White
• Transport Package：Plastic
• Specification：1850*3400*3000mm
• Trademark：HZH
• Origin：Qingdao
• HS Code：84659600
• Production Capacity：30sets,Month

Basic Info.

Model NO. mm5813R Color White Transport Package Plastic Specification 1850*3400*3000mm Trademark HZH Origin Qingdao HS Code 84659600 Production Capacity 30sets/Month

Product Description

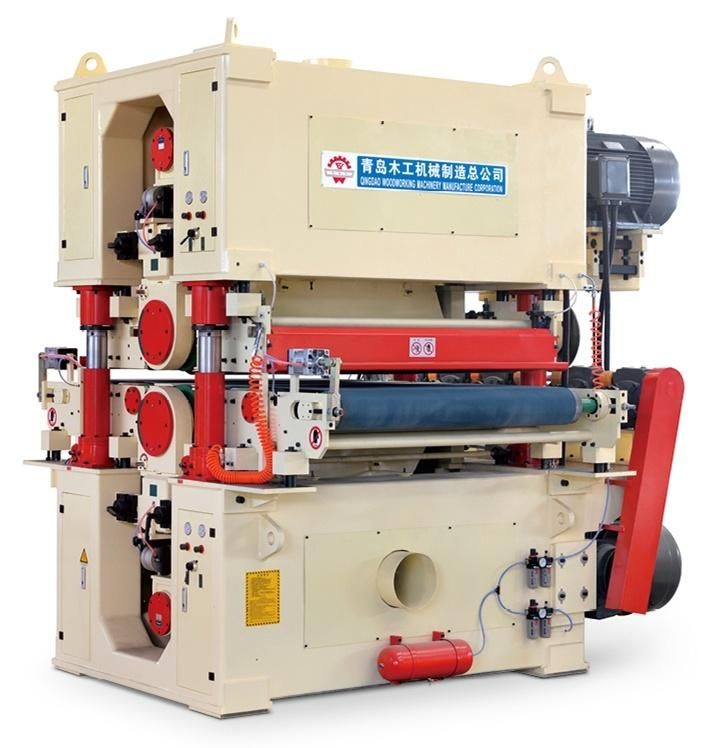

We supply high quality Woodworking Belt Sander mm5613R

Product Application

The double--side calibrating sanding machine series is unlimited by the original thickness tolerance.It is significant for the woodworking machinery to calibrate the wood--based panel and get the required thickness and precision through double--side sanding.high--precision(thickness tolerance with up or down 0.08mm after double-side sanding),top--quality,high efficiency(complete calibrating and polishing single--side or double--side of panel only once)are its advantage.it is mainly applied in calibrating and fine-sanding particleboard,block board,MDF,high-pressure overlaying board,multi-layer,cement particleboard,medium or high-density calcium silicate board and solid wood etc



Model	MM5613R
Max working width	1300mm
working thickness	5-100mm
Working length	≥600mm
working precision	±0.08mm
size of abrasive belt	1350*2800mm
speed of abrasive belt	25m/s
Roller diameter	Φ320mm
Total power	165kw
Main motor power	75Kw*2
Feeding motor	11Kw
Lifting motor	2.2Kw
Brush motor	0.75kw*2
working air pressure	0.5-0.8Mpa
volume of dust collector	28000 m³/h
Overall dimension	3000*1700*3000mm
Weight	11T
Voltage	380V 50Hz

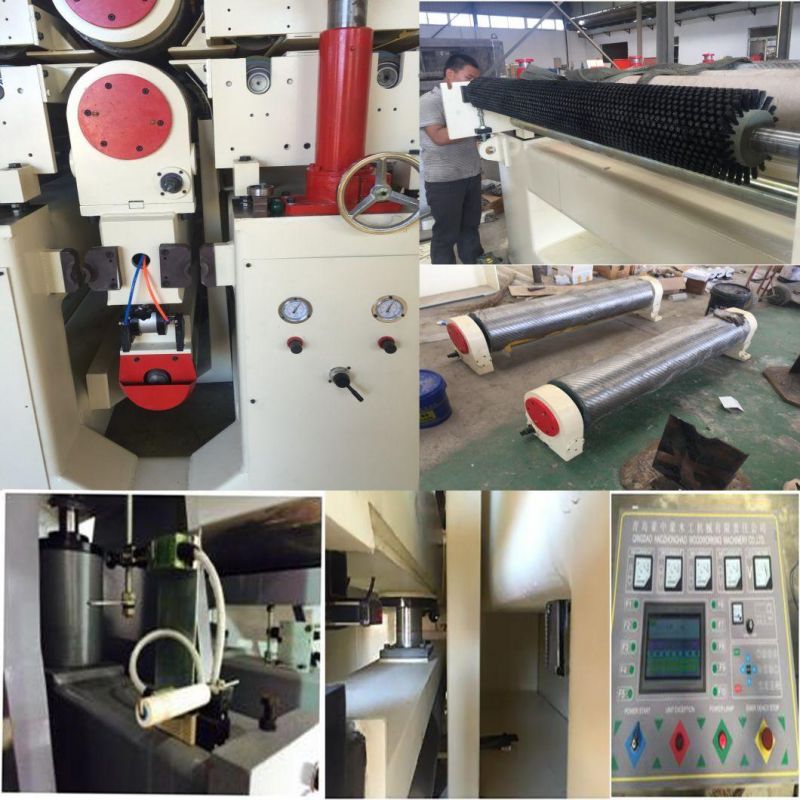

Details Image



Packing&Delivery
Packaging:The normal package is PLASTIC FILM also we can packing with your requirements  Delivery:About 30 days after receive the down payment delivery

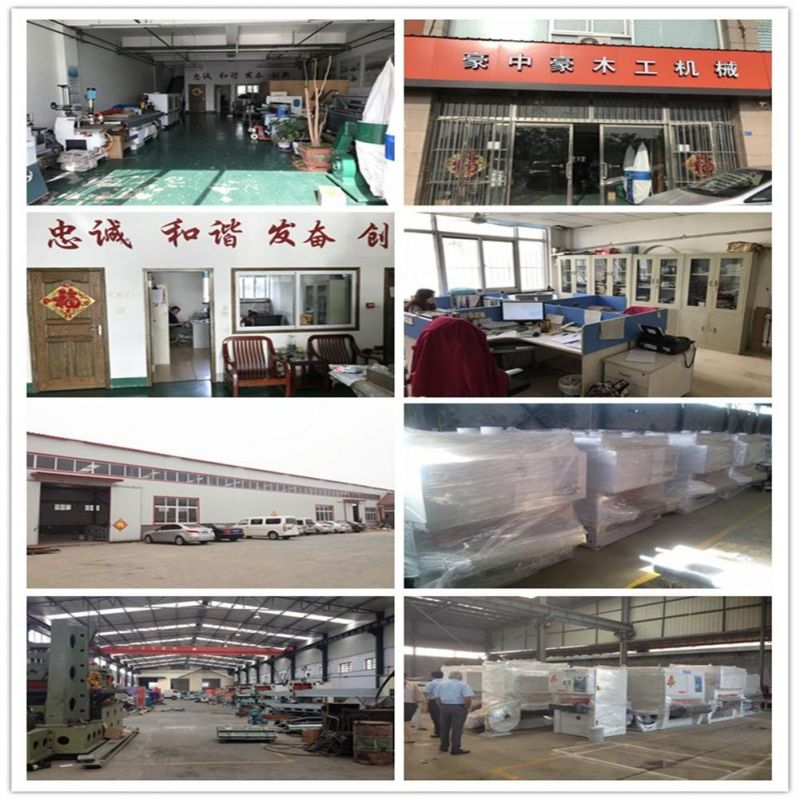

Our company&factory


Our Certifications

FAQ
What is the Warranty of machine?

Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.

Why choose HAOZHONGHAO?

1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.

2,Excellent: Established in 1958, ISO9001 certificated, CE certificate

3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.

4 Location: One hour reach Qingdao sea port
