• Model NO.：RMB521D
• Process Type：Heavy Processing
• Certification：CE
• After-sales Service：1 Year
• Feeding Speed：5-40m,Min
• Transport Package：Soft Packing & Plywood Packing
• Specification：RMB521D
• Trademark：SAMACH
• Origin：China
• Production Capacity：70sets,Month

Basic Info.

Model NO. RMB521D Process Type Heavy Processing Certification CE After-sales Service 1 Year Feeding Speed 5-40m/Min Transport Package Soft Packing & Plywood Packing Specification RMB521D Trademark SAMACH Origin China Production Capacity 70sets/Month

Product Description

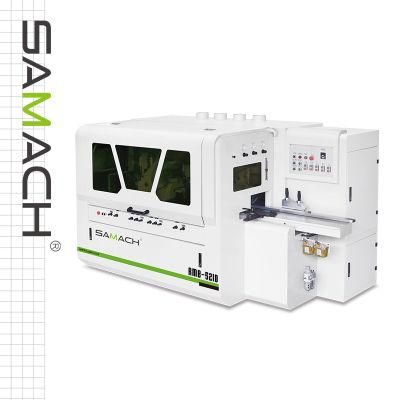

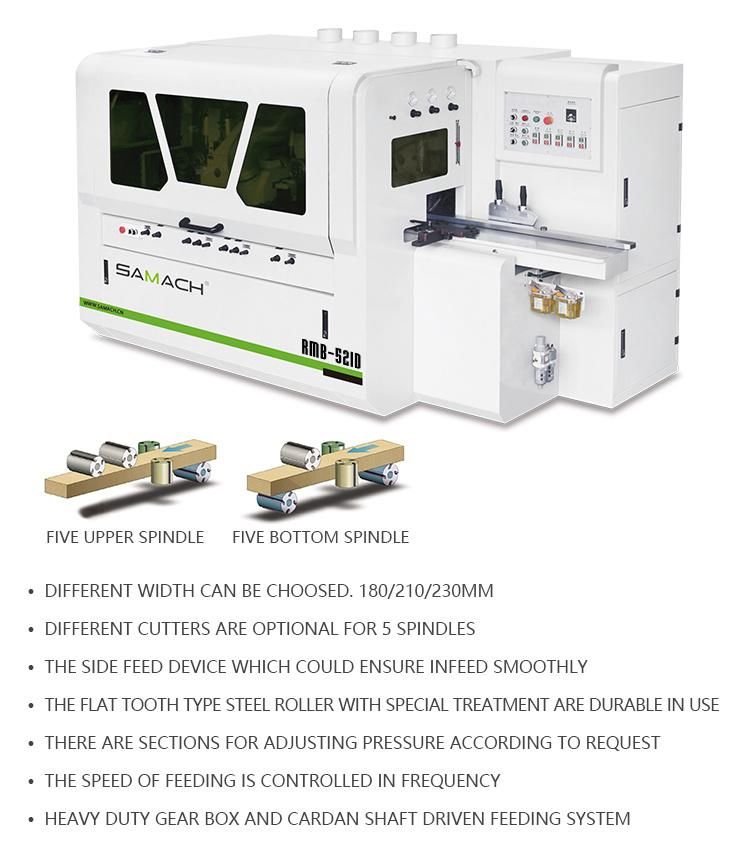

Heavy Duty Wood Five Spindles Automatic 4 Side Planer Machine

Model	RMB521U	RMB521D
Working width	25-210mm	25-210mm
Working thickness	8-130mm	8-130mm
Min working length (Intermittent /Continuous)	580/300mm	580/300mm
Blade diameter	Ф40mm	Ф40mm
Feeding speed	5-40m/min	5-40m/min
Main spindle speed	7000r/min	7000r/min
Trimming blade diameter	Φ145/Φ150mm	Φ145/Φ150mm
1st lower blade diameter	Ф125mm	Ф125mm
Left/right blade diameter	Ф125-Ф170mm	Ф125-Ф170mm
1st upper blade diameter	Ф125-Ф160mm	Ф125-Ф160mm
2nd upper blade diameter	Ф125-Ф180mm	-
2nd lower blade diameter	-	Ф125-Ф180mm
Total motor power	36.25kw	36.25kw
1st lower blade power	5.5kw	5.5kw
Left/right blade power	5.5kw	5.5kw
1st upper blade power	7.5kw	7.5kw
2nd upper blade power	5.5kw	-
2nd lower blade power	-	5.5kw
Feeding motor power	4kw	4kw
Lifting motor power	1.5kw	1.5kw
Pneumatic source pressure	0.6Mp	0.6Mp
Dust outlet diameter	5*Φ150mm	5*Φ150mm
Overall size	3680*1660*1860mm	3680*1660*1860mm
Weight	3500kg	3200kg

1. How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.

2. Where is your factory?
Our factory is located in shandong which is a famous city for producing the machine. Welcome to visit our factory any time.

3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

8. What payment do you accept?
Normally we can provide T/T, L/C ect. Any other ideas, please contact us for better support.


Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
