Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning

Jinan Starma Intelligent Tech Co., Ltd.
  • Type:Multi-Axis Automatic & Semi-Automatic Lathe
  • Voltage:380V
  • Tool Holder:Three
  • Automatic Grade:Automatic
  • Precision:High Precision
  • Setting Mode:Floor-type

Base Info

  • Controlling Mode:CNC
  • Power Source:Electric
  • Processing Accessory:Centre CNC Lathe
  • Certification:CE, ISO
  • Name:Wood Lathe Machine
  • Model:Sm-C1215r3
  • Structure:Thick Steel Tube Welded Heavy Body
  • Control System:DSP Control System
  • Rotary Axis:3PCS with 120mm Diameter and 1500mm Length
  • Motor:Stepper 450c Big Motor
  • Driver:Yako 2281 Driver
  • Inverter:Best or Fulling Inverter 5.5kw
  • Oil:Semi-Automatic Lubrication
  • Spindle:3.5kw Hqd Air Cooling Spindle
  • Software:Yes, Include Professional Software
  • Control Box:Independent
  • Square Rail:Xy Axis Is Oblique Gear Rack, Z Axis Ballscrew
  • Weight:1600kgs
  • Transport Package:Standard Export Plywood Case Packing
  • Specification:120mm diameter, 1500mm length, 3pcs axis
  • Trademark:STARMACNC
  • Origin:Jinan, China
  • HS Code:8465990000
  • Production Capacity:80 Sets Per Month

Description

NoDescriptionParameter1X,Y,Z Working Area120mm diameter x 1500mm length R3 wood lathe machine2X,Y,Z Traveling Positioning Accuracy±0.03mm3X,Y,Z repositioning Accuracy ±0.02mm4Rotary size120mm diameter (150mm,200mm,300mm,400mm,500mm can option)5FrameHeavy duty Square pipe Welded Structure 8mm6X, Y axis transmissionPrecision oblique gear rack7Z axis transmissionTaiwan TBI 2505 ballscrew8Max. Travalling speed 40000mm/min9Max. Working Speed20000mm/min10Spindle Power Motor3.5kw air cooling11Spindle speed0~18000rpm/min12Drive MotorsStepper 450C big motor and Yako 2281 driver13Working VoltageAC 380V(220V can option)14InverterBEST or Fulling 3.7kw (Delta can option)15Command LanguageG code16Operating SystemDSP A1117InterfaceUSB18Flash Memory128M( U Disk)19X,Y Resolution<0.01mm20Software CompatibilityArtcam,type3,Ucancam,etc21Running EnvironmentTemperature: 0ºC~45ºC
Relative humidity: 30%~75%22Machine partsblades, tailstock, thimble, USB or CDs with software program, Hexagon ring spanner, bucket, collets and bits, etc. 23Weight1600kgs24Packing size3300*1500*1300mm25Delivery time(Days)1-1              2-3             4-5                       >67                  10              20                     To be discuss

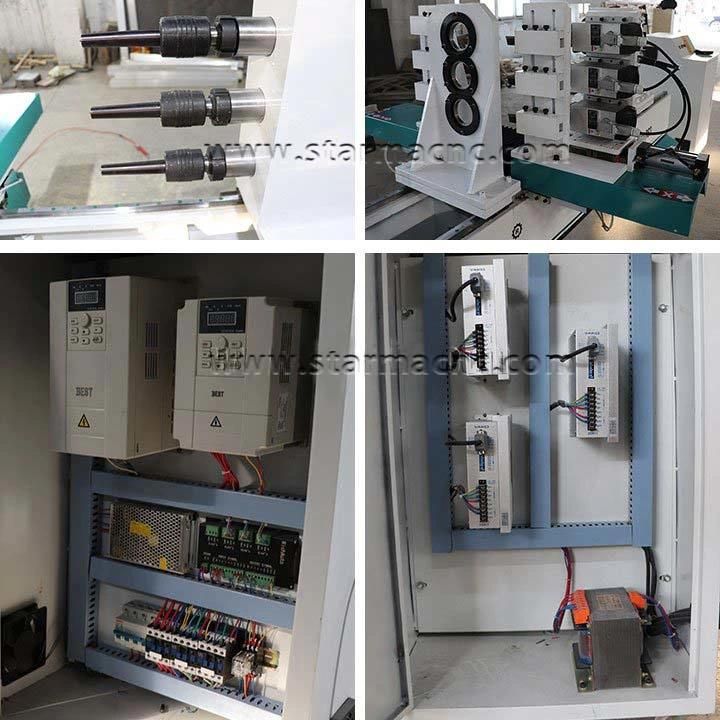

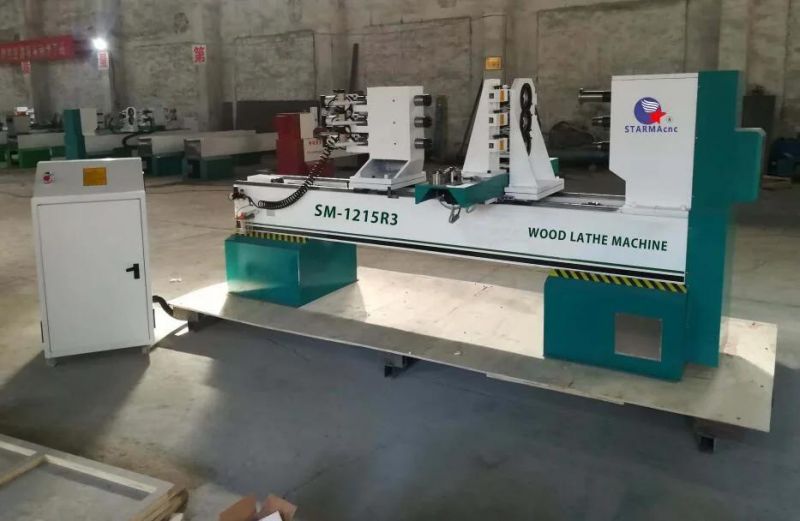

-------Machine Details-------

Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning
Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning
Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning

Jinan top quality automatic 3 knife wood lathe machine for wood turning

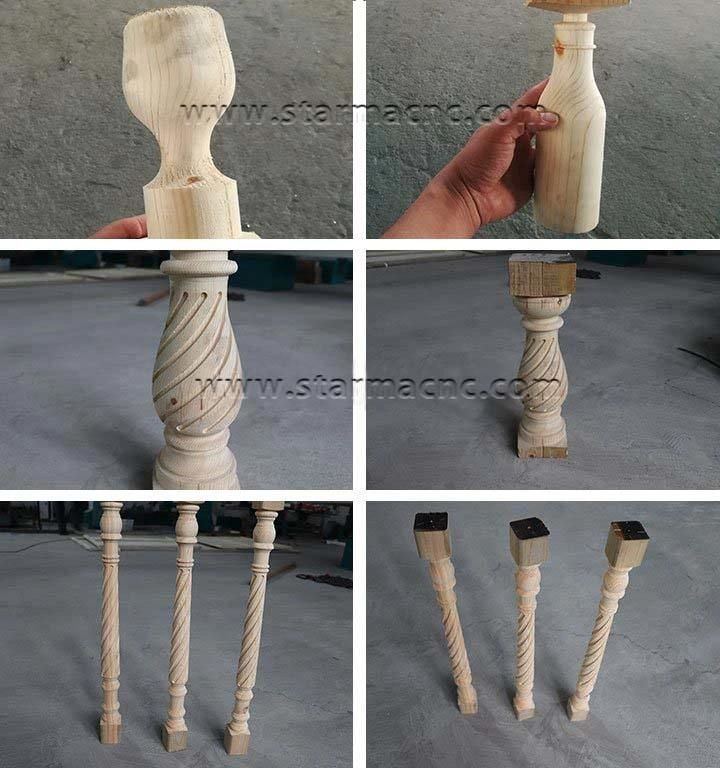

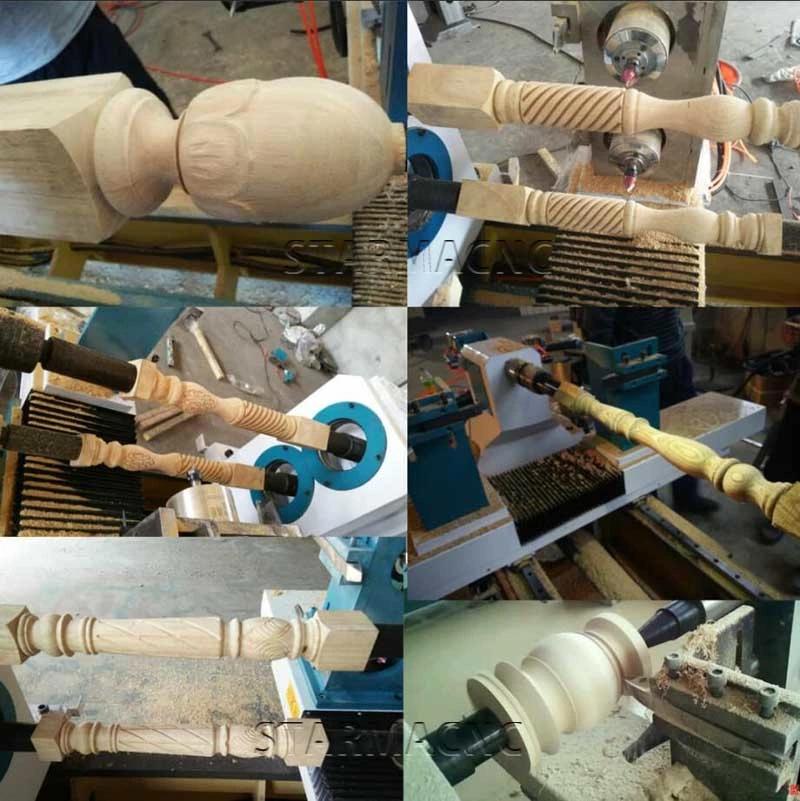

-------Application-------

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning
Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning

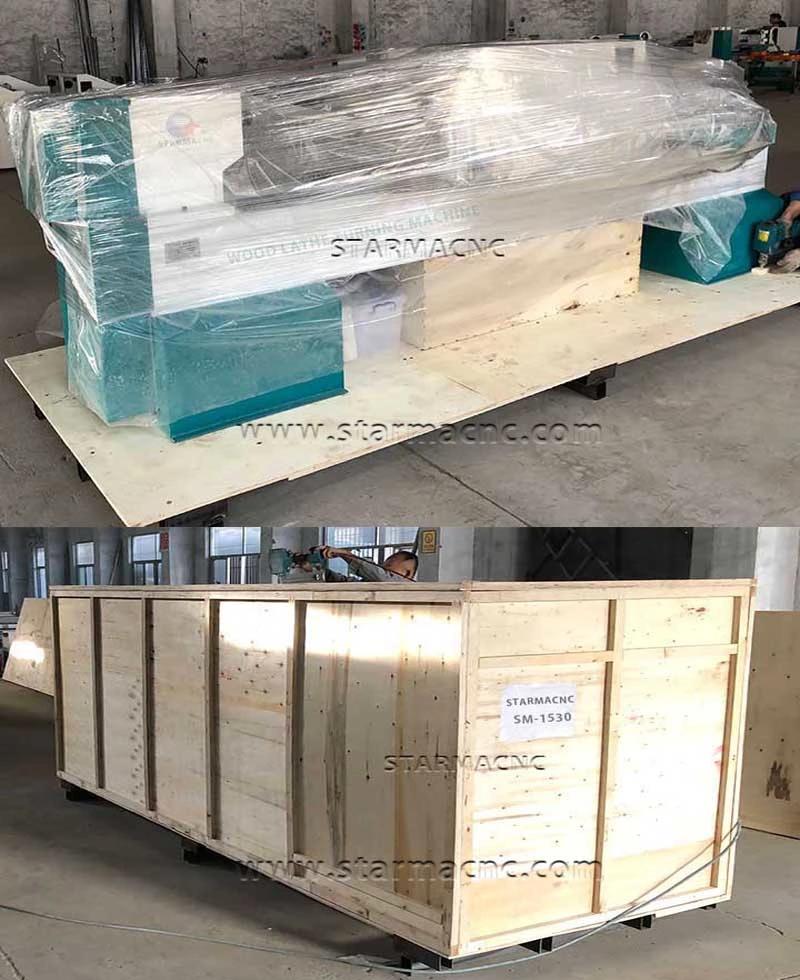

-------Packing and shipping-------

We have 3 layers package.
or the outside, we adopt free fumigation wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking.
For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning

Jinan top quality automatic 3 knife wood lathe machine for wood turning
-------Company information-------

Jinan Starma Machinery Equipment Co.,Ltd. Build from 2010 years and lived in Jinan city, Shandong province,China. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine. To the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE UL FDA certificate.The aim of Jinan STARMA CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.
Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning

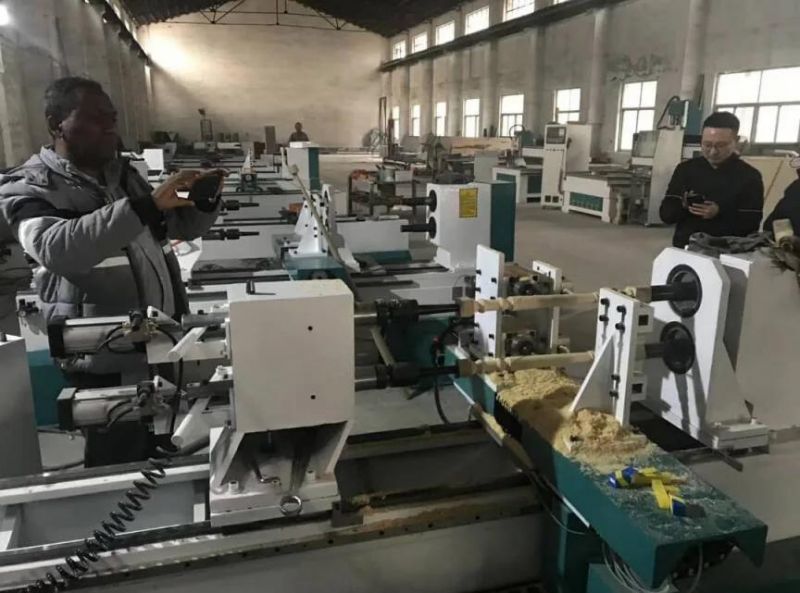

-------Customer visit-------
Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning

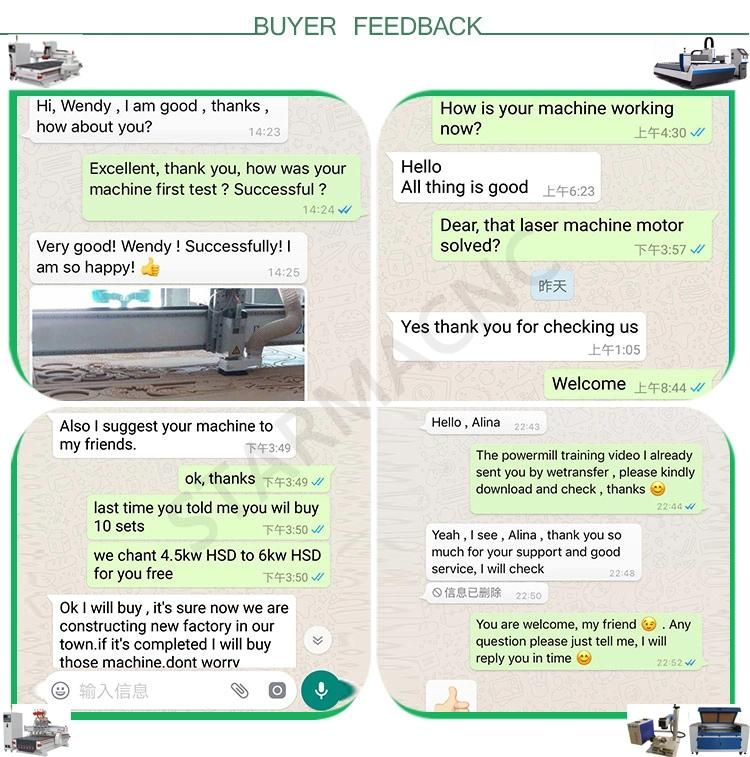

-------Our certificate & feedback from client-------
Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning

Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning

-------Our service-------
Before sale:

We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here.
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is 12 months.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!

-------FAQ-------
1. What is the Payment Terms for this cnc router?

Re: Alibaba Trade Assurance ,T/T , Western Union, Paypal,L/C

2. How do you delivery the machine?

Re: By sea,By rail,By land

3. What about the delivery time?

Re: 12-18 working days for this wood cnc router .

4. What's your warranty?

Re: 1 year warranty for cnc router machine.

5. Do you offer clinical training?

Re: Yes. We can provide training in our factory or in your country.

6. Do we have the discount if buy more?

Re: We have favorable prices for agents. Welcome you to become our long-term business partner.
Jinan Top Quality Automatic 3 Knife Wood Lathe Machine for Wood Turning
