• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Size：1300*2500*200mm
• Spindle Power：3kw Water Cooling Spindle
• Inverter：3.7kw Fuling Inverter
• Motor Driver：Leadshine Stepper Motor and Driver
• Control System：DSP Controller
• Screw and Rails：Tbi Ball Screw and Hiwin Linear
• Transmission：Helical Rack and Pinion
• Max Working Speed：25000mm,Minute
• Gross Weight：1300kg
• Working Voltage：AC380V,50,60Hz, 3phs
• Transport Package：Standard Export Woode Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：China, Shandong, Jinan
• HS Code：8465990000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Working Size 1300*2500*200mm Spindle Power 3kw Water Cooling Spindle Inverter 3.7kw Fuling Inverter Motor Driver Leadshine Stepper Motor and Driver Control System DSP Controller Screw and Rails Tbi Ball Screw and Hiwin Linear Transmission Helical Rack and Pinion Max Working Speed 25000mm/Minute Gross Weight 1300kg Working Voltage AC380V/50/60Hz, 3phs Transport Package Standard Export Woode Case Specification CE, SGS, ISO Trademark FIRMCNC Origin China, Shandong, Jinan HS Code 8465990000 Production Capacity 30 Sets/Month

Product Description

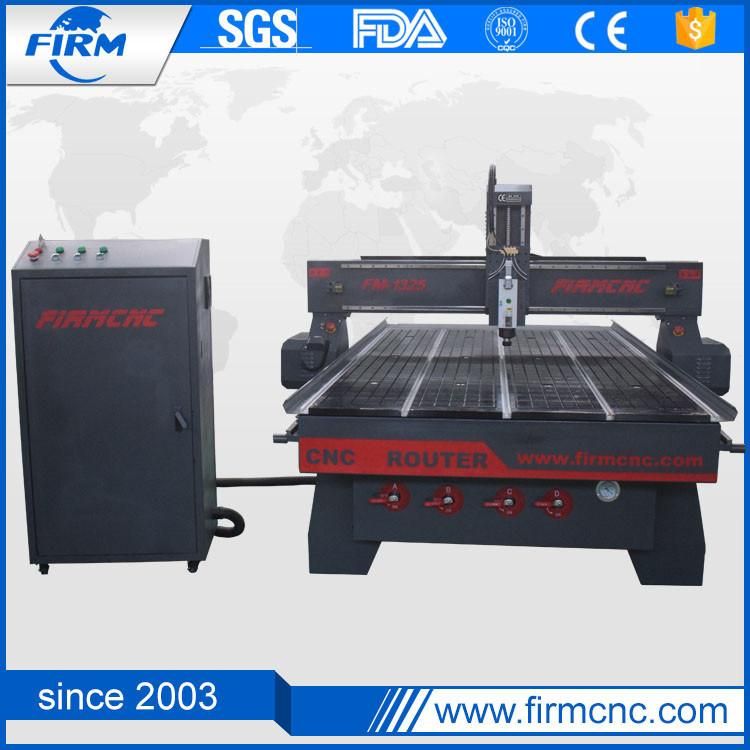

Wood Acrylic MDF Cutting Carving CNC Router Machine


Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions
Formats, may achieve process function in interruption of power supply, breakpoint And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.


Applications:
1) Furniture: Plate, office furniture, doors, cabinets.
2) Wood products: Speakers, games cabinets, computer tables, sewing machines, musical instruments.
3) Board processing: Insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4) Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.


Technical specification

Description	Parameter
X,Y,Z working area	1300x2500x200mm
Table size (mm)	1450×2940mm
Resolution	±0.03/300mm
Repeatability	±0.03mm
Table Structure	T-slot
Lathe Structure	Welding steel structure
X,Y structure	Rack pinion, Hiwin linear rails
Z structure	Ball screw, Hiwin square rails
Rated power	3Kw (without spindle)
Max. rapid	33000mm/min
Max. Working speed	25000mm/min
Spindle power	3.0kw water cooling spindle
Spindle speed	0-24000RPM
Working mode	Stepper or servo
Working voltage	AC380V/50/60Hz,3Ph(Option 220V,3Ph)
Command code	G code
Operating system	DSP system (Ncstudio Syntec, Mach3)
Interface	USB
Memory	128M
Tool holder	ER25
X,Y working accuracy	<0.03mm
Software	Type3, UcancameV9, Artcam
Working temperature	Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation)
Packing size	3300X2100X2300mm
Net weight	1200KG
Gross weight	1300KG
Optional Spare Parts	Domestic water cooling spindle
	Double bag dust collection,vacuum pump
	rotary

Service:
# Two years warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours.

Other different kinds of cnc router machines for your reference

Packing & shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Company information:
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate. The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.

FAQ:
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
