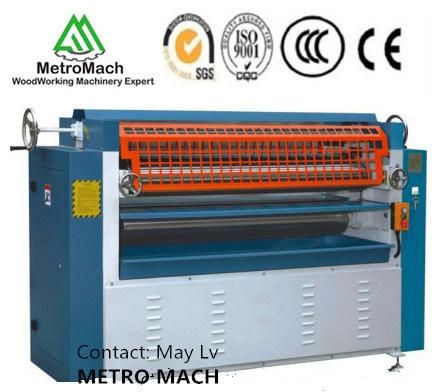

4 Feet Plywood Making Core Veneer Glue Spreader Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type：Glue Spreader
- Automatic：Automatic
- Certification：CE, ISO, FDA
- Voltage：380,415V
- Precision：High Precision
- Control：PLC Control
Base Info
- Model NO.：BS3414
- Diameter of Roller：Customized
- Linear Speed：30m,Min
- Roller Length：1400mm
- Setting Mode：Floor-Type
- Color：Customized
- Customized：Yes
- Roller Number：2-4
- Transport Package：Standard Export Packing
- Specification：2250*1250*1700MM
- Trademark：METROMACH
- Origin：Linyi City, China
- HS Code：8465990000
- Production Capacity：1000 Sets, Year
Description
Basic Info.
Model NO. BS3414 Diameter of Roller Customized Linear Speed 30m/Min Roller Length 1400mm Setting Mode Floor-Type Color Customized Customized Yes Roller Number 2-4 Transport Package Standard Export Packing Specification 2250*1250*1700MM Trademark METROMACH Origin Linyi City, China HS Code 8465990000 Production Capacity 1000 Sets/ YearProduct Description
Product DescriptionDouble Sides Plywood Core Veneer Glue Spreader Machine1. Main features:1. Adopt the big diameter and high precision thick rollers: high rigidity, glue uniform.
2. Separately designed gears transmission box: Low noisy, work stable, long working life.
3. Start device specical designed for the rollers lifting and fasten: Safety, fast and convenient.
4. Roller speed and veneer out-put conveyor speed can be adjusted separately to meet different working requirements.
5. Emergency stop device to prevent any accidents.
2.Technical parameters:
| Length of Spreading roller | 1400mm |
| Diameter of spreading roller | 355/270/260mm (Customized) |
| Diameter of squeezing roller | 180mm |
| spreading speed | 30m/min |
| Machine power | 4kw |
| machine size | 2250x1250x1700mm |
| machine weight | 1200kgs |

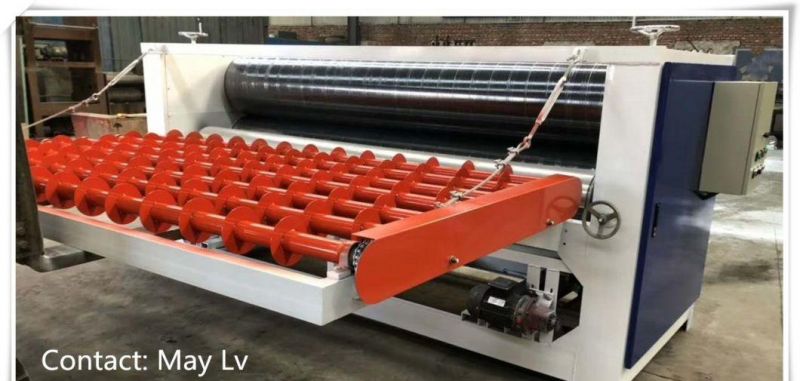

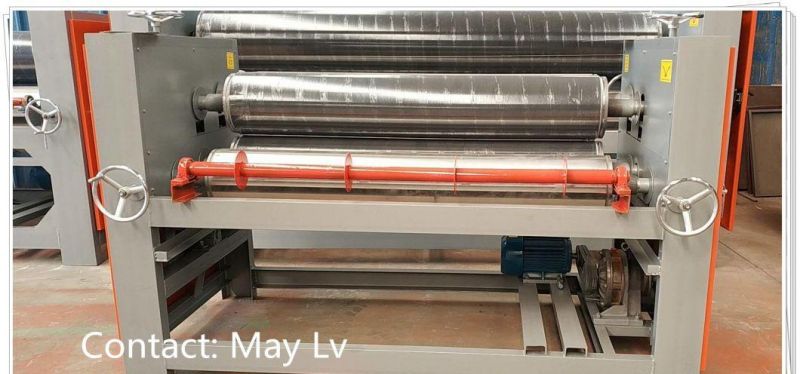

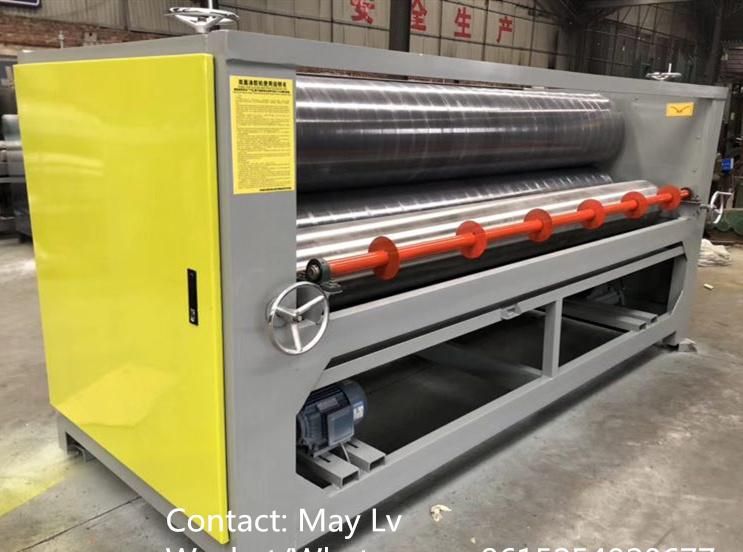

3. More Pictures:
