• Model NO.：MF450D
• Panel Thinkness：10-60mm
• Min.length panel：160mm
• Min.width panel：80mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Transport Package：PE Foam for Internal Package, Plywood Box Outside
• Specification：4600*880*1580mm
• Trademark：QDZD
• Origin：China
• HS Code：84659400
• Production Capacity：200sets,Month

Type	MF450D
Banding tape thickness	0.4-3 mm
Banding tape width	12-65 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Work piece width	>=50 mm
Heating power	1.8 KW
Feeding motor power	2.2 KW
Glue spreading power	0.75 KW
End trimming power	0.5 KW x 2
Rough trimming motor power	0.75 KW x 2
Fine trimming power	0.75 KW x 2
Polishing motor power	0.37 KW x 2
Feeding speed	10-23 m/min
Air pressure	0.8 Mpa
Overall dimension	4570x850x1520 mm
Packing size	4600x880x1580 mm
N.W.	2000 KGS
G.W.	2100 KGS

Feature:
  1.The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
  2.End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting suface smoothly.
  3.Rough/fine trimming mechanism is used for repairing the excess edge matrials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
  4.Profiling unit is to make the board ending more smooth and aesthetic
  5Scraping unit is for a perfect finishing of the applied edge.
  6.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.

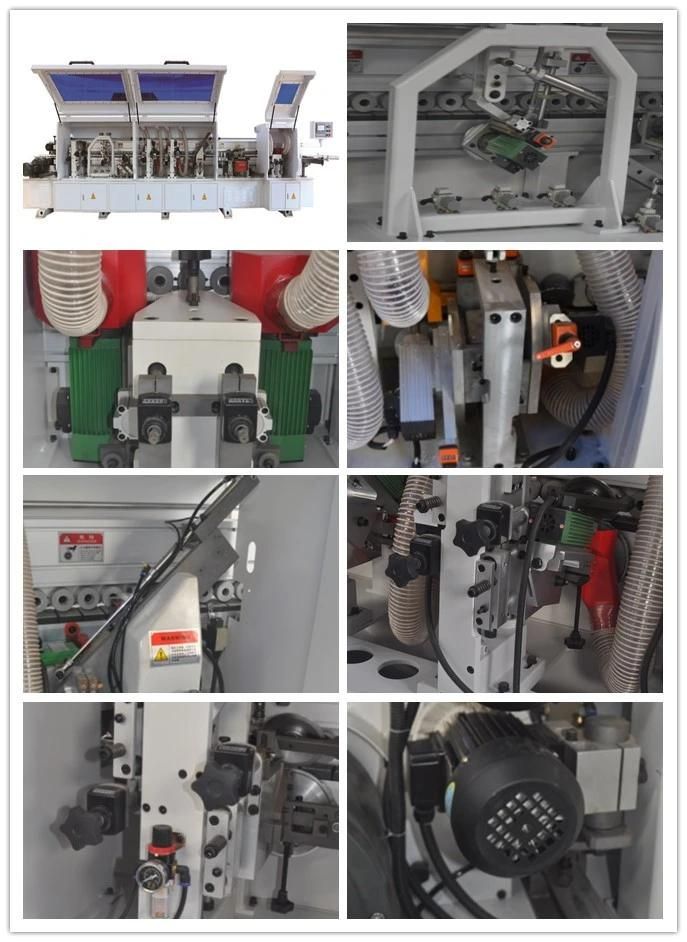

Product details:
