• Model NO.：WP-800
• Certification：CE, ISO
• Customized：Customized
• Condition：Used
• Color：Customized
• Max Log Length：1500mm
• Max Log Diameter：1200mm
• Pressure：30 Tons-45tons
• Types of Engine：Diesel or Electric
• Types of Diesel Engine：Fixed or Movable
• Applications：Thick Wood Log, Splitting Before Make Wood Chips
• Range of Machine Weightness：1200-2400kg
• Keywords 1：Automatic Wood Splitter
• Keywords 2：Automatic Log Splitter
• Keywords 3：Automatic Wood Log Splitter
• Transport Package：Wood Package, Ship Container
• Specification：CE, SGS, ISO
• Trademark：AGII
• Origin：China
• HS Code：8465100000
• Production Capacity：100sets Per Month

Basic Info.

Model NO. WP-800 Certification CE, ISO Customized Customized Condition Used Color Customized Max Log Length 1500mm Max Log Diameter 1200mm Pressure 30 Tons-45tons Types of Engine Diesel or Electric Types of Diesel Engine Fixed or Movable Applications Thick Wood Log, Splitting Before Make Wood Chips Range of Machine Weightness 1200-2400kg Keywords 1 Automatic Wood Splitter Keywords 2 Automatic Log Splitter Keywords 3 Automatic Wood Log Splitter Transport Package Wood Package, Ship Container Specification CE, SGS, ISO Trademark AGII Origin China HS Code 8465100000 Production Capacity 100sets Per Month

Product Description

Automatic Oak Hydraulic Wood Log Splitter for Sale



1. Technical Parameters of Automatic Wood Log Splitter:

Model	Working platform size(mm)	Max. Log Length (mm)	Max Log Diameter (mm)	Power (KW)	Oil cylinder pressure (tons)	Overall size (mm)	Weight (kg)
WP-800	800x600	800	500	7.5	30	2800*600*1100	1200
WP-1000	1000x600	1000	650	11	35	3100*600*1200	1400
WP-1200	1200x600	1200	980	15	40	3400*650*1300	1800
WP-1500	1500x850	1500	1200	18.5	45	4200*1100*1500	2400

2. Features of Automatic Wood Log Splitter:

(1).The length of the work table has 3 dimension-1000mm, 1200mm and 1500mm.

(2).The nominal pressure is 30ton, 40ton and 50ton and so on depend on different model.

(3).We can design the splitter with different pressure according to the customers' request.

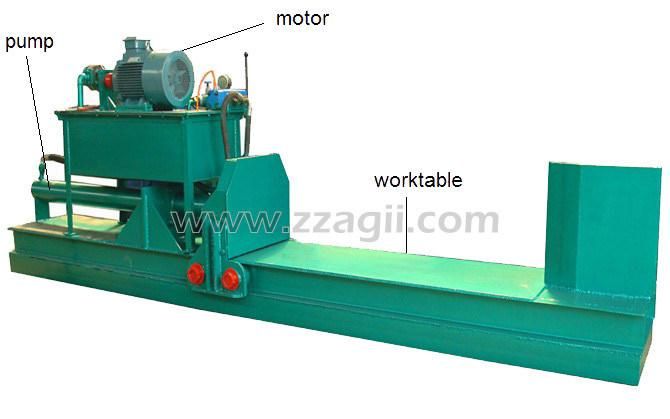

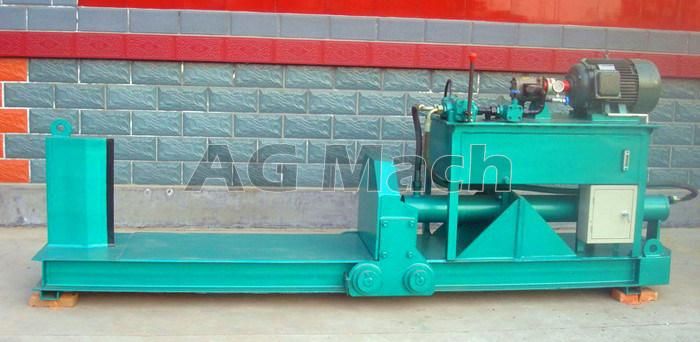

(4).The horizontal type splitter is more convenient to operate. The power can be electric motor or diesel engine depend on customers' need.

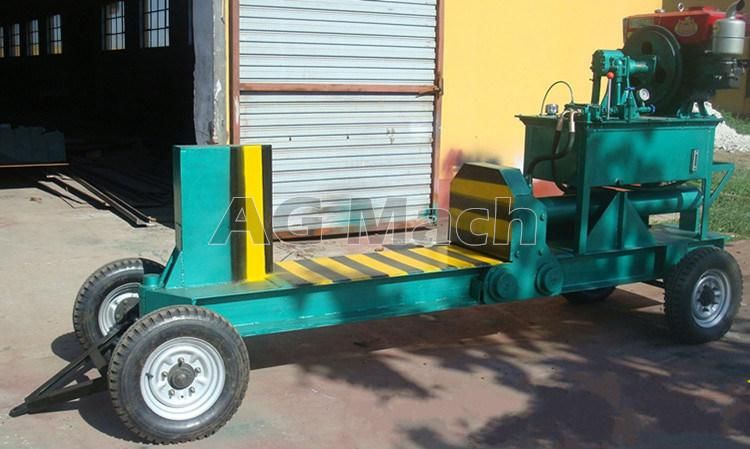

(5).We also can design it to be mobile type with tires which can be attached to tractor or car.



3. Introduction of Automatic Wood Log Splitter:
(1). The wood log splitter is designed to cut the big stump, big brances, large logs and hard wood into small size.
(2). Log wood splitter is an important forestry machinery.
(3). There are three types of log splitter, vertical type splitter, horizontal type splitter and side type splitter.
(4). The log wood splitter machine is designed to cut the big and thick wood logs into small size, which can be fit for making woood chips, wood sawdust for making biomass biofuel energy.


4. Advantages of Automatic Wood Log Splitter:

(1). The center of gravity is low so it is steady and safe when working.

(2). Can work with the material with big diameter.

(3). The hydraulic system is fixed to the main body of splitter, so it don't need to be installed before use.

(4). It is easy to be moved and transported by simple lifting equipment.
   And it can be designed to be mobile type with tires then be attached to tractor or car.



5. Applications of Automatic Wood Log Splitter:

This log splitting machine is suitable to use in dense board factories, man made board factories, veneer board manufacturers. At present, wood splitting machine is important equipment in paper-making, man-made board, wood pulp processing industries.
