• Model NO.：DW1224
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1200mm*2400mm
• Spindle Power：4.5kw Water Cooling Spindle
• Table Surface：Vacuum Ttable (Option:T-Slot Table)
• X, Y Structure：Rail Linear Bearings
• Z Structure：Ball Screw, Hiwin Rail Linear Bearings
• Max.Rapid Travel Rate：32000mm,Min
• Max.Working Speed：20000mm,Min
• Spindle Speed：0-18000rpm
• Drive Motors：Stepper System(Option:Servo System)
• Software Compatability：Type3 Software, Ucancam Software
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE, FDA
• Trademark：DWIN
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50 Sets Per Month

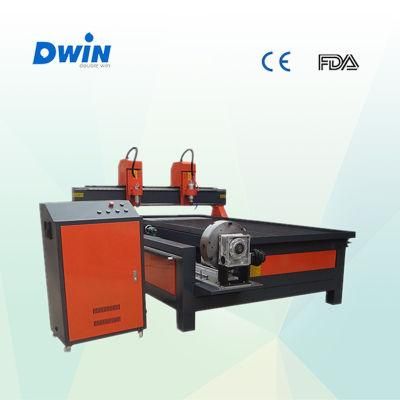

Model

DW1224 Wood CNC Router

X,Y,Z Working Area

1200*2400*200mm

Table Size

1320*3040mm

X,Y,Z Traveling Positioning Accuracy

±0.05/300mm

X,Y,Z Repositioning Positioning Accuracy

±0.05mm

Table Surface

Bakelite Vacuum Ttable (Option:T-slot table)

Frame

Welded structure

X, Y Structure

Rack and Pinion Drive,Rail Linear Bearings

Z Structure

Ball Screw, Hiwin Rail Linear Bearings

Max.Power Consumption (Without spindle)

2.0Kw

Max.Rapid Travel Rate

32000mm/min

Max.Working Speed

20000mm/min

Spindle Power Motor

4.5kw water cooling spindle

Spindle Speed

0-18000RPM

Drive Motors

Stepper system(Option:Servo System)

Working Voltage

AC220V/50/60Hz,1PH (Option: 380V 3PH)

Command Language

G Code

Operating System

DSP System (Option: Mach3 PC Software)

Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X,Y Resolution

<0.02mm

Software Compatability

Type3 software, Ucancam software

Temperature

0°C~45°C

Guarantee & After Sales Service:

1)   The machine guarantee period is 18 months.

2)   24 hours technical support by email or calling.

3)   Friendly English version manual and operation video CD disc.

Samples:

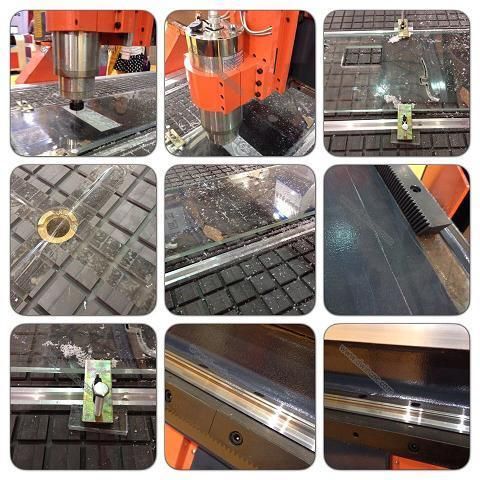

Accessories:

About company:
