Lacquered Wide Belt Sander Sanding Machine for Woodworking Machine
Qingdao Zhongding Machinery Co., Ltd.- Type：Belt Wood Sander
- Automatic Grade：Automatic
- Variable Speed：Variable Speed
- Certification：CE, ISO
- Customized：Customized
- Condition：New
Base Info
- Model NO.：ZDR-R630
- Color：Customized
- Gross Weight：1300kg
- Sliding Table：European Style
- Voltage：220V 1phase , 380V 3phase (Optional)
- Shipping Port：Qingdao
- HS：846420900
- Size of Sanding Belt：650*1900mm
- Working Air Pressure：0.5MPa
- Main Motor Power：16.87kw
- Feeding Speed：6-30m,Min
- Min. Working Length：350mm
- Max Working Width：630mm
- Transport Package：Wooden Box
- Specification：1700*1100*2050mm
- Trademark：QDZD
- Origin：China
- HS Code：8465930000
- Production Capacity：500sets,Month
Description
Basic Info.
Model NO. ZDR-R630 Color Customized Gross Weight 1300kg Sliding Table European Style Voltage 220V 1phase / 380V 3phase (Optional) Shipping Port Qingdao HS 846420900 Size of Sanding Belt 650*1900mm Working Air Pressure 0.5MPa Main Motor Power 16.87kw Feeding Speed 6-30m/Min Min. Working Length 350mm Max Working Width 630mm Transport Package Wooden Box Specification 1700*1100*2050mm Trademark QDZD Origin China HS Code 8465930000 Production Capacity 500sets/MonthProduct Description

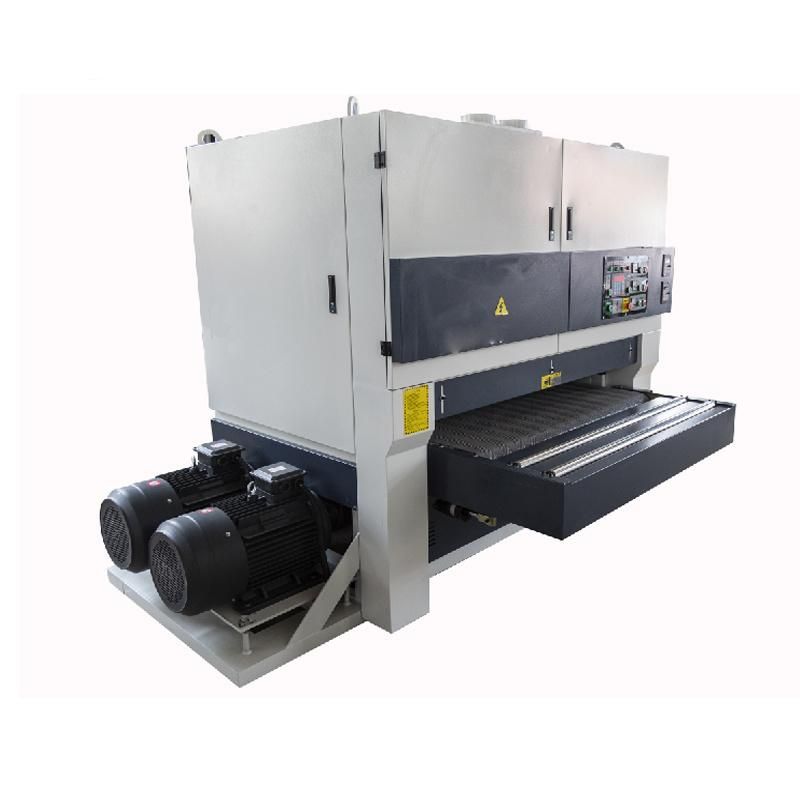

Lacquered wide belt sander sanding machine for woodworking machine
Technical Parameters
| Model | ZDR-R630 | ZDR-R1000 | ZDR-R1300 |
| Max working width | 630mm | 1000mm | 1300mm |
| Material thickness | 2.5-120mm | 2.5-120mm(option 2.5-160mm) | 2.5-120mm(option 2.5-160mm) |
| Min. Working length | 350mm(option250mm) | 350mm(option250mm) | 350mm(option250mm) |
| Feeding speed | 6-30m/min | 6-30m/min | 6-30m/min |
| Belt speed | Frequency control | Frequency control | Frequency control |
| Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
| Total power | 16.87kw | 20.25kw | 26.37kw |
| Working air pressure | 0.5mpa | 0.55mpa | 0.55mpa |
| Volume of dust collecting | 5000m³/h | 5000m³/h | 5000m³/h |
| Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
| Overall dimension (L*W*H) | 1700*1100*2050mm | 1900*1400*2050mm | 2100*2450*2050mm |
| Weight | 1300kg | 1800kg | 3200kg |
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
The Workshop

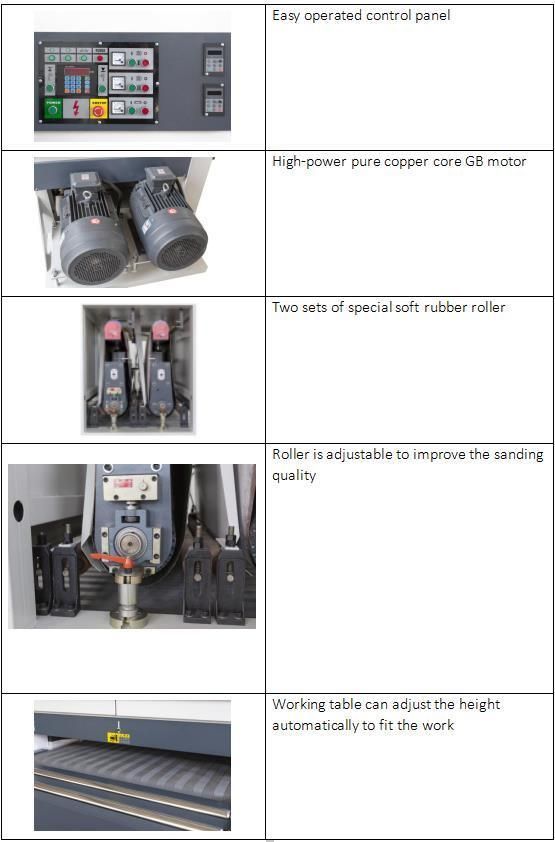

Product Details:
Customer Visiting:
Our Certificate:
The package:
