• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size(Mm)：1600*3100
• Engraving Area：1300*2500*200
• Spindle Power：3.0kw Water Cooling Spindle
• Spindle Rotate(Rpm)：6000~24000
• Table Surface：Vacuum and Tslot Combined
• Frame：Welded Steel Tube Structure
• Drive System：X-Y Axistrack and Pinion, Hiwin Linear
• Operating System：Syntec Control System
• Drive Mode：850W Yaskawa Servo System
• Software Environment：Wentai, Type3, Artcam
• Transport Package：Wooden Box
• Specification：CE ISO SGS
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：84649012
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Table Size(Mm) 1600*3100 Engraving Area 1300*2500*200 Spindle Power 3.0kw Water Cooling Spindle Spindle Rotate(Rpm) 6000~24000 Table Surface Vacuum and Tslot Combined Frame Welded Steel Tube Structure Drive System X-Y Axistrack and Pinion, Hiwin Linear Operating System Syntec Control System Drive Mode 850W Yaskawa Servo System Software Environment Wentai, Type3, Artcam Transport Package Wooden Box Specification CE ISO SGS Trademark FIRMCNC Origin Jinan, China HS Code 84649012 Production Capacity 30 Sets/Month

Product Description

Cheap 1325 Wood CNC Machine for Furniture Processing

1. Characteristic:
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration, and it is qualified for mass-producing of furniture with the vacuum holding way and dust collector.
We use top quality components for the machine, such as HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear and so on, to keep the machine in best condition even after working for many years.

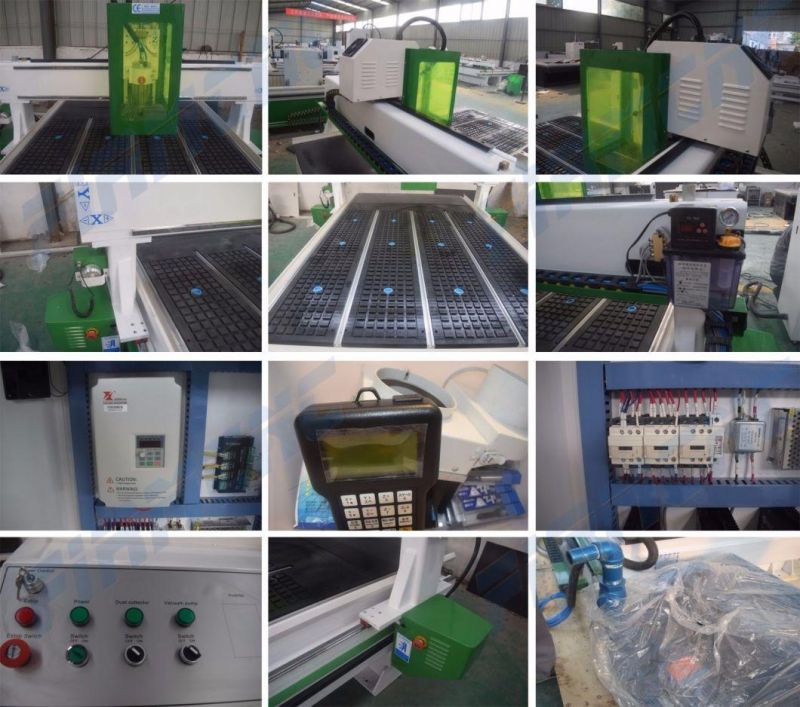

2. Top quality components
1) The machine's body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine's high precision.
3) Well-known HSD spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine's high speed and accuracy.
5) Perfect design and top quality accessories to minimize the machine's failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of
The accidental power outages.
7) High speed servo motors and drivers, and two motors for Y axis.


Technical specification

No.	Description	parameter
1	XYZ  working  area	1300mm*2500mm*200mm
2	Table  size	1450mm*2940mm
3	XYZ  travel  positioning  accuracy	± 0.03/300
4	XYZ  Repositioning  positioning  accury	± 0.03mm
5	Table  surface	Vacuum  and  Tslot  combined
6	frame	Welded  steel  tube  structure
7	drive  system  X-Y  axis	Rack  and  pinion, Hiwin  linear  rail  bearing
8	drive  system  Z  axis	Hiwin  linear  rail  and  bearing  Ball  screw
9	Max  power  consumption	3.5KW  without  spindle
10	Max  velocity	30000mm/min
11	Max  working  speed	25000mm/min
12	Spindle  speed	24000RPM
13	Drive  mode	850w  Yaskawa  servo  system
14	Working  voltage	AC380V/50/60Hz, 3Phs(Options; 220V, 3Phs)
15	Command  language	G  code
16	Interface	USB
17	Operating  system	Syntec  control  system
18	Flash  memory	128M
19	X-Y  resolution	< 0.03mm
20	Software  environment	Wentai,   type3,   artcam
21	Running  environment	Temperature: 0-45
22	Paking  size	3300mm*1900mm*1800mm
23	Net  weight	1750KG
24	Gross  weight	1980KG

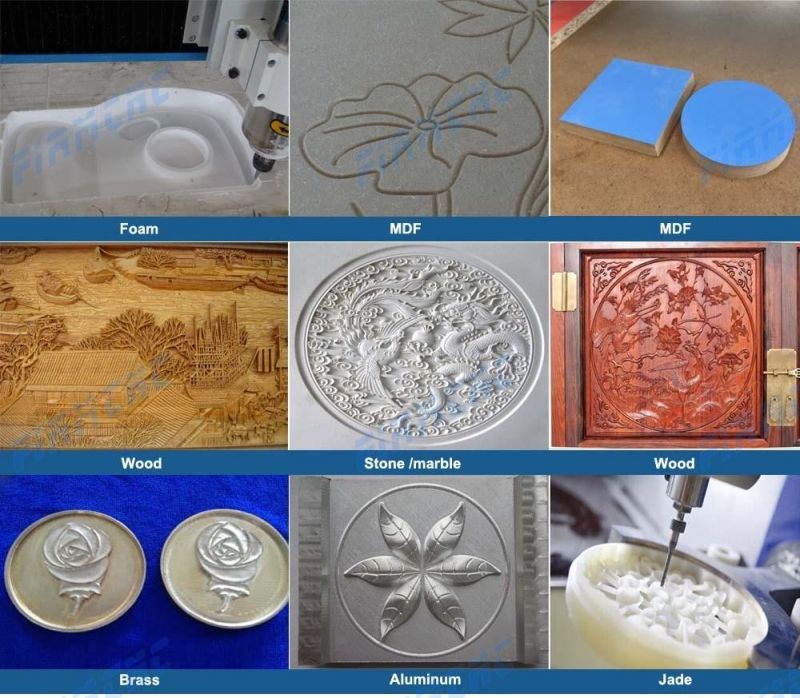

Application:
1. The advertising industry
wood cnc machine can engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration.
2. woodworking industry
wood cnc machine can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door, omposite door,
cupboard door and window, bedside cabinet, folding screen etc.
3. Artwork industry
wood cnc machine can process wooden craft, mural art of wood, artwork embossed, jewelery, cosmetics package, musical instrument.
4. Soft metal processing
wood cnc machine can process aluminum front panel, pop can, aluminum honeycomb panel, train car and aircraft interior decoration, bronze medal, copper mold.
5. Electronic industry
wood cnc machine can engrave electronic component, integrated circuit, electronic plastic case, electronic product model, circuit board, electronic light box, computer and mobile phone keyboard, engraving a varity of electronic products.

Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Service for wood cnc machine
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.

Other kinds of cnc router machines for your reference

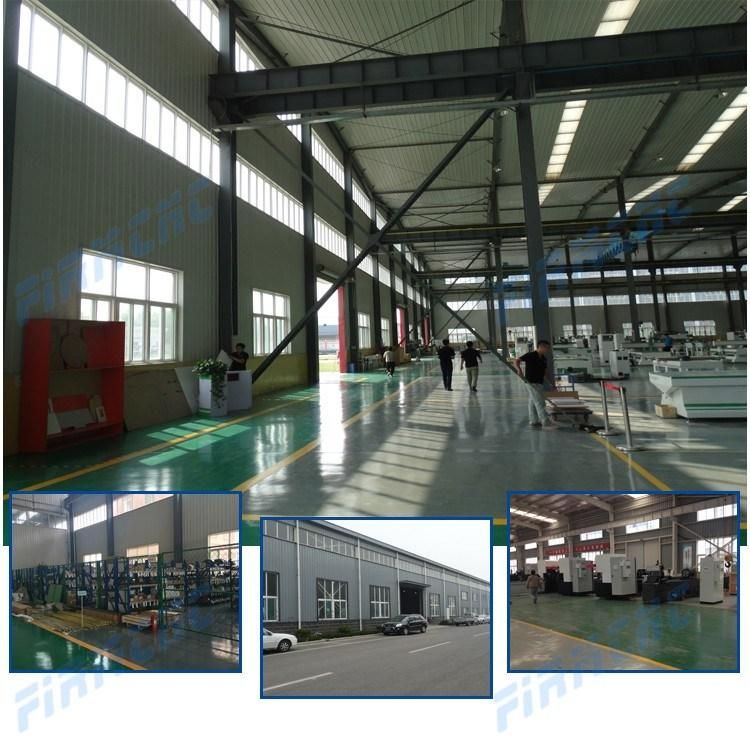

Our Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.

FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330        Fax : 0086-0531-69986330
Website:  http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091

Working size can be customized as your requirement
If you want to know more information about our products ,
please feel free to contact us and welcome to visit our factory !
