• Model NO.：BXQ1814,50HK
• Main Motor：2X11kw China Motor
• Servo Motor Power：7kw Mitsubishi Japan
• Body：Fine Cast Steel Body
• Auotmatic Hydraulic Knife Clamping Syste：N,Normal Mechanical Change Knife
• Double Roller Drive：by Gear
• Transport Package：Standard Export Sea-Worthy Packing
• Specification：Weight: 5500KGS
• Trademark：Metro
• Origin：China
• HS Code：8465960000
• Production Capacity：100set,Month

Basic Info.

Model NO. BXQ1814/50HK Main Motor 2X11kw China Motor Servo Motor Power 7kw Mitsubishi Japan Body Fine Cast Steel Body Auotmatic Hydraulic Knife Clamping Syste N/Normal Mechanical Change Knife Double Roller Drive by Gear Transport Package Standard Export Sea-Worthy Packing Specification Weight: 5500KGS Trademark Metro Origin China HS Code 8465960000 Production Capacity 100set/Month

Product Description

Plywood Wood Veneer Peeling Cutting Lathe Peeler

1.Main features:
1.2018 all new generation research & design SPECIAL FOR HARD WOOD.
2.Fastest veneer peeling speed can reach to 100M/MIN.
3.Save 40% - 60% of power, reduce production cost.
4.Veneer double sides smooth and thickness evenness less than 0.05mm.
5.Double motors rollers, speed stable, overcome the unstable Indian voltage.
6.Bigger power inverter and English language PLC control system.
7.Clipper inbuilt design, peeling and clipping at same time.
8.Automatic electrical lubrication system for all important mechanical parts.
9.Automatic air cylinders dropper for final log to save production time.
10.R87 harden helical gear speed reducer and Japan NSK bearings.
11.Automatic final piece veneer holder device.
12.Full closure oil immersed screws, wear-resisting, maintenance -free.
13.Exclusive manufacturer adopt the full closure oil immersed guide bar(quenching process treatment), all working life free maintenance, promise the machines feeding at most stable Condition, so that can get the best quality veneer.


2.Technical Parameters:

ITEM	Parameters	Remark
Max working length	1400mm	Roller length 1500mm
Working diameter range	22-500mm	Cross roller can be 20mm
Working speed range	20-82m/min	Frequency control
Veneer thickness	0.5-7.0mm	Double side smooth
Peeling knife size	1500X180X16mm	SENGANG(Japan tech)
Clipping knife size	1400X100X12mm	SENGANG(Japan tech)
Double rollers motor power	7.5KWX2 SETS
Single roller motor power	5.5KWX2 SETS
Screw feed motor power	7.5KW	Servo motor(LEAD)
Rotary clipper motor power	1.5KW	Servo motor(LEAD)
Rubber belt conveyor motor	1.5KW
Total motor power	36.5KW
Inverter power	39.7KW(30+7.5+2.2)	GTAKE BRAND
Double roller speed reducer	R87 harden helical X 2SETS
Single roller speed reducer	R87 harden helical X 2SETS
Screw feed speed reducer	R87 harden helical X 1SET
Rubber roller speed reducer	R87 harden helical X 1SET
Machine overall dimension	4900X1900X1550mm
Machine weight	6200KGS

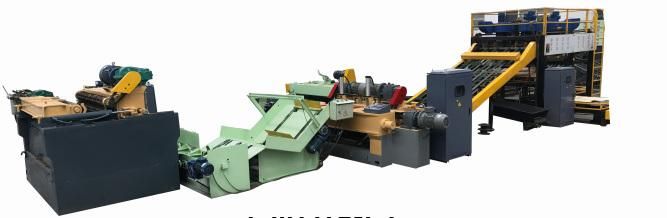

3.More Pictures:

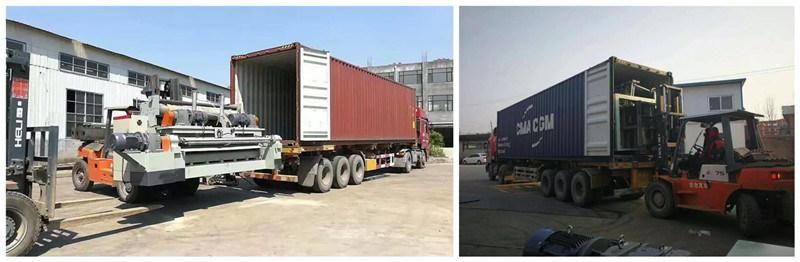

4.Packing and Delivery:

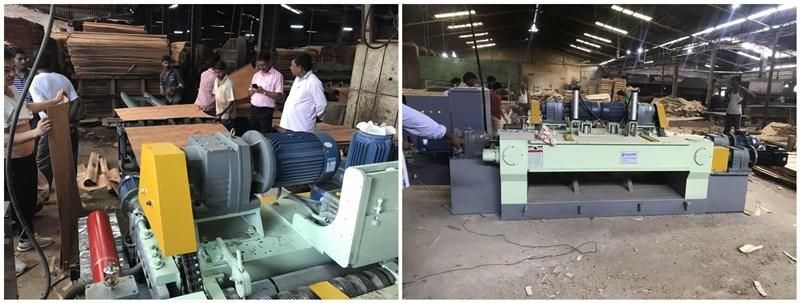

5.Working cases:




6.Client Satisfaction

It remains our prime aim to maintain offered machinery quality standards so as to garner multiple customers besides maintaining good terms with the old ones. Over the years we have been offering an unmatched quality product range and have successfully attained the trust and reliance of our esteemed clients.

Welcome to consult ~
