• Model NO.：JBT102b
• Panel Thinkness：0.3-3.0mm
• Min.length panel：40mm
• Min.width panel：40mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Min Edge Diameter：40mm
• Motor Power：15W
• Banding Width：10-45mm
• Feeding Speed：5m,Min
• Operating Temperature：120-170ºC
• Total Power：765W
• Glue Pot Volume：270ml
• Weight：9.5kgs
• Machine Size：380*330*380mm
• Independent Packing Size：380*300*420mm
• Transport Package：Wooden Case
• Specification：3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets

Basic Info.

Model NO. JBT102b Panel Thinkness 0.3-3.0mm Min.length panel 40mm Min.width panel 40mm Manufacturing Principles Glue Tank Overhead Customized Customized Min Edge Diameter 40mm Motor Power 15W Banding Width 10-45mm Feeding Speed 5m/Min Operating Temperature 120-170ºC Total Power 765W Glue Pot Volume 270ml Weight 9.5kgs Machine Size 380*330*380mm Independent Packing Size 380*300*420mm Transport Package Wooden Case Specification 3CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets

Product Description

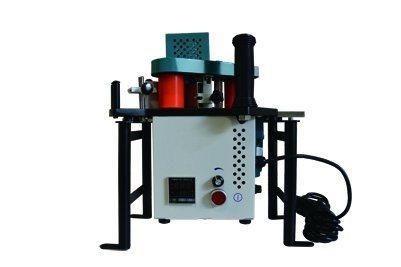

 Portable Edge Banding MachineAutomatic Edge Banding Machine

Type	JBT80
Min edge diameter	40 mm
Feeding speed	5 m/min
Banding thickness	0.3-3.0 mm
Banding width	10-45 mm
Operating temperature	120-170ºC
Motor power	15 w
Total power	765 w
Glue pot volume	270 ml
Weight	9.5 kgs
Machine size	380*330*380 mm
Independent packing size	380*300*420 mm
Whole package size	465*430*515 mm
0-45°Tilting	no
Double Surface Gluing	no


Solutions:

The perfect solution for edge banding of all sizes ! The edge bander can be used for large sized wooden boards and half-finished wooden products. The board can be fixed in place while the hand-held edge bander proceeds.It can also be used for small sized wooden boards while the machine is fixed onto a conveyor belt or table with stand. The process of edge banding is the same for normal sized loads.

Product details:





Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE&ISO 9000 Certificate
