• Model NO.：JBT90
• Min.width panel：45mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Non-Customized
• Operating Temperature：120-170ºC
• Glue Pot Volume：270ml
• Weight：9.5kgs
• Motor Power：15kw
• Machine Size：380*330*380mm
• Independent Packing Size：380*300*420mm
• Whole Package Size：465*430*515mm
• Total Power：765W
• Transport Package：Wooden Case
• Specification：0.05CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Model NO. JBT90 Min.width panel 45mm Manufacturing Principles Glue Tank Overhead Customized Non-Customized Operating Temperature 120-170ºC Glue Pot Volume 270ml Weight 9.5kgs Motor Power 15kw Machine Size 380*330*380mm Independent Packing Size 380*300*420mm Whole Package Size 465*430*515mm Total Power 765W Transport Package Wooden Case Specification 0.05CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

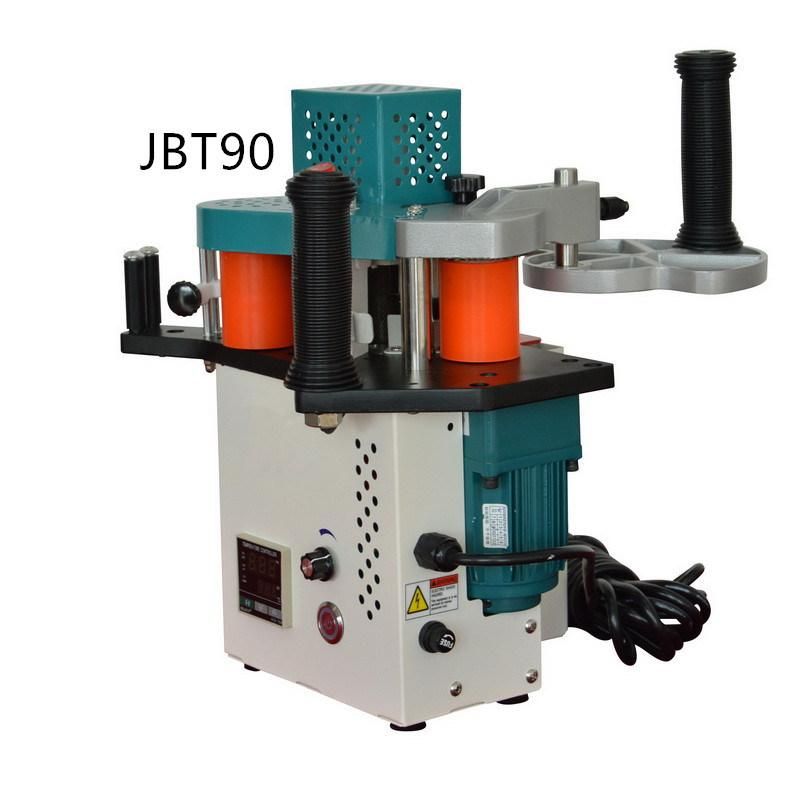

JBT90 Portable Edge Banding Machine
Technical Specification:


Type	JBT90
Min edge diameter	40 mm
Feeding speed	0.5-3.5 m/min
Banding thickness	0.3-3.0 mm
Banding width	10-45 mm
Operating temperature	120-170ºC
Motor power	15 w
Total power	765 w
Glue pot volume	270 ml
Weight	9.5 kgs
Machine size	380*330*380 mm
Independent packing size	380*300*420 mm
Whole package size	465*430*515 mm
0-45°Tilting	no
Double Surface Gluing	no

Feature:

1. The perfect solution for edge banding of all sizes !
2. The edge bander can be used for large sized wooden boards and half-finished wooden products.

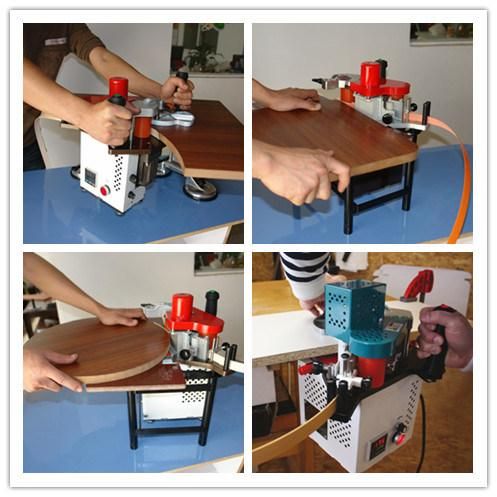

3. The board can be fixed in place while the hand-held edge bander proceeds.
4. It can also be used for small sized wooden boards while the machine is fixed onto a conveyor belt or table with stand.
5. The process of edge banding is the same for normal sized loads.




Product Details:









Certificate:





Our company:




Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
