• Model NO.：JCT1530L
• Customized：Customized
• Condition：New
• Color：Customized
• Spindle Power：9kw Atc Air Cooled Spindle
• Application：Wood Styrofoam Foam Sculpture Statue
• Material：Wood MDF Styrofoam Foam EPS Plastic
• Machine Type：4 Axis 3D CNC Router, 3D CNC Router
• Transport Package：Wooden Case with Steel Frame
• Specification：1500mm*3000mm*500mm
• Trademark：CHAODA
• Origin：Linyi, Shandong, China
• HS Code：8464909000
• Production Capacity：200set,Month

X,Y,Z,working space

1500*3000*500mm

Rotary working space

0mm-1000mm diameter;  2500mm length

Lathe bed structure

T-extrusion,Thick Steel frame

Table surface

Aluminium T-slot with clamps

X structure

Rack and pinion, HIWIN linear square rail

Y structure

Rack and pinion, HIWIN linear square rail

Z structure

Ball screw, HIWIN linear square rail

Resolution

±0.02mm

Reposition accuracy

±0.05mm

Max. rapid

0-60000mm/min

Max. working speed

0-30000mm/min

Spindle power

9kw Air cooling ATC spindle

Tool magazine

Linear type auto tool changer system,8 tools

Spindle speed

0-24000RPM

Working mode

Japan YASKAWA Servo motor and driver

Working voltage

AC380V ,3Ph,50HZ/60Hz

Command code

G code(*uoo,*nc,*mmg, *plt)

Operating system

4 axis WEIHONG control system

Collet

ER32

Software

ARTCAM/PowerMill

3D CNC Router Specification:
1. 9KW HSD Air cooled spindle with 8pcs tool magazine can automatically change tools.
2. Rotary 1000mm(Diameter)*2500mm(Length) for 3d 4d foam wood stone sculpture statue.
3. Extra removable table for panel foam wood stone relief or other products carving.
4. For option, spindle can rotate at angle from 0-180 degree, for 3d mould statue.

3D CNC Router Samples:


Related 3d scanner:

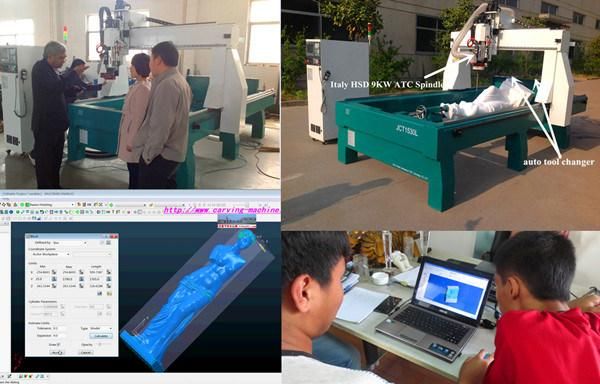

Free Customer Training & Testing:


Welcome to Visit Our Factory:
Linyi CHAODA International CNC Technology CO.,Ltd is a professional manufacturer of CNC Router Machine, etc.. Our factory was established in 2002 and covers 40000 Square meters.

We have experienced and professional engineers who devote themselves to machines' research, development, production, and after- sale service. We provide cnc machines 3 axis, 4 axis, 5 axis cnc, laser engraving machine, plasma cutting machine and 3d scanner.

Any need, feel free to contact us and we'll provide precise machine as soon as possible.
