Woodworking Machinery

Dining Chair Sanding Line

Qingdao Samac International Trading Co., Ltd.
  • Transport Package:Plastic Film
  • Specification:sanding line
  • Trademark:SAMACH
  • Origin:China

Base Info

  • Model NO.:sander
  • Production Capacity:40sets,Month

Description

Tianyang Motor Hengxing reduction gearsInfeed Speed6-15m/minMin Working Length380mmMax Working Width80mmMax Working Height80mmInfeed Wheel Diameter100mmTaiwan MeinaPneumatic ComponentsTaiwan AirtacVFDSHIHLINSpindle BearingNSKButtons ContactorsLG APT famous brandSanding Belt Length1520X150mmConnection typeButt jointDust Collect Pipe Diameter100mm 2pcs
This machine is mainly aimed at the grinding and processing equipment of the back feet of the dining chair. The fuselage is made of sheet metal forming and welding, with good structure and small deformation. Each processing position is processed by precision processing. With the humanized setting of clamping feeding device, the relative position of grinding frame and feeding wheel can be adjusted on one side of the production line; the middle position of clamping feeding device can be controlled by pneumatic control and electrical control, which is convenient, convenient and highly plasticity. The abrasive belt is variable frequency speed regulation, which meets the needs of different environments.

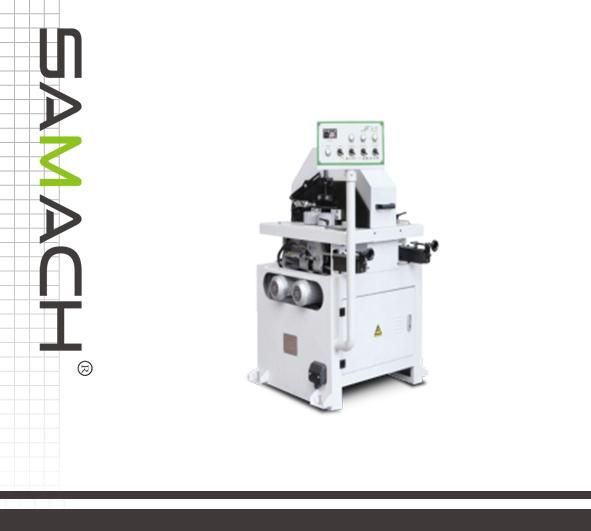

 MSQ370  Curved surface chamfering machine
Dining Chair Sanding Line
Spindle Power 3 KW 1pc
Infeed Motor Power 0.18KW
Infeed Speed 6-15m/min
Min working Length370mm
Max working Width80mm
Max Working Height80mm
Infeed Wheel Diameter100mm Taiwan Meina
VFDSHIHLIN
Spindle Bearing:NSK
Buttons ContactLG APT famous brand
Sanding Belt Length1240X65mm
Connection typeButt joint
Dust Collect Pipe Diameter100mm 1pc

This machine is mainly for grinding the edges of front and rear feet of dining chairs. The fuselage is made of sheet metal forming and welding, with good structure and small deformation. Each processing position is processed by precision processing. Humanized clamping feeding device can adjust the relative position of grinding frame and feeding wheel on one side of the production line; convenient and high plasticity!

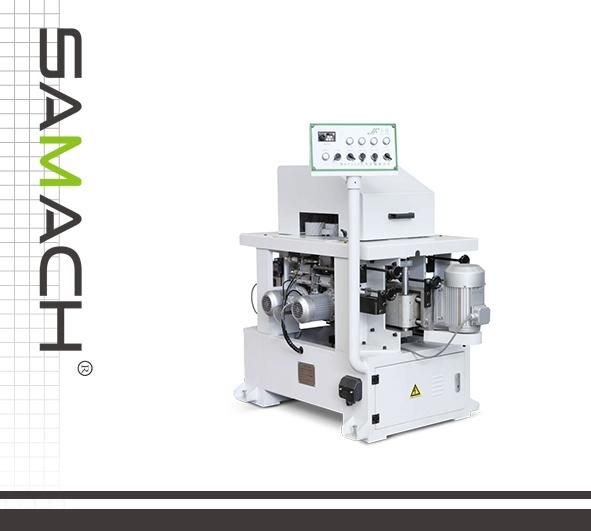

 MSP330Z   Double Vertical Polishing Sander
Dining Chair Sanding Line
Spindle Power 1.5 KW 2pc
Infeed Motor Power 0.18KW 4pcs
Infeed Speed 6-15m/min
Min working Length330mm
Max working Width80mm
Max Working Height80mm
Infeed Wheel Diameter200mmTaiwan Meina
VFDSHIHLIN
Spindle Bearing:NSK
Buttons ContactLG APT famous brand
Connection typeButt joint
Dust Collect Pipe Diameter100mm 2pc

This machine is mainly aimed at polishing the front and rear feet of the dining chair on two vertical planes. The fuselage is made of sheet metal forming and welding, with good structure and small deformation. Each processing position is processed by precision processing. With the humanized setting of clamping feeding device, the relative position of grinding frame and feeding wheel can be adjusted on one side of the production line; the middle position of clamping feeding device can be controlled by pneumatic control and electrical control, which is convenient, convenient and highly plasticity.

MSP330L  Double Flat Surface Polishing Sander
Dining Chair Sanding Line
Spindle Power 1.5 KW 2pc
Infeed Motor Power 0.18KW 4pcs
Infeed Speed 6-15m/min
Min working Length330mm
Max working Width80mm
Max Working Height80mm
Infeed Wheel Diameter200mm Taiwan Meina
VFDSHIHLIN
Spindle Bearing:NSK
Buttons ContactLG APT famous brand
Connection typeButt joint
Dust Collect Pipe Diameter100mm 2pc

This machine is mainly used for polishing the front and rear feet of the dining chair. The fuselage is made of sheet metal forming and welding, with good structure and small deformation. Each processing position is processed by precision processing. Humanized clamping feeding device can adjust the relative position of grinding frame and feeding wheel on one side of the production line; convenient and high plasticity!
