• Model NO.：xinlihui
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO, FDA
• Power(W)：37kw
• Weight：90ton
• Warranty：Offer Free Spare Parts and Service Within 12 Month
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Control System：PLC
• No-Load Closing Time：3s
• Labors：2,Every Line
• Hot Press Cylinder Diameter/No：320mm,6PCS or 360mm,6PCS
• Direction of Feeding Plate：Horizontal
• Delivery Detail：30 Days After Receiving 30% Deposit
• Item：Short Cycle Press for Chipboard Sheets
• Transport Package：Standard Package, Be Made According Cutomer Need
• Specification：28000*4000*4070mm
• Trademark：XINLIHUI
• Origin：Shandong, China (Mainland)
• HS Code：84659100
• Production Capacity：12

NONameQuantity1Driven roller conveyor1 set
 2Hydraulic lifter with rollers
 1 set
 3Board pusher
 1 set
 4Cleaning brusher
 1 set
 5Alignment roller table1 set
 6Vacuum carrier for loading
 1 set
 7Paper frame
 1 set
 8Belt conveyor loader
 1 set
 9Single opening press
 1 set
 10Vacuum pad unloader
 1 set
 11Auto trimmer for 4 sides edges
 1 set
 12Vacuum carrier with inspector
 1 set
 13Alignment roller table
 1 set
 14Stacking roller for good boards
 1 set
 15Stacking table for defective boards
 1 set

3, Main technical data of short cycle laminating hot pressNo.NameParameterRemark1inished board size2440 x 1220 mm 2Working pressure16000 KN(1600T) 3Feeding directionFrom length side 4Size of heating platen1400×2600×140/100 mmMade in Kunshan5Daylight opening200 mm 6Main cylinder
(Diameter, stroke)Ф320mm×8, 200 mmMade in Wuxi
 7Lifting cylinder
(Diameter, stroke)Ф63mm×4, 200mmMade in Wuxi8Oil pressure of  hydraulic
system<=25Mpa
  9Closing time
 <=2 s 10Temperature of heating plate<=210ºC
  11Temperature accuracy of
heating platen
 ±2ºC
  12Heating medium
 Heat transfer oil
 Prepared by buyer
 13Heat energy allocation
 40×10  kcal/h4Boiler prepared  by buyer14Accuracy of plane
 0.2 mm
  15Main frame thickness60 mm
  16Motor power
 30kw

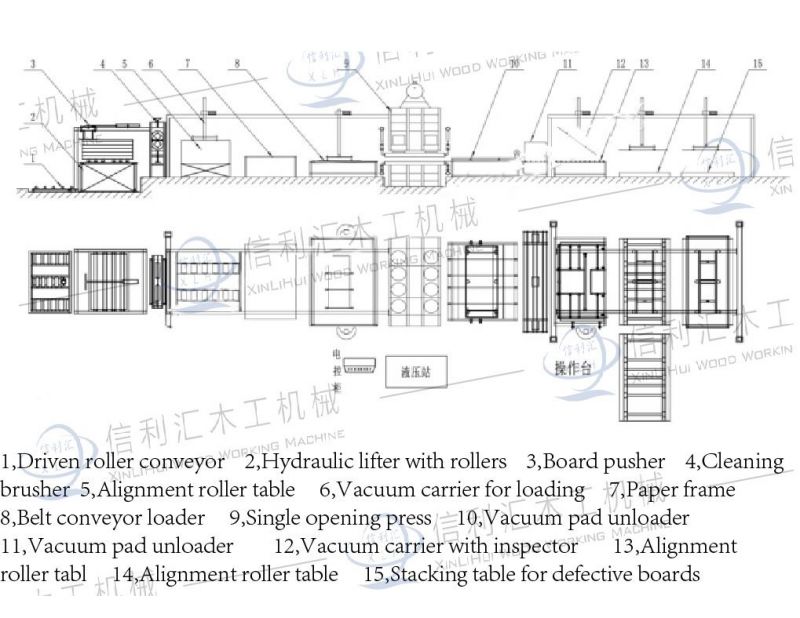

4, Flow Chart of Production Line

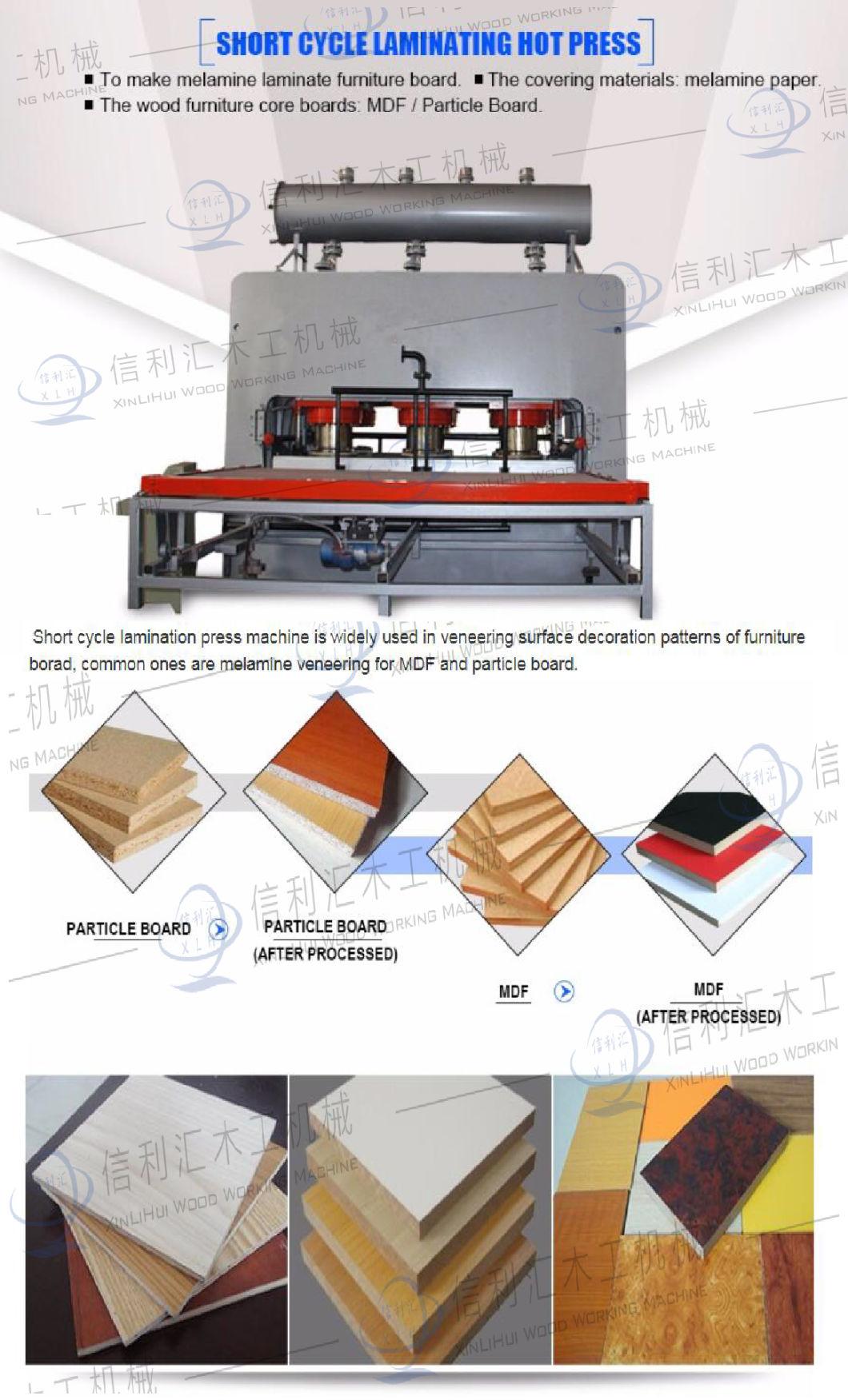

5, Production line pictures details:

6 Other similar production line and Sample show
