ZICAR MJ6230B table saw panel sliding table panel saw

JAYA INTERNATIONAL CO., LTD.
  • Type:Table Panel Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:CNC
  • Automatic Grade:Automatic
  • Precision:High Precision

Base Info

  • Model NO.:MJ6230B
  • Certification:CE
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • Max incising length:2550mm
  • Max incising thickness:48mm
  • Main blade motor power:5.5kw
  • Outer diameter of main blade:300mm
  • Inner diameter of main blade:30mm
  • Revolving speed of mian blade:4700rpm
  • Outer diameter of secondary blade:120mm
  • Inner diameter of secondary blade:20mm
  • Revolving speed of secondary blade:6700rpm
  • Cutting speed:15m,min
  • Returning speed:15m,min
  • Air pressure:0.6MPa
  • Machine outline size:1000X4544X1350mm
  • Total power:7.5kw
  • Net weight:about 1700kg
  • Transport Package:Plywood Cases
  • Specification:5900*3500*1800mm
  • Trademark:ZICAR
  • Origin:China
  • HS Code:8465910000
  • Production Capacity:500sets,Month

Description

Basic Info.

Model NO. MJ6230B Certification CE Customized Customized Condition New Color Customized Max incising length 2550mm Max incising thickness 48mm Main blade motor power 5.5kw Outer diameter of main blade 300mm Inner diameter of main blade 30mm Revolving speed of mian blade 4700rpm Outer diameter of secondary blade 120mm Inner diameter of secondary blade 20mm Revolving speed of secondary blade 6700rpm Cutting speed 15m/min Returning speed 15m/min Air pressure 0.6MPa Machine outline size 1000X4544X1350mm Total power 7.5kw Net weight about 1700kg Transport Package Plywood Cases Specification 5900*3500*1800mm Trademark ZICAR Origin China HS Code 8465910000 Production Capacity 500sets/Month

Product Description

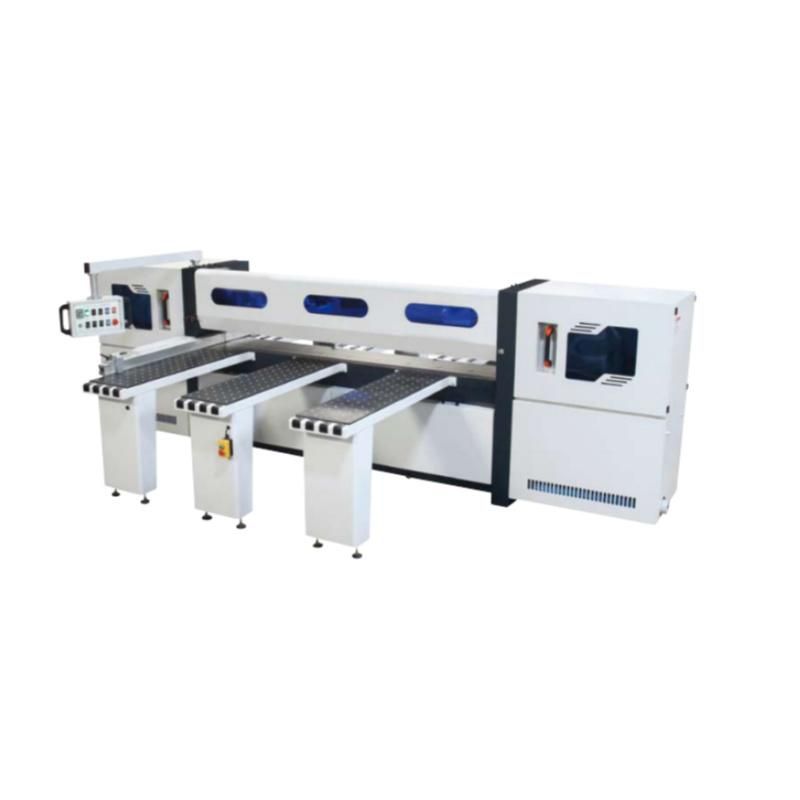

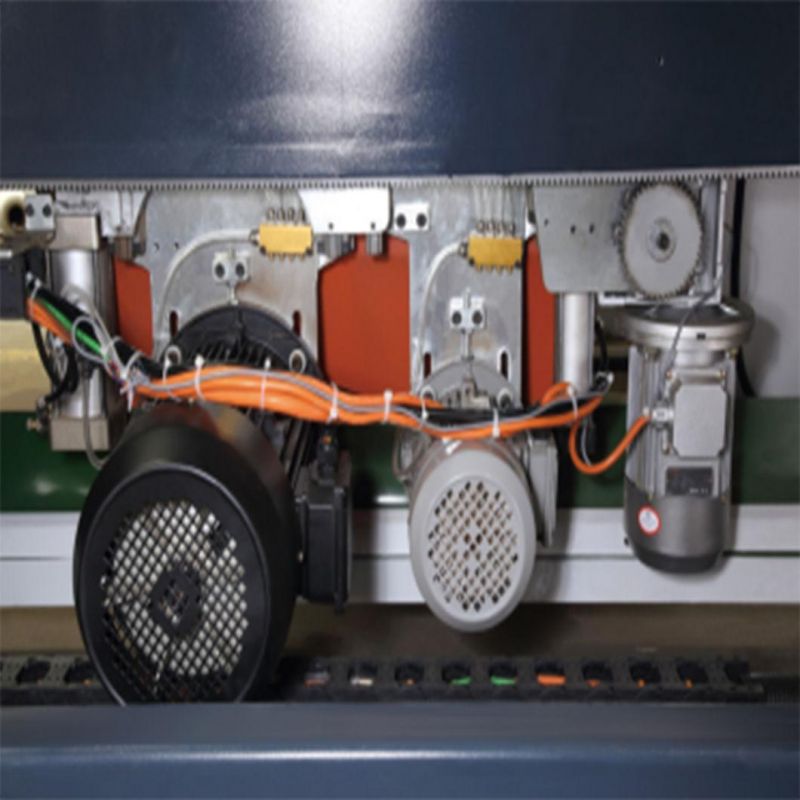

ZICAR Industrial Automatic Computer Panel Saw MJ6230BZICAR MJ6230B table saw panel sliding table panel sawFeatures1.German body technology is used to drive the saw body of the machine body, the perfect combination of reducer control and rack and pinion transmission, the cutting accuracy is within ± 0.15, and the automatic positioning sawing stroke can be realized according to different sawing widths
2.Special design which increasing the cutting speed, reducing the load of the saw blade is more durable and stable.
3.Taiwan Yonghong PLC, Schneider contactors and wiring, high quality, stable and durable.
4.The steel belt square rail is hardened and hard to deform, high efficiency and dustproof, stable operation and higher precision
5.Feeding protection, overtravel protection, emergency stop protection, limit limit, air pressure alarm, safety door guard, fueling system alarm, etc.
Product Parameters
ModelZICAR brand MJ6230B
Max.incising length3000mm
Max.incising thickness48mm
Main blade motor Power5.5Kw
Outer diameter of main bladeΦ300mm
Inner diameter of main bladeΦ30mm
Revolving speed of main blade4700rpm
Outer diameter of secondary bladeΦ120mm
Inner diameter of secondary bladeΦ20mm
Revolving speed of secondary blade6700rpm
Cutting speed15m/min
Returning speed15m/min
Air pressure0.6Mpa
Machine outline size1000x4544x1350mm
Total Power7.5Kw
Net weightabout1700Kg
