• Model NO.：JZ-D-155
• Brand Name：Jianzhong
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Roller Drivingpower：11kw,7.5kw
• Log Length：1300mm
• Weight：3.5t
• Delievery Time：20 Days
• Speed：50m,Min
• Output：30m^3,Day
• Cylinder：800mm*2PCS
• Total Power：22kw
• Dimension：4000*1600*1800mm
• Log Processing：500*1400mm
• Transport Package：Container
• Specification：steel
• Trademark：JZ
• Origin：China
• HS Code：8479899990
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. JZ-D-155 Brand Name Jianzhong After-Sales Service Engineers Available to Service Machinery Overseas Roller Drivingpower 11kw/7.5kw Log Length 1300mm Weight 3.5t Delievery Time 20 Days Speed 50m/Min Output 30m^3/Day Cylinder 800mm*2PCS Total Power 22kw Dimension 4000*1600*1800mm Log Processing 500*1400mm Transport Package Container Specification steel Trademark JZ Origin China HS Code 8479899990 Production Capacity 1000 Sets/Year

Product Description

  Brief Description:

1.The hydraulic driven feed mechanism can be fast and efficient completion of the logs remove the bark to save labor and raise working efficiency.

2.The transmitting mode is ball screwing ( servo motor supply the power to gearbox, gearbox transmit the torque to ball screw, then drive the tool carriage forward and back).

3.It uses hydraulic knife assembling system, so can reduce the labor need and increase the productivity.

4.Big-diameter wear-resistant and grooved roll with bark to increase the barking speed.

5.High quality steel profile to ensure the stability.

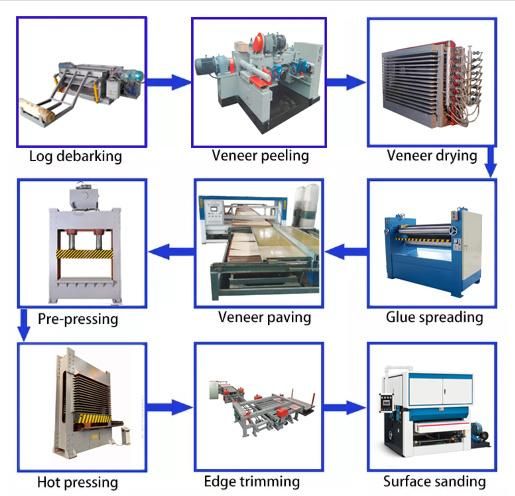

Production line:






Product Parameters:


Log dimension processing (D*L)	500*1400 mm
Rotary knife specification (L*W*T)	1500*140*12.7 mm
Diameter of rollers	2*200mm,1*150mm
Line speed	50m/min
Reference output	30m3/day
Hydraulic system power	5.5kw
Roller driving power	11kw,7.5kw
Total power	24kw
Feeding cylinder	800mm*2
Product dimension	4000*1600*1800 mm
Weight	3.5T
Payment terms	T/T 30%,Balance before leave factory
Delievry time	In 20days

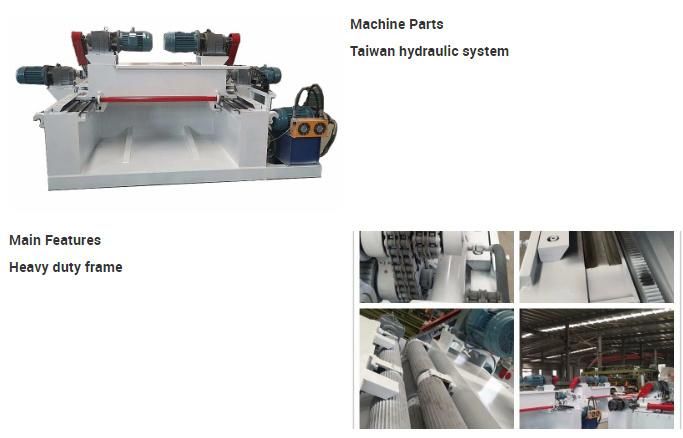

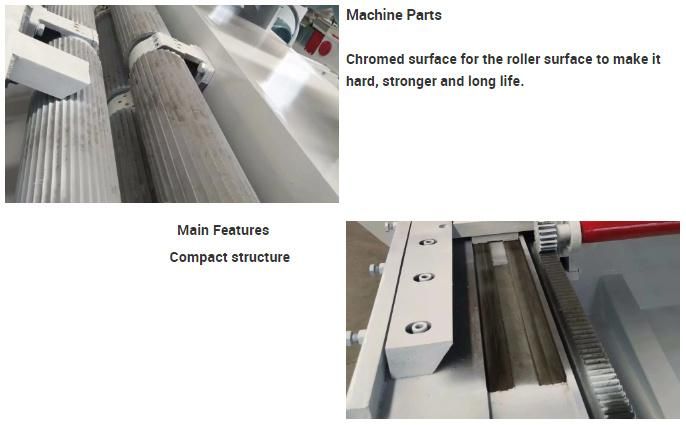

Detail images:






Certifications:

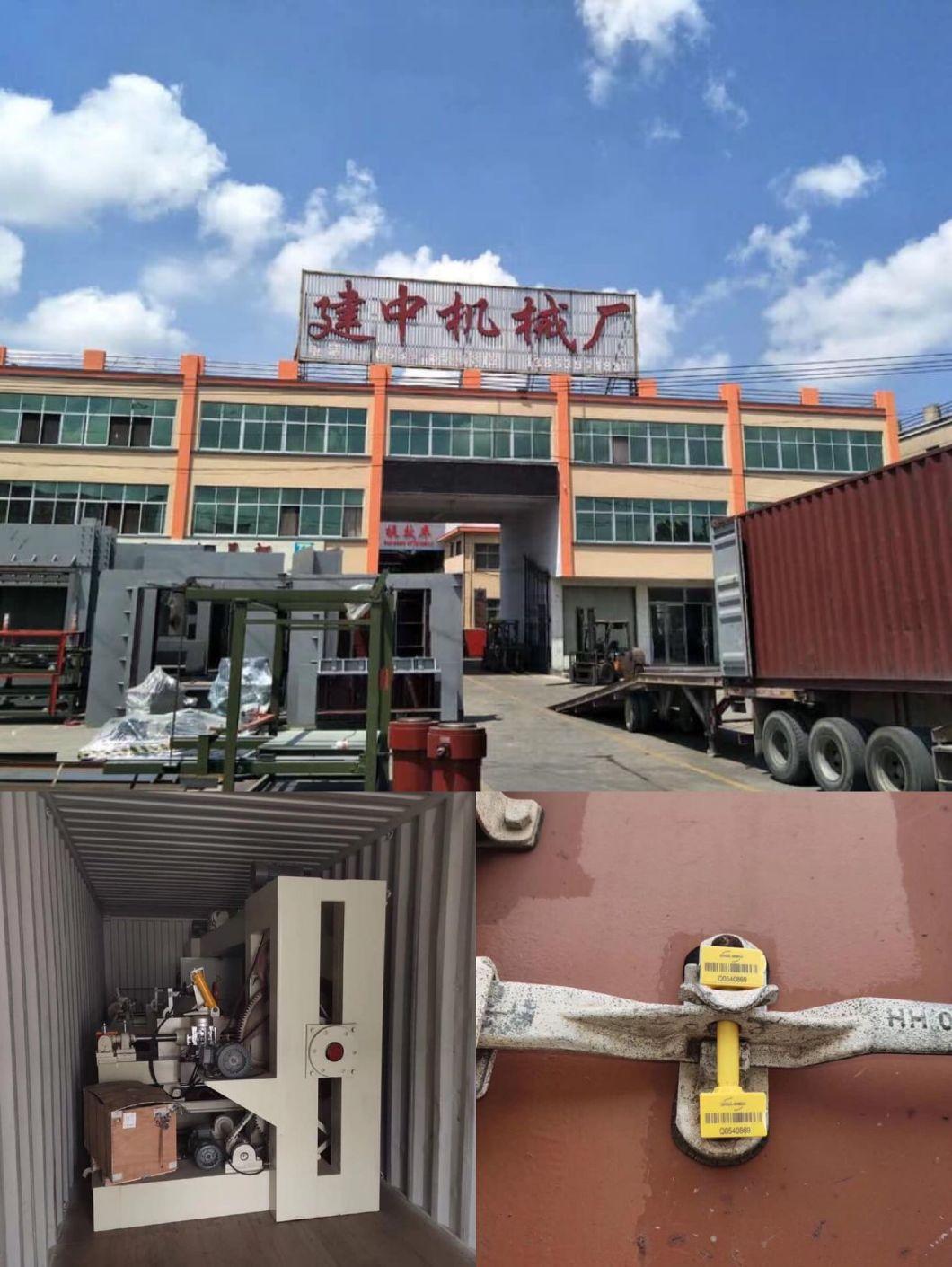

Packing&Shipping:






Serivice:

There are complete Pre-sale services, After-sales service, Technical service and communication, Delivery. Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.

1. All kinds of mold can be made by customer's requirements.

2. All price are based on FOB, QINGDAO, China.

3. Payment: by T/T 30% down payment, 70% upon mchinery completion.

4. Delivery: After finishing all the payment .

5. All the parameters above just for reference, for they are updating all the time.

6. Package: Standard packing.

7. Warranty: All the machine enjoys one year's warranty, in this period.

Any problems of machine, please feel free to contact us. We will try our best to make it.

8.Engineers available to service machinery overseas;

For the installation, seller will send the drawing for fabrication on site. Seller shall send
engineers to guide installation. Buyer shall supply all the necessary help during
installation. Air tickets and accommodation will be borned by buyer, our engineers should be paid 100USD per day.

By the way,our product can be customized according to customer requirements,I am very happy to rechieve your consultation.

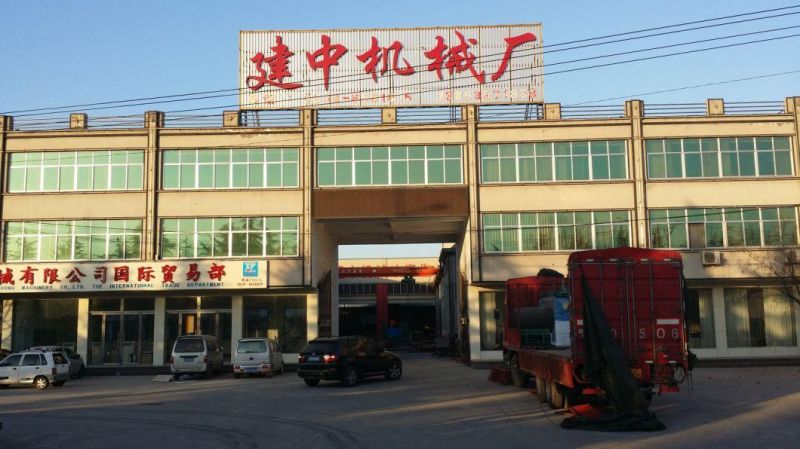

About us:

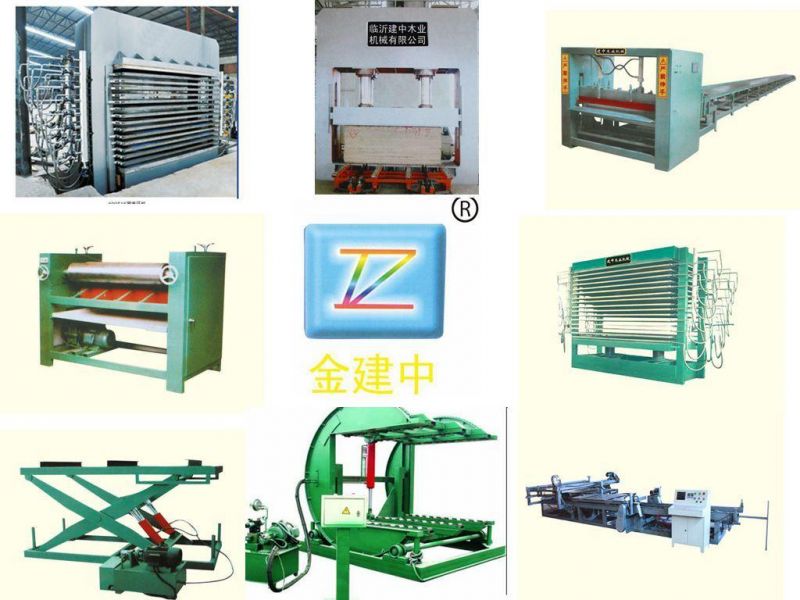

Our factory was founded in 1998, has 20 years of experience in production and research and development, the existing staff of 500 people. Industry and trade integration enterprise, specializing in the production and sales of aluminum-plastic plate, steel structure, plywood, construction template and other building materials. JIANZHONG group sincerely look forward to cooperating with you!

We have a team rich in the spirit of innovation, professionaldesign team, excellent customer service personnel. Currently, commitment to the development of automationcontrol technology research, to supply more efficient andintelligent products to metropolitan areas. And can becustomized products according to your request. Productsare widely used in plywood each working procedure, is themost outstanding in the automation industry.
