• Model NO.：DW1325
• Trademark：Dwin Made In China
• Origin：Jinan City, Shandong Province
• Production Capacity：15 Sets Per Month

Description

Parameter

X, Y, Z Working Area

1300*2500*200mm

Table Surface

T-slot working table/vacuum suction working table

Structure

10-12mm industrial class square tube strong structure

X Y Z Structure

Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel;

All axis Sweden SKF group ABBA linear guide and rails, 20#

Max. Working Speed

30000m/min

Spindle

Original Italy HSD 7KW Air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

FL118 bigger stepper motor and YAKO2811 driver

Inverter

Taiwan DELTA 7.5KW inverter

Command Language

G Code

Control System

RichAuto DSPA11 handle controller with USB port

Computer Interface

USB

Lubrication

Automatic Lubrication system

Tool sensor

Manual tool sensor calibration

X, Y Resolution

<0.01mm

Spare parts

Japan OMRON limit switch for X, Y, Z axis;

Highly flexible towline, fire-resistant double-sheathed Shanghai Cardiff cable;

French Schneider electric parts;

Independent control box;

1.5KW Double bags dust collector with CE Certificate;

Software Compatibility

Artcam 2012 software for free, (Option: Artcam Type3 Software)

Working voltage

380V/50Hz/3pH

Accessories (for free)

1 Tool Box 1

2 Woodworking Knife All type 21 Different size

3 collet 3.17, 4, 6, 12.7 4

4 Allen wrench M6 1

5 Open-end wrench 27-30 45-52 2

6 Certificate, CE

7 Adjustment screw 4

8 Clamps 8

9 Spanner, 3, 4, 5, 6mm, 4

10 Fuse core 2

12 Software CD 1

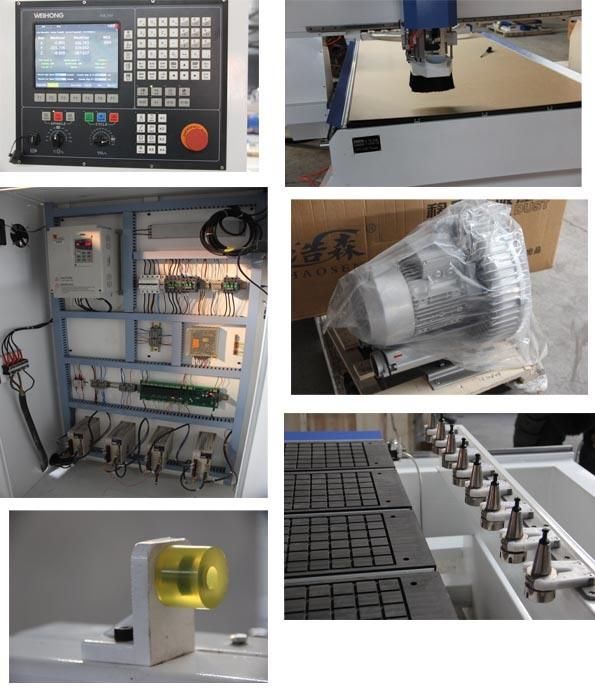

1325 woodworking cnc router optional parts

1. Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.

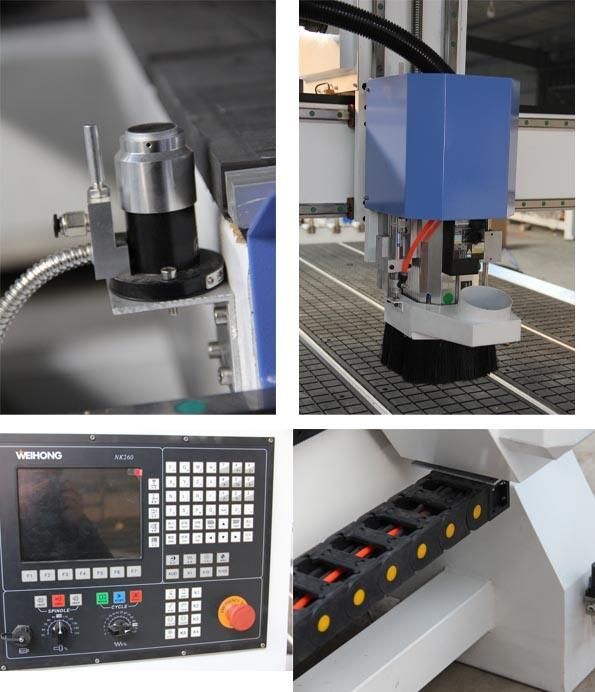

2. Spindle cover and Dust collector
They are designed for human operation protection and promise clean table surface, save maintenance time for you.
3. Pump
We can provide vacuum pump or water circulation pump for your choice.
4. Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.
We can also provide other optional parts according to your needs.

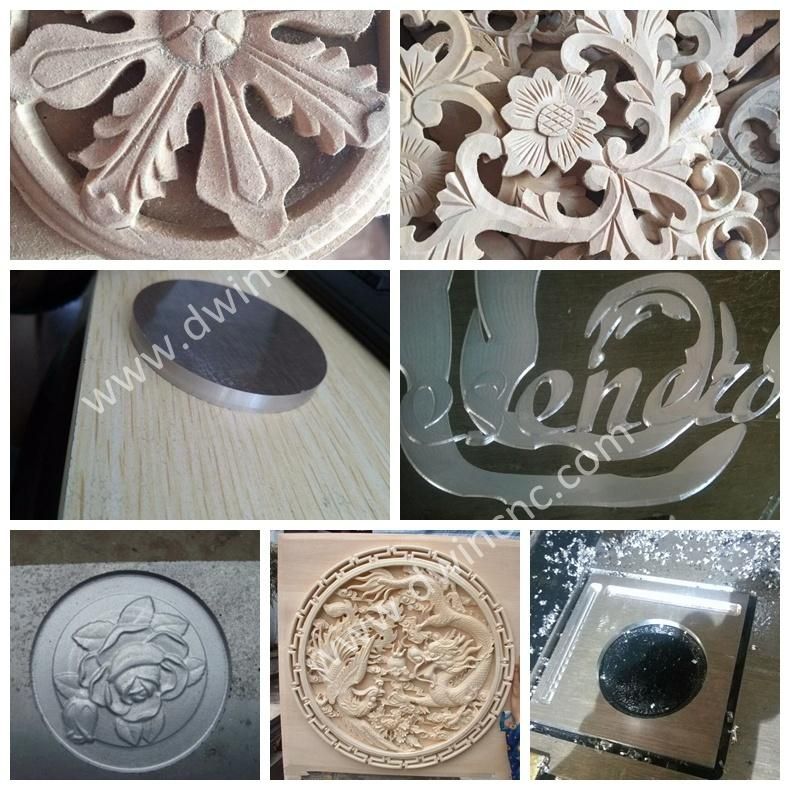

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

Wood crafts; Gift box; Jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
