Woodworking Machinery

1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router

Shandong Guandiao CNC Equipment Co., Ltd.
  • Warranty:Support
  • Condition:New

Base Info

  • Model NO.:GD1325
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V
  • Z Axis Size:<500mm
  • 3D Working Size:Diameters0-400mm Length:0-2000mm
  • Table Structure:Steel Structure
  • Z Structure:Germany Tbi Ball Screw
  • Spindle:3.2kw Water Cooling.24000rpm,Min
  • Driver Motor:China Steppor Motor and Leadshine Driver
  • Inverter:Fuling or Sunfar
  • Control System:N Studio,DSP
  • Working Voltage:380V,3pH,50Hz
  • Command Code:G Code
  • Collet:ISO30
  • Software Compatibly:Artcam,Artengraver,Type3,V9,Jd Paint
  • Running Temperature:0-45 Centigrade
  • Relative Humidity:30%-75%
  • Transport Package:Plywood Packing
  • Specification:1300*2500mm
  • Trademark:Guandiao
  • Origin:Jinan
  • HS Code:84659900
  • Production Capacity:10000 Sets,Year
  • Package size per unit product:3.20cm * 2.20cm * 1.70cm
  • Gross weight per unit product:1200.000kg

Description

Basic Info.

Model NO. GD1325 Certification ISO, CE CNC or Not CNC Voltage 380V Z Axis Size <500mm 3D Working Size Diameters0-400mm Length:0-2000mm Table Structure Steel Structure Z Structure Germany Tbi Ball Screw Spindle 3.2kw Water Cooling.24000rpm/Min Driver Motor China Steppor Motor and Leadshine Driver Inverter Fuling or Sunfar Control System N Studio/DSP Working Voltage 380V/3pH/50Hz Command Code G Code Collet ISO30 Software Compatibly Artcam/Artengraver/Type3/V9/Jd Paint Running Temperature 0-45 Centigrade Relative Humidity 30%-75% Transport Package Plywood Packing Specification 1300*2500mm Trademark Guandiao Origin Jinan HS Code 84659900 Production Capacity 10000 Sets/Year

Packaging & Delivery

Package size per unit product 3.20cm * 2.20cm * 1.70cm Gross weight per unit product 1200.000kg

Product Description

Product Description

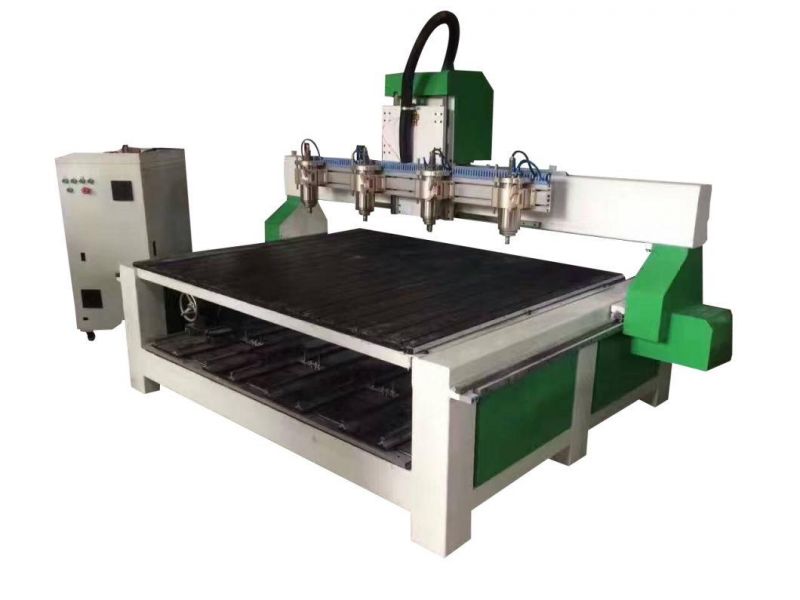

1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router

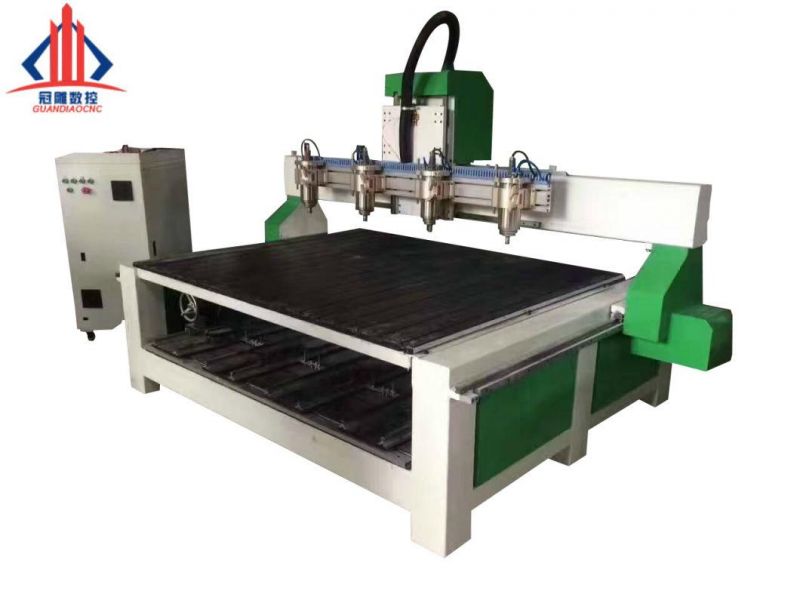

1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router


Brief introduction
1: The whole thick square welded tube frame with high- temperature artificial aging treatment to ensure strong , durable , without any deformation .
2: Y axis is adopted two-motor drives and high-precision gears  rack drive to ensure high power , smooth operation .
3: Powerful dust collector to ensure the processing dust-proof
4: Super vacuum adsorption system to ensure efficiency in processing .
5: Just a touch of the automatic lubrication system. Easy to complete regular maintenance .
6: The highest speed , the idling speed is up to 42m/min or more , in the production of wave plate engraving is up to 20 meters above
7: The breakpoint memory , power outages continue carving , processing time and other functions , to ensure the situation In the next day to continue processing.
8:Applied to different materials , such as copper , aluminum , iron sculptures in the cutting , but also demonstrated in the woodworking industry performance .
9:OEM is available as customer's requirements for machine size and system

1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router

CNC wood carving router technical parameters
DescriptionTechnical parameters
2D Working size1300*2500mm
Z axis size<500mm
3D working sizeDiameters0-400mm       Length:0-2000mm
Table StructureSteel Structure
X Y StructureRack and Pinion TAIWAN HIWIN/PMI Square Guide Rails 20/25mm
Z StructureGermany TBI Ball Screw
Spindle3.2KW water cooling.24000rpm/min
Driver motorChina Steppor motor and leadshine driver
inverterFuling or Sunfar
Control systemN studio/DSP
Working Voltage380V/3PH/50HZ
Command CodeG code
ColletISO30
Software CompatiblyArtcam/Artengraver/Type3/V9/JD paint
Running Temperature0-45 centigrade
Relative Humidity30%-75%
ColorRed and  black / blue and white(option)
Warranty1.One year for machine      2.Half year for spindle
PaymentTT with 30% in advance
Delivery timeWithin 15-20 working days

CNC wood carving router technical application
1. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
2. Advertisement:engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
4. Molding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5. Architectural models: engraving fine window, fencing and wall patterns, etc.
6. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
7. Label: engraving character, number, and other pattern on label for products and on product directly.

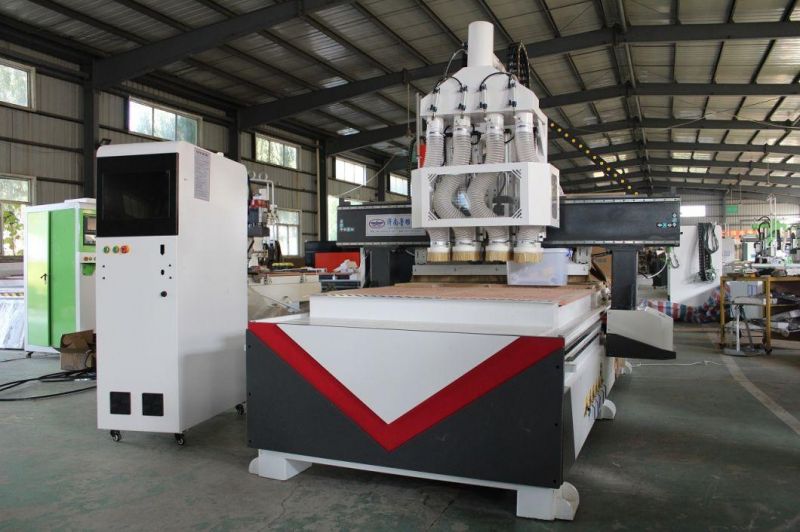

CNC wood carving router details

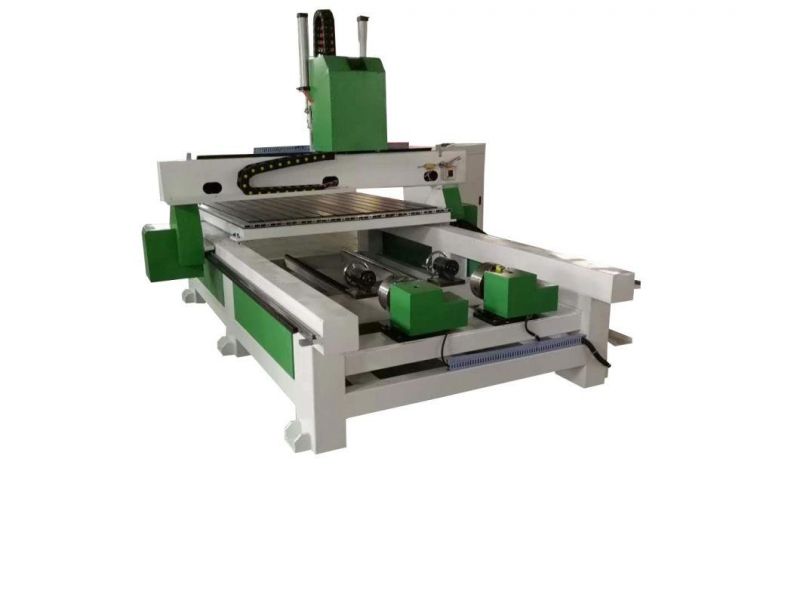

1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router
1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router

1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router

CNC wood carving router samples

1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router


Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost.  Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.4.After sale service:Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service5.We accept the ODM,OEM
If you have other needs, please let me know


Packaging & Shipping

 1325 Wooden Door Router CNC Machine Wood Furniture Crafts Carving Cutting Machine 3D CNC Router

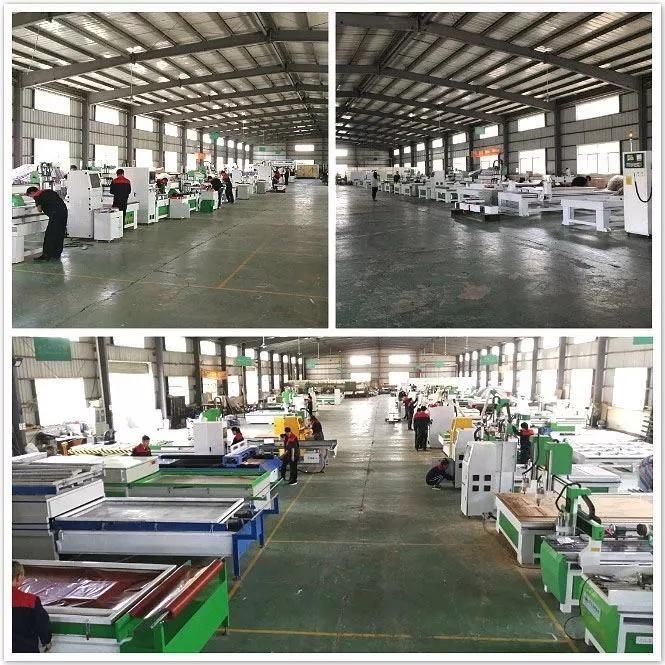

Company Information

Jinan Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
At present, the company's products are sold to major and small cities and regions in China.
The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
