• Model NO.：1325
• Spindle Number：Single-Spindle
• Feed Mode：Manual or Automatic
• Customized：Customized
• Color：Customized
• Z Working Area：200mm
• Working Accuracy：0.02mm
• Spindle Power：3.0kw, 3.5kw, 4.5kw, 6.0kw..
• Transport Package：Plywood Box
• Specification：3200x2200x1800
• Trademark：sea eagle
• Origin：China Jinan
• HS Code：84659900
• Production Capacity：10000 Sets

ModelRT-1325X*Y* Z Working size1300*2500*200mmFeeding heightCan be 200~300mm,following orderIdling Speed18m/minWorking Speed12m/minRepositioning Accuracy<0.02mmSpindle Running Speed0-24000rpmMachine body and working tableSteel structure lathe bed, T-slot table of sectional materialWork holdingBy clamps

Transmission system X HAWIN Square rail,helical rack and pinionY HAWIN Square rail,helical rack and pinionZ HAWIN square rail on Z,Germany Imported double-net ball screw
Spindle
 Power 3.0~3.5 KW water cooling spindle (air cooling is optional)InverterFuling                       Collet diameterØ3.175-Ø12.7mmDrive  system
 Stepper motor,Leadshine driver 860Control SystemNcstudio card  (DSP is optional)Oiling systemAutomaticWorking VoltageAC380V±30V, 50HZ (22V 50Hz)Command CodeG Code, (*.nc*.mmg, *.u00,etc), *.engrunning environment temperature0 degree ~45 degreerelative humidity30~75%Working SoftwareWindows98/xp/7Compatible SoftwareType3/Artcam/UcancamV9/Castmate/corelerow/Autocad

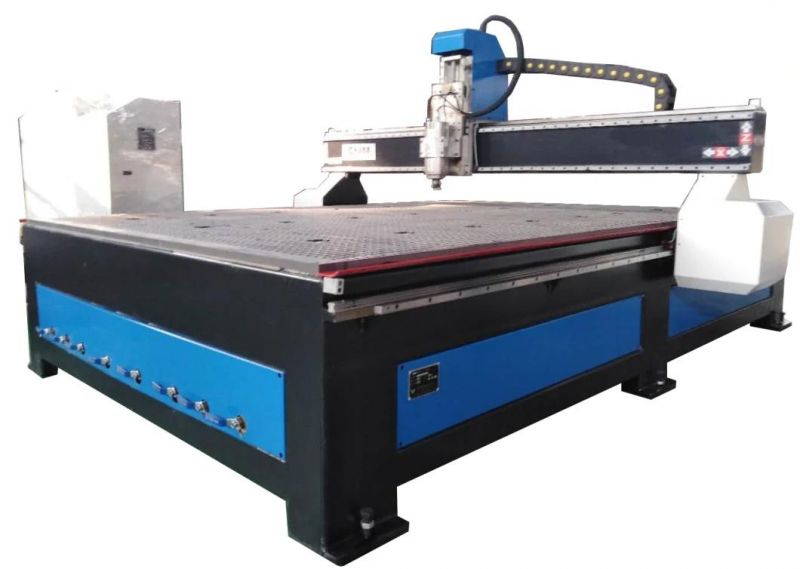

TYPE  TYPE 2   Perfect Type (AC-1325)













Applicable industry
Panel furniture, cupboards, office furniture, custom furniture.
Features

• ModelAC-1325B-H1X*Y* Z  travel size1250*2500*210mmFeeding height210mmWorking Speed18000m/minRepositioning Accuracy<0.02mmSpindle Running Speed0-24000rpmMax working speed18m/minMax traverse speed 30mm/minMachine body and working tableSteel structure lathe bed, T-slot table of sectional materialWork holdingBy vacuum adsorption with 5.5kw pump

  Transmission system      X HAWIN 25mm Square rail,helical rack and pinionY HAWIN 25mm Square rail,helical rack and pinionZ HAWIN 25mm square rail on Z,Germany Imported double-net ball screw
  Spindle
   Power 6.0 KW  spindle Collet diameterØ3.175-Ø12.7mmDrive  system
   Servo motor,Control SystemNcstudio 53C or DSP control system Oiling systemAutomaticMachine weight2500kgWorking VoltageAC380V±30V, 50HZ Command CodeG Code, (*.nc*.mmg, *.u00,etc), *.engrunning environment temperature0 degree ~45 degreerelative humidity30~75%Working SoftwareWindows98/xp/7Compatible SoftwareType3/Artcam/UcancamV9/Castmate/corelerow/Autocad


  Produst highlight

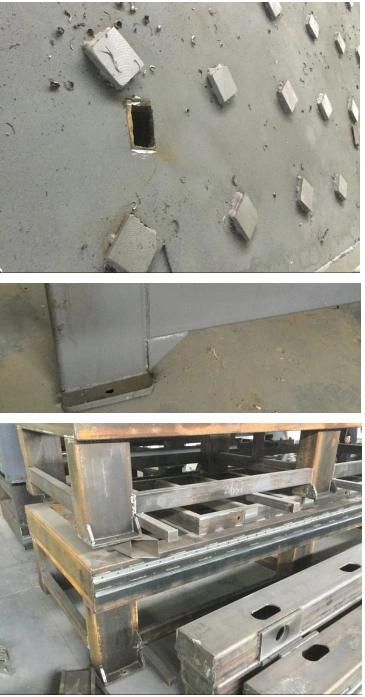

  Bed body is made of real 8~12mm stell plate.whole net weight is 2500kg




  Our bed body is real 8~12mm steel plate, it is very strong!It can be used for 100 years.
  And do you know some factories don't use this thickness steel, thire only is 3~5mm, they fill sand into the bidy,in order to increase weight
