• Model NO.：MJR 1220*2440
• Certification：CE, ISO, FDA
• Customized：Customized
• Condition：New
• Color：Customized
• Machine Item：Gantry Horizontal Band Saw Woodworking Sheet Band
• Machine Painting Color：Be Made According to Your Need
• Price：More Competitive Price Than Other Competitors
• Voltage：380V or as Customer Needs
• Delivery Detail：Quick Delivery in 20 Days
• Saw Blade Dimension：7320*90*1.05mm
• After-Sales Service：24 Hours Technical Support by Email, Call, Video
• Warranty Time：Offer Free Spare Parts and Service Within 12 Month
• Working Experience：Twenty Years′ Experience
• Overall Size：5200*3200*2600mm
• Transport Package：Standard Package, Be Made According Cutomer Need
• Specification：5200*3200*2600mm
• Trademark：XINLIHUI cnc wood boring machine with digital disp
• Origin：Qingdao City
• HS Code：84659100
• Production Capacity：100,Year

Basic Info.

Model NO. MJR 1220*2440 Certification CE, ISO, FDA Customized Customized Condition New Color Customized Machine Item Gantry Horizontal Band Saw Woodworking Sheet Band Machine Painting Color Be Made According to Your Need Price More Competitive Price Than Other Competitors Voltage 380V or as Customer Needs Delivery Detail Quick Delivery in 20 Days Saw Blade Dimension 7320*90*1.05mm After-Sales Service 24 Hours Technical Support by Email, Call, Video Warranty Time Offer Free Spare Parts and Service Within 12 Month Working Experience Twenty Years′ Experience Overall Size 5200*3200*2600mm Transport Package Standard Package, Be Made According Cutomer Need Specification 5200*3200*2600mm Trademark XINLIHUI cnc wood boring machine with digital disp Origin Qingdao City HS Code 84659100 Production Capacity 100/Year

Product Description

Introduction:
The finger joint gantry saw is a new type of opener, which meets the needs of the current market of finger-jointed sheets. This equipment can easily produce finger-joints of any size from 0.1mm to 20mm, changing the traditional production process. Solving the rare things of producing thin plates, saving production costs, and facilitating production management means that the board factory is a good helper.

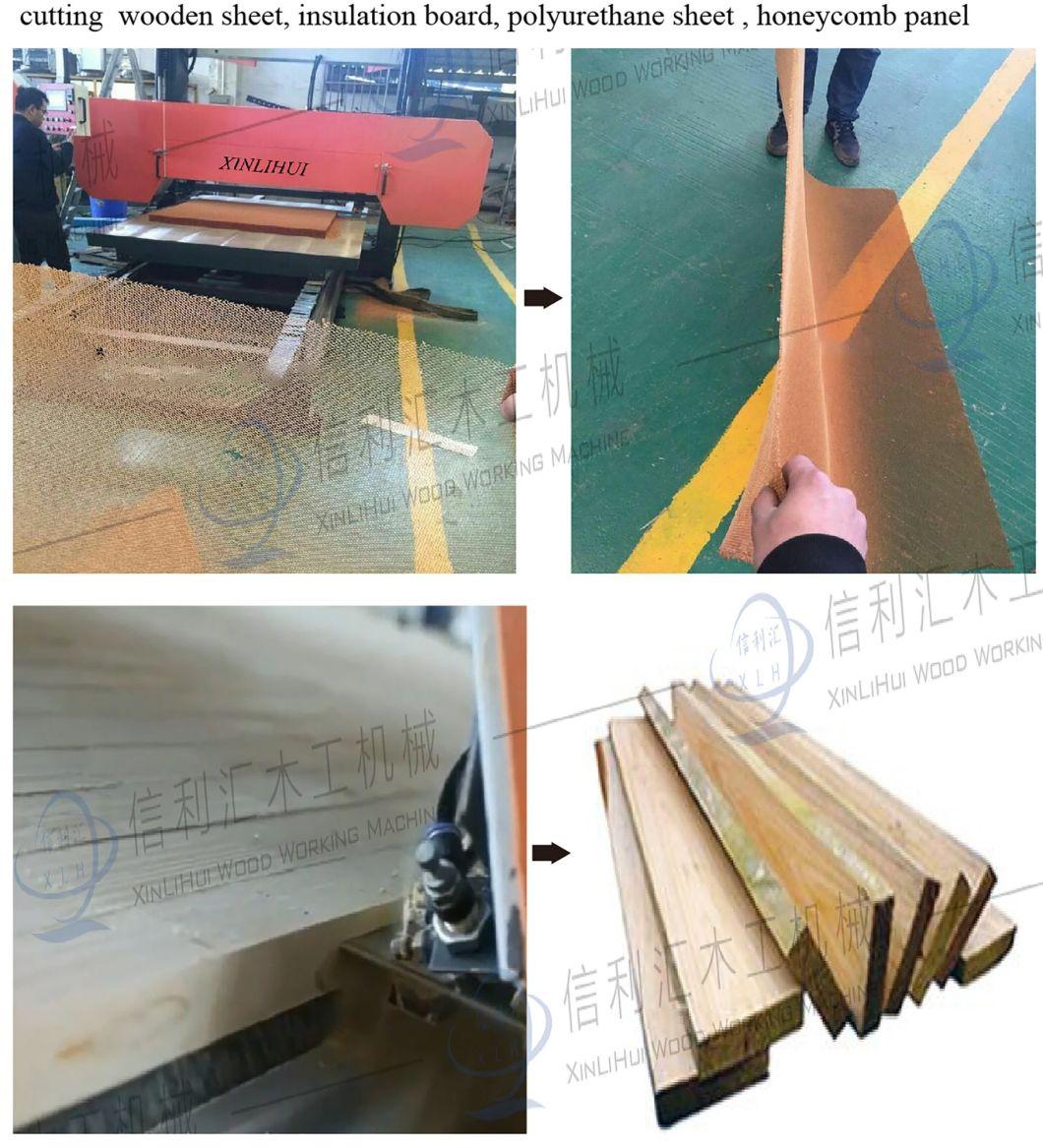

For processing rubber wood,pine, such as all kinds of composite materials plate

using precision guides and precision screw control, to ensure the accuracy of material

the operation is simple, reasonable, a person can be operation

using high power vacuum pump fixed materials, stable and reliable

21 mm pine refers to receive board can open two 0.9mm standard board, takes only 3 minutes

21.5mm rubber wood refers to the joint board can open two 0.9mm standard board, takes only 4 mintues

Use of low cost and high efficiency

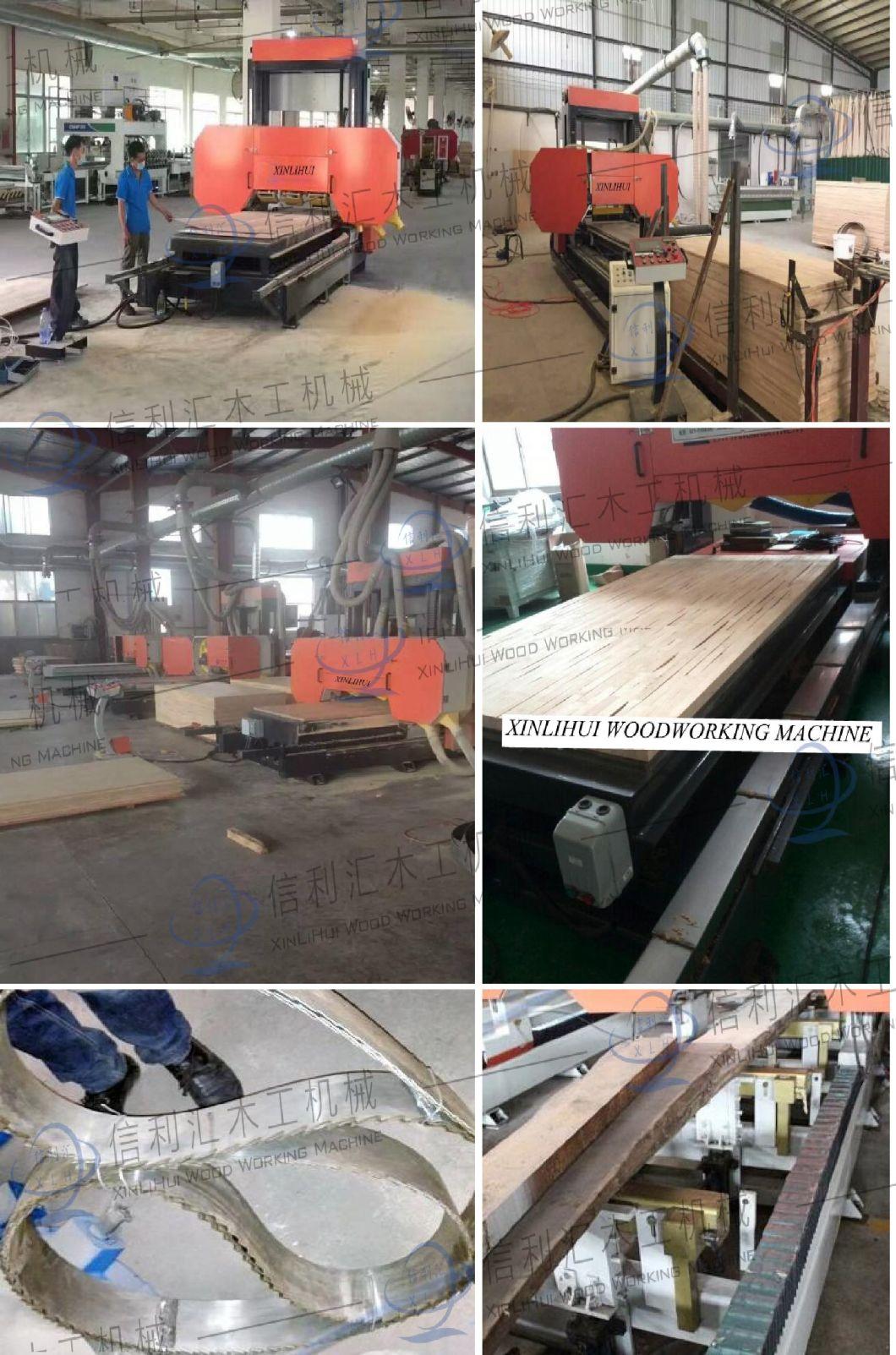

Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!

Product Show

Parameters:

Maximum processing size	2440*1220mm
Table size	2800*1260mm
Suction air motor	7.5kw
The workbench walking speed	forward 0-4m/min adjustable, backword 6/min
Hydraulic pressure	100kg/cm2
Saw line	1.7-1.8mm
Saw wheel dimensions	960*82mm
Saw dimensions	7320*90*1.05mm
Saw wheel motor	30kw
Weight	4800kg
Overall dimensions	5200*3200*2600mm

sample show



Feature:

1. User-friendly operation interface makes the operator easy to understand and makes operation more convenient

2, precision imported screw control lifting, making the precision of sawing material more accurate

3, hydraulic saw blade tensioning automatic compensation system to ensure that the saw blade is in the best tension at all times, extending the life of the saw blade

4, one-time clamping wood, using the wind cannon lock loose, improve the clamping speed

5, humanized calculation, automatic calculation of sawing results, independent system completion, save time

6. The machine adopts a foggy cooling system to provide high efficiency cooling of the saw band and to remove wood chips on the serrations.

7. Adopting imported precision guide rails from Taiwan for transportation, the precision of the sawing material is guaranteed, and the maximum error is less than 20mm.

8, using a separate system to tighten the saw blade, stable and reliable

9. Stainless steel countertops and stainless steel sinks make the machine look high-grade and easy to clean!

 Company Information

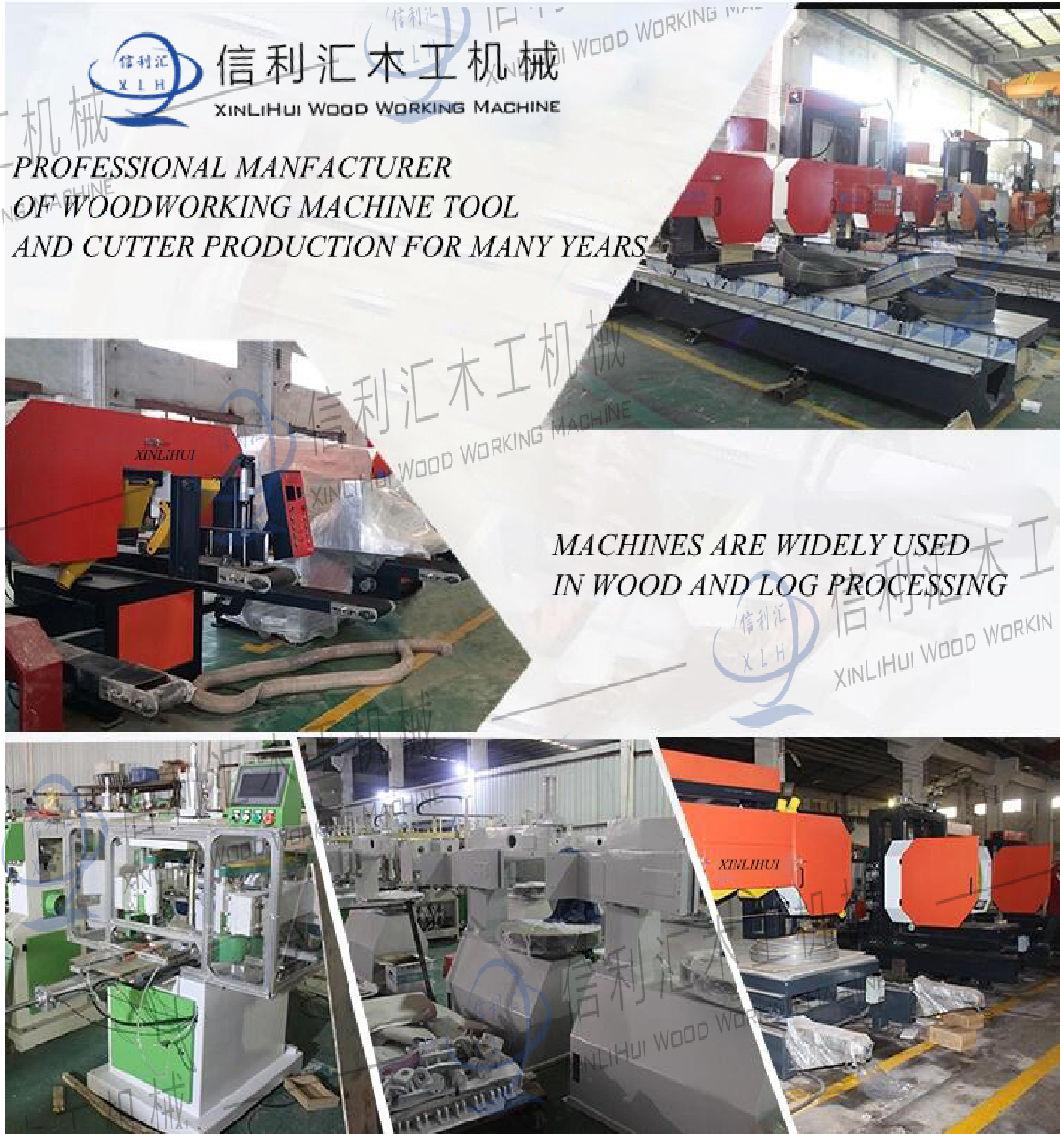

Qingdao  Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.

Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.

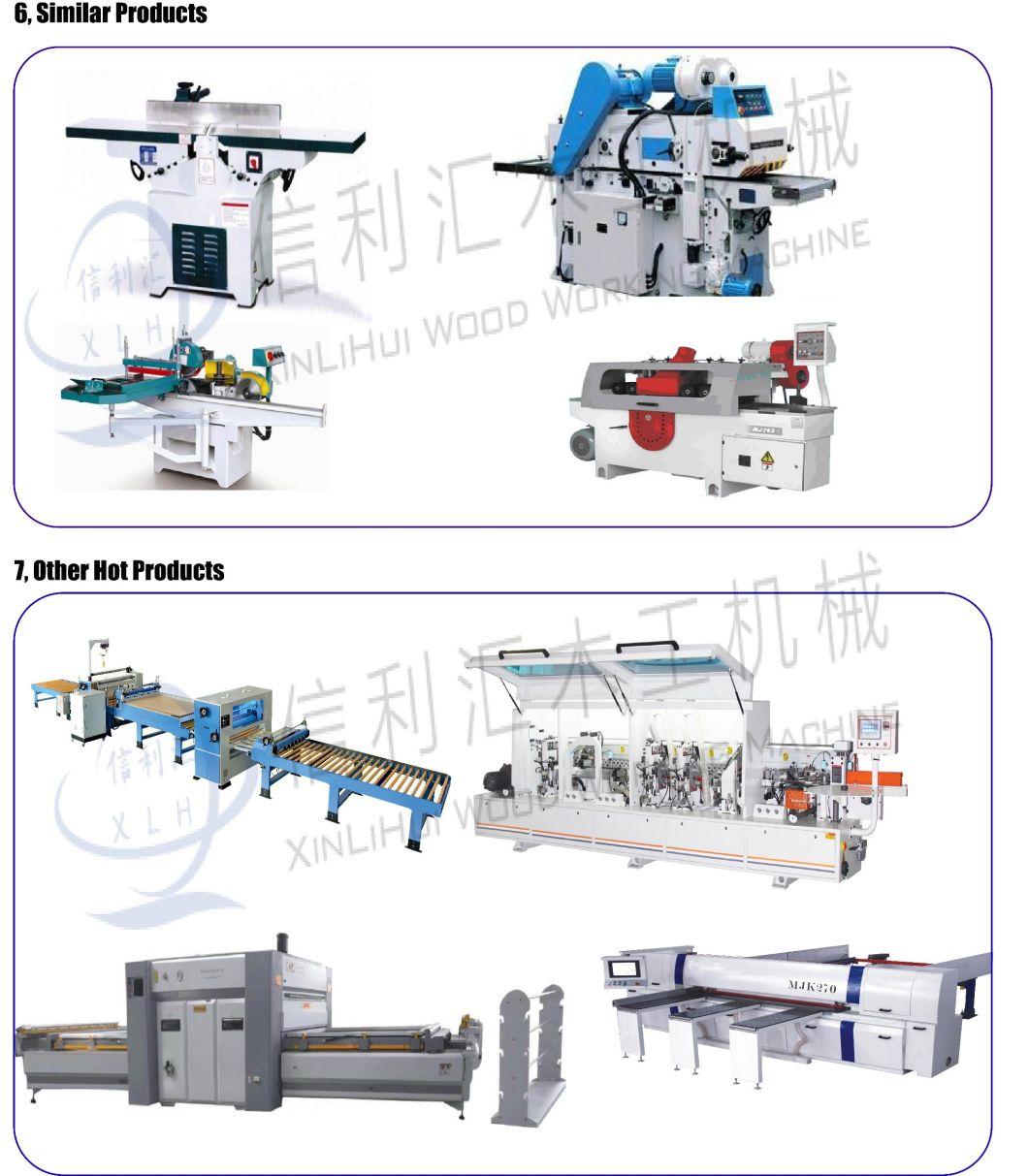

The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards.  With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad.  Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.  It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.
