• Model NO.：ZDR-RP630
• Color：Customized
• Gross Weight：1300kg
• Sliding Table：European Style
• Voltage：220V 1phase , 380V 3phase (Optional)
• Shipping Port：Qingdao
• HS：846420900
• Size of Sanding Belt：650*1900mm
• Working Air Pressure：0.5MPa
• Main Motor Power：11kw,7.5kw
• Feeding Speed：6-30m,Min
• Min. Working Length：350mm
• Max Working Width：630mm
• Transport Package：Wooden Box
• Specification：1700*1100*2050mm
• Trademark：QDZD
• Origin：China
• HS Code：846420900
• Production Capacity：500sets,Month

Basic Info.

Model NO. ZDR-RP630 Color Customized Gross Weight 1300kg Sliding Table European Style Voltage 220V 1phase / 380V 3phase (Optional) Shipping Port Qingdao HS 846420900 Size of Sanding Belt 650*1900mm Working Air Pressure 0.5MPa Main Motor Power 11kw,7.5kw Feeding Speed 6-30m/Min Min. Working Length 350mm Max Working Width 630mm Transport Package Wooden Box Specification 1700*1100*2050mm Trademark QDZD Origin China HS Code 846420900 Production Capacity 500sets/Month

Product Description

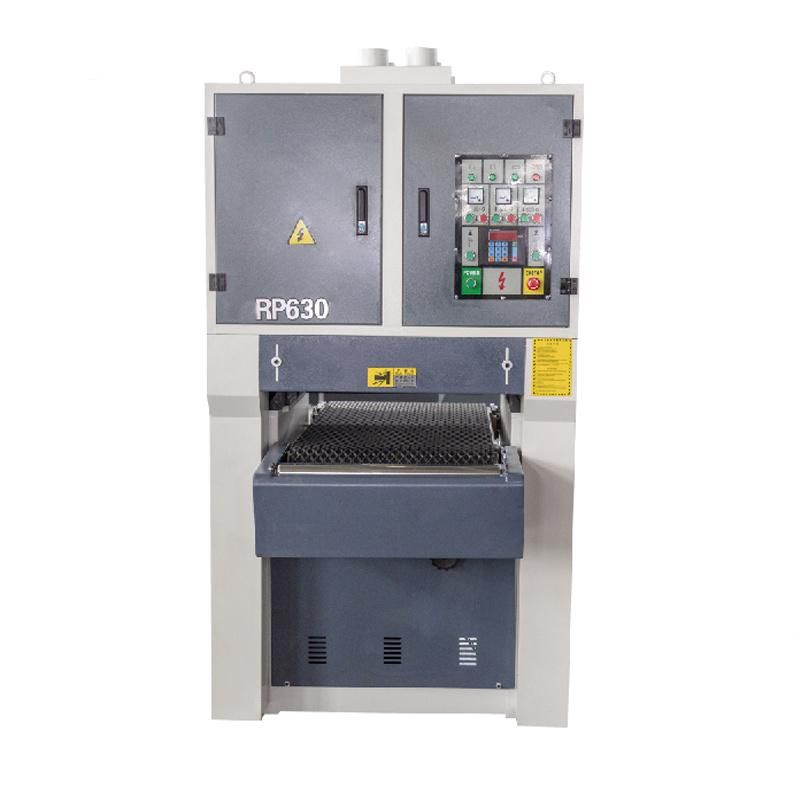

General Calibrating Wide Belt Sander Machine


Technical Parameters


Model	ZDR-RP630	ZDR-RP1000	ZDR-RP1300
Max working width	630mm	1000mm	1300mm
Material thickness	2.5-120mm	2.5-120mm(option 2.5-160mm)	2.5-120mm(option 2.5-160mm)
Min. Working length	350mm	350mm	350mm
Feeding speed	6-30m/min	6-30m/min	6-30m/min
1# sanding belt speed	18m/min	18m/min	18m/min
2# sanding belt speed	14m/min	12m/min	12m/min
Size of sanding belt	650*1900mm	1020*2020mm	1320*2020mm
Main motor power	11kw,7.5kw	15kw,11kw	37kw,22kw
Total power	20.74kw	28.94kw	56.74kw
Working air pressure	0.5mpa	0.55mpa	0.55mpa
Volume of dust collecting	5000m³/h	5000m³/h	5000m³/h
Speed of dust collecting	25-30m/s	25-30m/s	25-30m/s
Overall dimension (L*W*H)	1700*1100*2050mm	1700*1400*2050mm	2750*2200*2050mm
Weight	1300kg	2000kg	3200kg

Company Introduction

        Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
        Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
       We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.






The Workshop

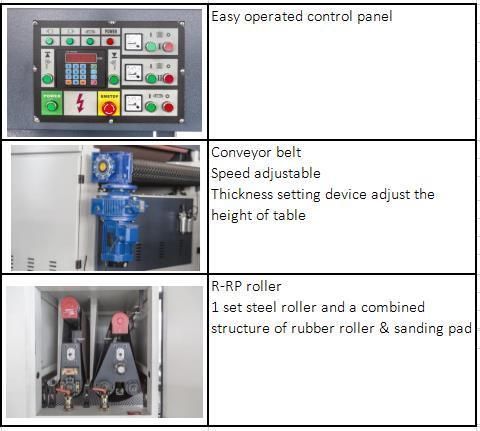

 Product Details:



Customer Visiting:






Our Certificate:


The package:
