100m High Speed 4 FT Spindleless Peeling Machine for Core Veneer

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification：CE, ISO, FDA
  • Max Length of The Wood：1400mm
  • Working Speed：20-82m,Min
  • Working Diameter Range：22-500mm
  • Veneer Thickness：0.5-7.0mm
  • Machine Weight：7000kgs

Base Info

  • Model NO.：BXQ1814,50HK
  • Machine Overall Dimension：4900X1900X1550mm
  • Transport Package：Standard Export Sea-Worthy Packing
  • Trademark：Metro
  • Origin：China
  • HS Code：8465960000
  • Production Capacity：100set,Month

Description

Basic Info.

Model NO. BXQ1814/50HK Machine Overall Dimension 4900X1900X1550mm Transport Package Standard Export Sea-Worthy Packing Trademark Metro Origin China HS Code 8465960000 Production Capacity 100set/Month

Product Description

100M High Speed 4 FT Spindleless Peeling Machine for Core veneer
1.Product Description:
  Spindle-less veneer peeling machine is one of the equipment for the production of plywood, which belongs to the mechanical spindleless rotary cutting transmission machine, suitable for lathe cutting remaining wood core to continue into veneer, also can be applied to small diameter wood (diameter 300mm) into veneer.These advantages like those:
1,Processing of the board thickness uniform, surface smooth;
2,reasonable structure, easy operation and maintenance;
3,equipment performance is stable, less wearing parts, long life;
4,saving timber resources.
5,Artificial technical requirements are not high,in the normal peeling the machine,the error in ± 0.1mm

2.Technical Parameters:
Max working length1400mm
Knife size1500mm
Min working diameterΦ500mm
Min working diameterΦ30mm
Veneer thickness range0.5-7.0mm
Roller diameter125mm
Single roller motor5.5KWX2
Double roller motor7.5KWX2
Feed motor11KW
Cutting motor1.5KW
Conveyor motor1.5kw
Total power40kw
Peeling speed30~90m/min
Overall size4700mmx1900mmx1500mm
Weight7000kgs

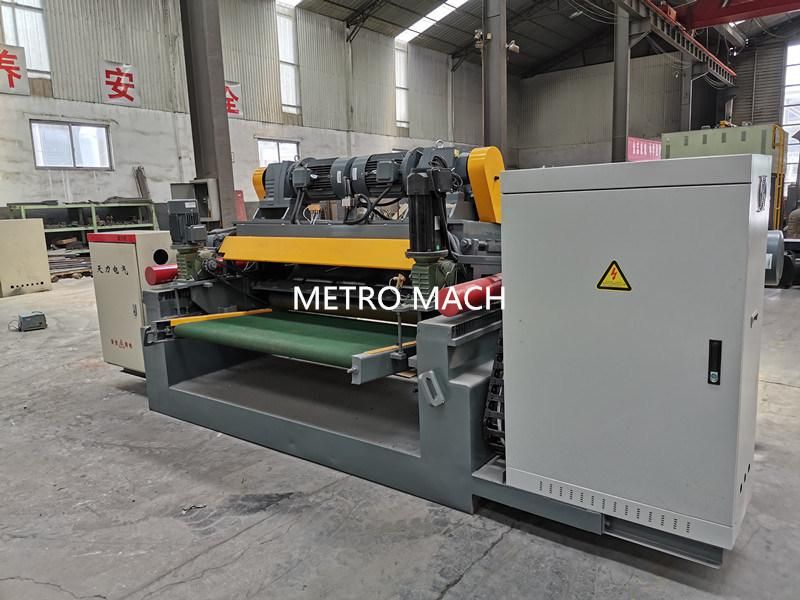

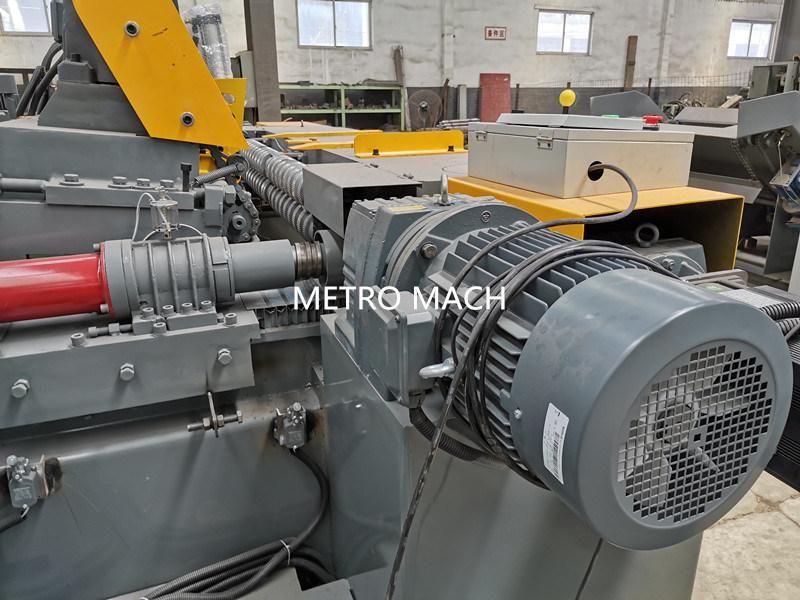

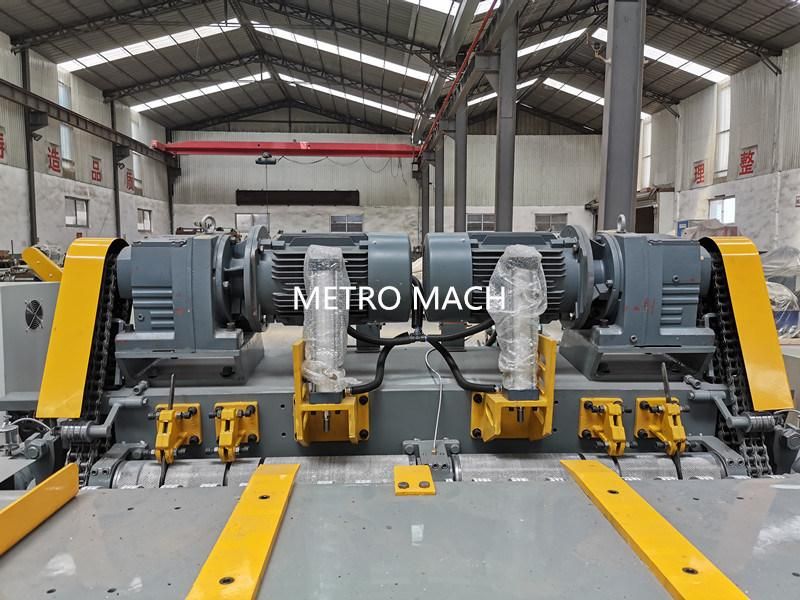

3.Machine Pictures:
100m High Speed 4 FT Spindleless Peeling Machine for Core Veneer100m High Speed 4 FT Spindleless Peeling Machine for Core Veneer100m High Speed 4 FT Spindleless Peeling Machine for Core Veneer100m High Speed 4 FT Spindleless Peeling Machine for Core Veneer





4.Packing and Delivery:
100m High Speed 4 FT Spindleless Peeling Machine for Core Veneer

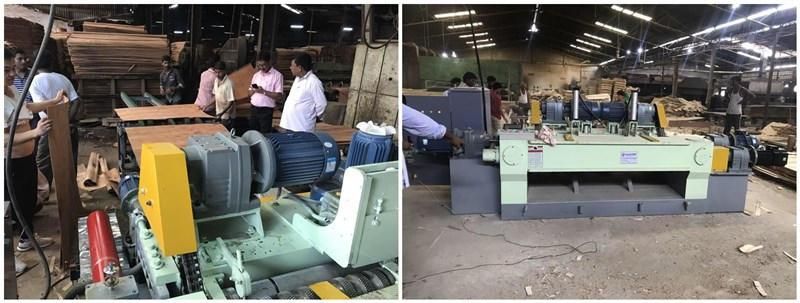

5.Working cases:
100m High Speed 4 FT Spindleless Peeling Machine for Core Veneer


6.Client Satisfaction

It remains our prime aim to maintain offered machinery quality standards so as to garner multiple customers besides maintaining good terms with the old ones. Over the years we have been offering an unmatched quality product range and have successfully attained the trust and reliance of our esteemed clients.

Welcome to consult ~
