Shd Factory Supply Biomass Ring Die Wood Pellet Mill Price, Wood Pellet Machine

Jinan Shanghangda Machinery Co., Ltd.
  • Type：Flat Die Platen Wheel
  • Voltage：380V
  • Automatic Grade：Automatic
  • Controlling Mode：CNC
  • Energy Saving：Energy Saving
  • Certification：CE, ISO

Base Info

  • Model NO.：SHD560, 760, 850
  • Warranty：1 Year
  • Customized：Customized
  • Condition：New
  • Color：Multi Color
  • After-sales Service：Provide
  • Material：Stainless
  • Motor：Chinese Brand
  • After-Sales Service Provided：Online Support
  • Model：Ring Die Wood Pellet Mill
  • Weight：Customized
  • Name：Wood Pellet Mill
  • Raw Material：Wood, Biomass, Sawdust, Rice Husk
  • Usage：Making Biomass Pellets, Sawdust Pellets
  • Certifications：CE
  • Application：Automatic
  • Lubrication System：Automatic
  • Pellet Diameter：6-10mm
  • Capacity：1-3.5t,H
  • Material Moisture：12-15%
  • Transport Package：40-Foot Frame
  • Specification：2.5M*2.5M*2.5M
  • Trademark：SHD
  • Origin：Shandong
  • Production Capacity：1000set,Year

Description

modelcapacity(t/h)pellet diameter(mm)power(kw)weight(t)size(mm)SHD5601-1.54-12mm90/1326.12600*1300*2300SHD7602-2.54-12mm1607.52900*1300*2400SHD8502.5-3.54-12mm20014.53300*1400*3100

Shd Factory Supply Biomass Ring Die Wood Pellet Mill Price, Wood Pellet Machine

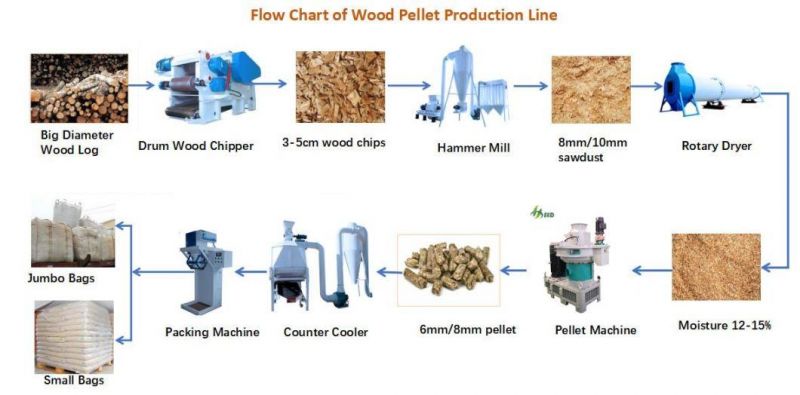

How to make wood pellets by wood pellet mill:

1. Use Wood Chipper, Wood Crusher to make wood logs, chips (or other materials) smaller.
2. Use Dryer (rotary drum dryer / Air-flow dryer) or add water to the sawdust(or other materials) till its moisture content between 12-15%, which is the best moisture content for pelletizing.
3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a screw feeder to make sure stable feeding of raw material.
4. After pelletized, the pellets are of high temperature that is not suitable for direct packing. So they should be cooled by pellet cooler.
Then, pellets go through a vibrating sieve, where good pellets will be left, while broken ones or powder will be collected for reproduction.
5. After all the above procedures, pellets can be packed with a pellet packing machine.

Shd Factory Supply Biomass Ring Die Wood Pellet Mill Price, Wood Pellet MachineOther products:

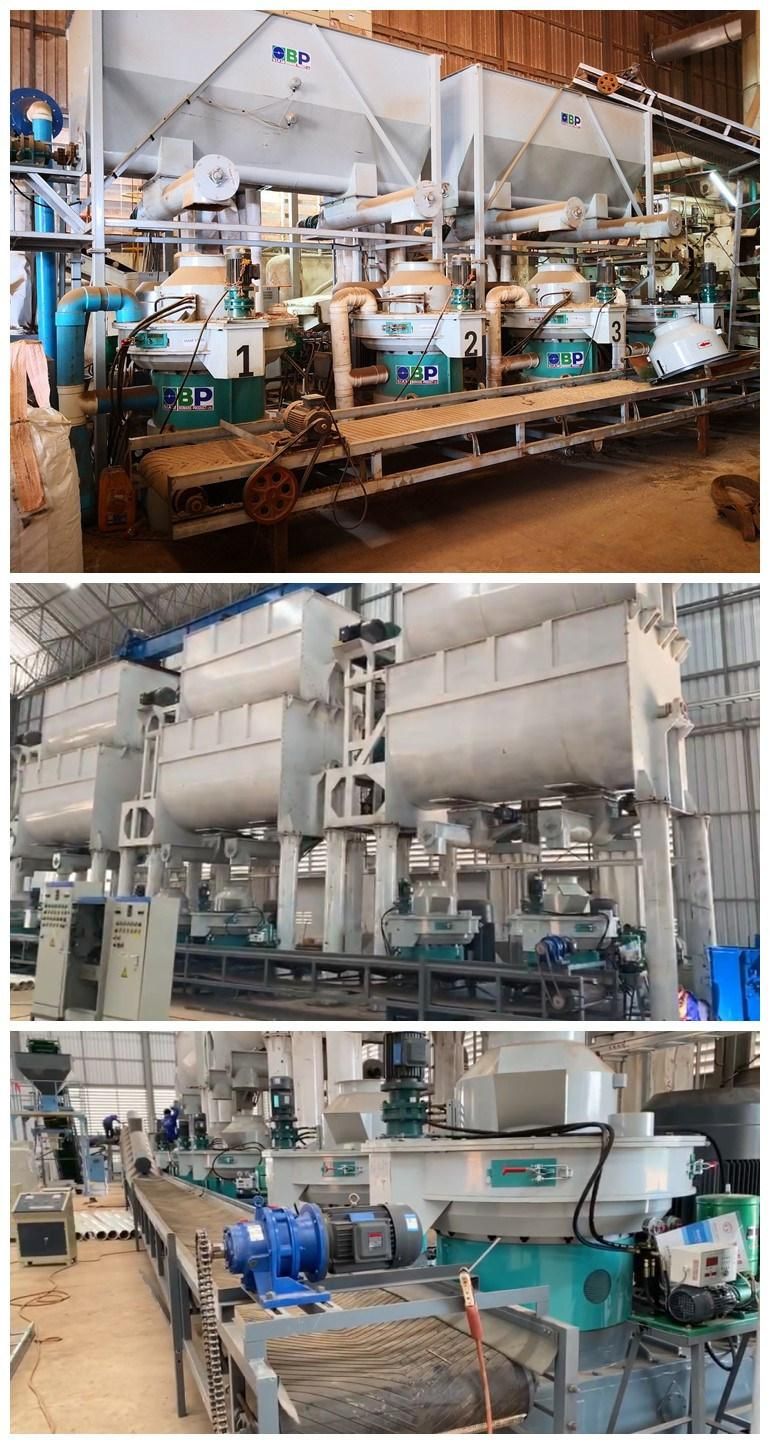

Shd Factory Supply Biomass Ring Die Wood Pellet Mill Price, Wood Pellet MachineCustomer cases:
Shd Factory Supply Biomass Ring Die Wood Pellet Mill Price, Wood Pellet MachineShd Factory Supply Biomass Ring Die Wood Pellet Mill Price, Wood Pellet MachineOur Service
1.Quality Warranty
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products.
When yougot the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
FAQ
You May Have Following Questions:
Q1. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q2: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Notice:All models can be customized according to customer needs.
