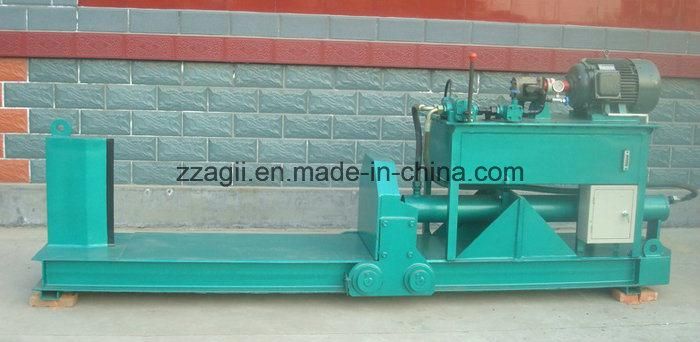

Automatic Electric Hydraulic Mobile Wood Log Splitting Machine
Zhengzhou AG Machinery & Equipment Co., Ltd.- Type：Splitter
- Power Type：Electric
- Layout：Horizontal
- Controlling Mode：CNC
- Automatic Grade：Semiautomatic
- Precision：Precision
Base Info
- Model NO.：WP 1200
- Certification：CE
- Customized：Customized
- Condition：New
- Color：Customized
- Max Log Diameter：500mm
- Max Log Length：800mm
- Pressure：30tons
- Overall Size：2800*600*1100 mm
- Weight：1200kg
- Mobile Type：4PCS Wheels
- Diesel Type：12HP Diesel Engine
- Keyword 1：Wood Log Splitter
- Keyword 2：Forest Log Splitter
- Keyword 3：Log Splitting Machine
- Transport Package：Export Package, Wooden Case
- Specification：CE, SGS
- Trademark：AGII
- Origin：China
- Production Capacity：50 Sets Per Month
Description
(mm)
(mm)
(KW)
(tons)
(mm)
(kg)
Features of horizontal wood splitter:
1) The length of the work table has 3 dimension-1000mm, 1200mm and 1500mm.
2) The nominal pressure is 30ton, 40ton and 50ton and so on depend on different model.
3) We can design the splitter with different pressure according to the customers' request.
4) The horizontal type splitter is more convenient to operate. The power can be electric motor or diesel engine depend on customers' need.
5) We also can design it to be mobile type with tires which can be attached to tractor or car.
Advantage of electric log splitter:
1). The center of gravity is low so it is steady and safe when working.
2). It can work with the material with big diameter.
3). The hydraulic system is fixed to the main body of splitter, so it don't need to be installed before use.
4). It is easy to be moved and transported by simple lifting equipment. And it can be designed to be mobile type with tires then be attached to tractor or car.
Application of Wood Splitting Machine:
This log splitting machine is suitable to use in dense board factories, man made board factories, veneer board manufacturers.
At present, wood splitting machine is important equipment in paper-making, man-made board, wood pulp processing industries.
