Woodworking Machinery

Home > Product > Woodworking Composer

Core Veneer Composer Jointer Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification：ISO, CE
  • Voltage：380V
  • Color：Customized
  • Transport Package：Plastic Film
  • Specification：weight: 5500 kg
  • Trademark：metro

Base Info

  • Model NO.：MAC4,6-8
  • Origin：China
  • HS Code：8465960000
  • Production Capacity：30 Sets,Year

Description

Basic Info.

Model NO. MAC4/6-8 Origin China HS Code 8465960000 Production Capacity 30 Sets/Year

Product Description

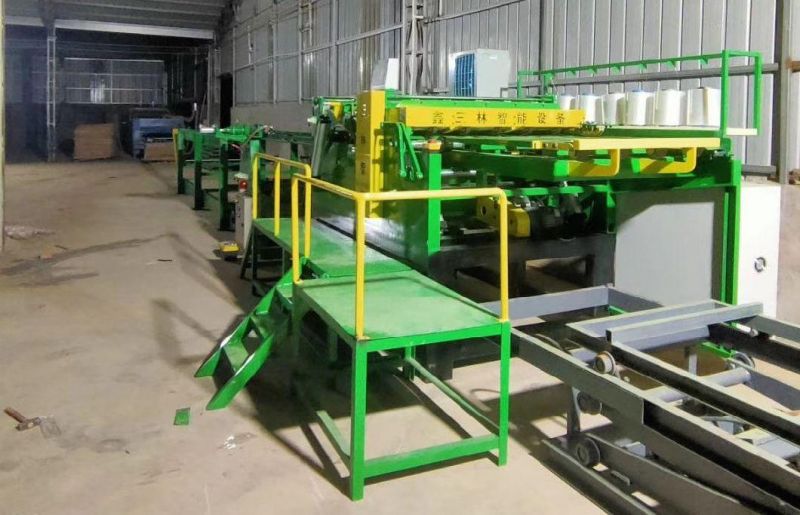

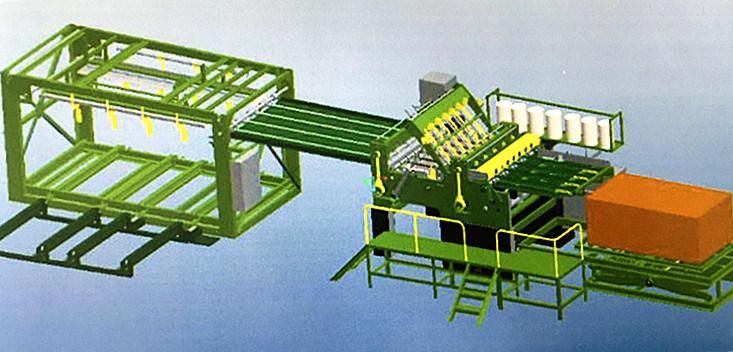

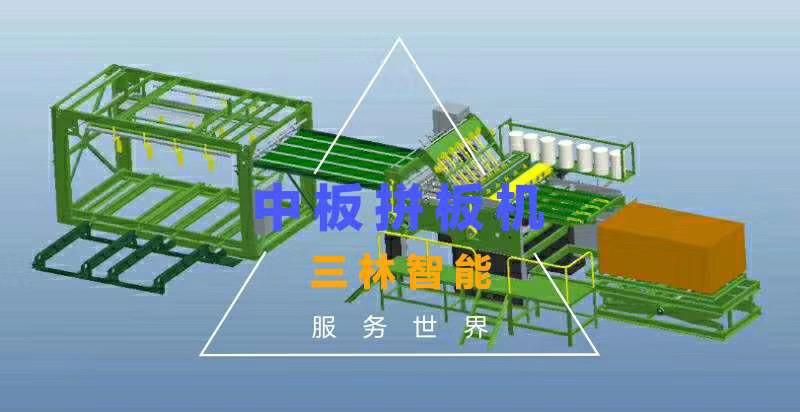

PHOTOS SHOW:

Core Veneer Composer Jointer Machine
Core Veneer Composer Jointer MachineCore Veneer Composer Jointer MachineCore Veneer Composer Jointer Machine
Core Veneer Composer Jointer Machine

Core Veneer Composer Jointer Machine
Core Veneer Composer Jointer Machine
Core Veneer Composer Jointer Machine
Core Veneer Composer Jointer Machine

SPECIFICATION:

Front cut1.5 kw
Front drive3 kw
Rear drinve3 kw
Back cut1.5 kw
Middle transmission1. kw
Receiving rack transmission1.5 kw
Lifting3 kw
Stacking1.5 kw
Refrigerating device2.7 kw
Heating device8 kw
Effective thickness1.2 mm - 4.0 mm
Work efficiency290 pcs/ h
(max)Overall dimensions13000 mm x 4000mm x 2600 mm
Gross weight6000 kg
Total power27.2 kw



SERVICES:

PRE-SERVICES:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

SERVICES DURING THE SALES:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

AFTER THE SALE SERVICES:
1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
