• Model NO.：FM1325
• Motor：Step Motor
• Guide Rail：Taiwan Hiwin Linear Rail
• Transmission Way：Rack Gear
• Inverter：Fuling Inverter
• Ball Screw：Taiwan Tbi Ball Screw
• Structure：Welded Steel Tube Structure
• Table：Vacuum and T-Slot Table
• Spindle Rotate(Rpm)：6000~24000
• Transport Package：Export Plywood Case
• Specification：2500*1300mm
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM1325 Motor Step Motor Guide Rail Taiwan Hiwin Linear Rail Transmission Way Rack Gear Inverter Fuling Inverter Ball Screw Taiwan Tbi Ball Screw Structure Welded Steel Tube Structure Table Vacuum and T-Slot Table Spindle Rotate(Rpm) 6000~24000 Transport Package Export Plywood Case Specification 2500*1300mm Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

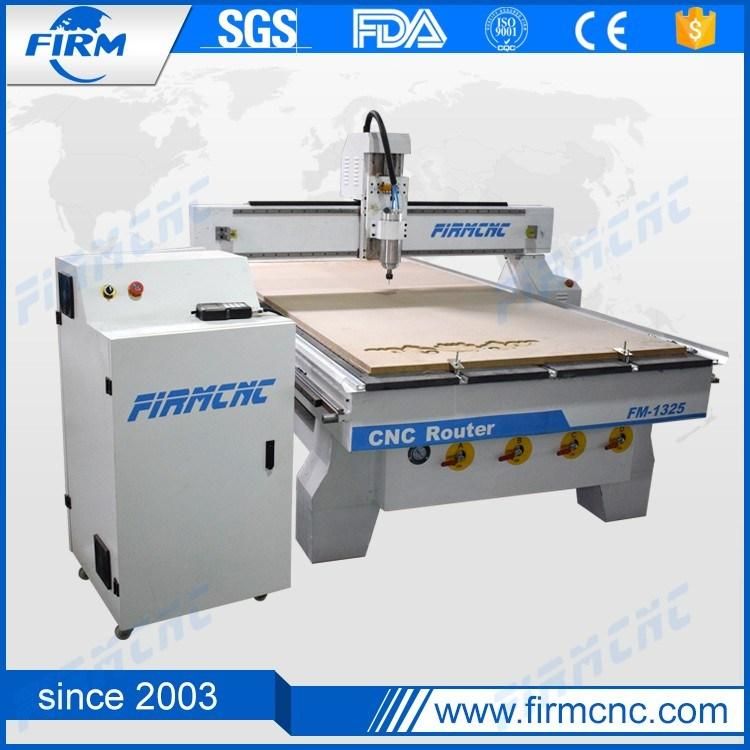

Hot Sale MDF Door Wood CNC Router Woodworking Machine

This machine is Firm company's vacuum table machine. It working size is: 1300x2500x200mm, vacuum table, using the vacuum pump to absorb the mould on the table, it is convenience for our users is don't need the materials holders, put the mould on the table, open the vacuum pump, then can working, but it has one point that not absorb the irregular, out of faltness mould, 3D embossment. This vacuum table machine fit for the users who has the large volume productions, it can improve the working efficiency, it is save the time and labor than the aluminium profile wood cnc router.

But aluminium profile wood working machine can work on the 3D embossment and the irregular, out of faltness mould.
So welcome to contact us when you need wood working machines on the wooden, MDF doors or the furniture...
Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor...So don't hesitate contact us!

Features
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
9. The advanced professional control system compatible with many instructions formats, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor.
10. We can produce the machine as your requirements.

Technical specification

Model	FM1325
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

Application:
1. The advertising industry
wood cnc machine can engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration.
2. woodworking industry
wood cnc machine can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door, omposite door, cupboard door and window, bedside cabinet, folding screen etc.
3. Artwork industry wood cnc machine can process wooden craft, mural art of wood, artwork embossed, jewelery, cosmetics package, musical instrument.
4. Soft metal processing
wood cnc machine can process aluminum front panel, pop can, aluminum honeycomb panel, train car and aircraft interior decoration, bronze medal, copper mold.
5. Electronic industry
wood cnc machine can engrave electronic component, integrated circuit, electronic plastic case, electronic product model, circuit board, electronic light box, computer and mobile phone keyboard, engraving a varity of electronic products.

Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Service
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.

Our Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.



FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
