• Model NO.：MF
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• Transport Package：Wood Carton
• Specification：6730*880*1580mm
• Trademark：ZhongDing
• Origin：China
• HS Code：84659400
• Production Capacity：200 Set,Month

Basic Info.

Model NO. MF Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Underneath Customized Customized Transport Package Wood Carton Specification 6730*880*1580mm Trademark ZhongDing Origin China HS Code 84659400 Production Capacity 200 Set/Month

Product Description

Fully Automatic PVC Edge Banding Machine for Wooden Furniture Processing

What is the details of our edge banding machine?

1. Glue pot is casted as a whole part. So it won't broken.



2. Glue shaft is patent design, CNC processing, to guarantee the glue output and daub evenly.



3.  All edge banding parts adopt CNC processing, error control within 0.017 mm.



4. End cutting tidily, docking closely between the cutting end, basically no gap.



5. Our bearings are made in Japan.

    Pneumatic element: Airtac from Taiwan

    Electric device: Omron (Japan), TECO (Taiwan), Schneider (France)

    Motor: TUNGLEE (Taiwan)    High-frequency motor from Japan

Product Description

Type	MF450A
Banding tape thickness	0.4-3 mm
Banding tape width	12-65 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Work piece width	>=50 mm
Heating power	1.8 KW
Feeding motor power	3.7 KW
Glue spreading power	0.75 KW
End trimming power	0.5 KW x 2
Rough trimming motor power	0.75 KW x 2
Fine trimming power	0.75 KW x 2
Corner rounding motor power	0.5 KW x 2
Polishing motor power	0.37 KW x 2
Feeding speed	10-23 m/min
Air pressure	0.8 Mpa
Overall dimension	5670x850x1520 mm
Packing size	5700x880x1580 mm
N.W.	2300 KGS
G.W.	2450 KGS

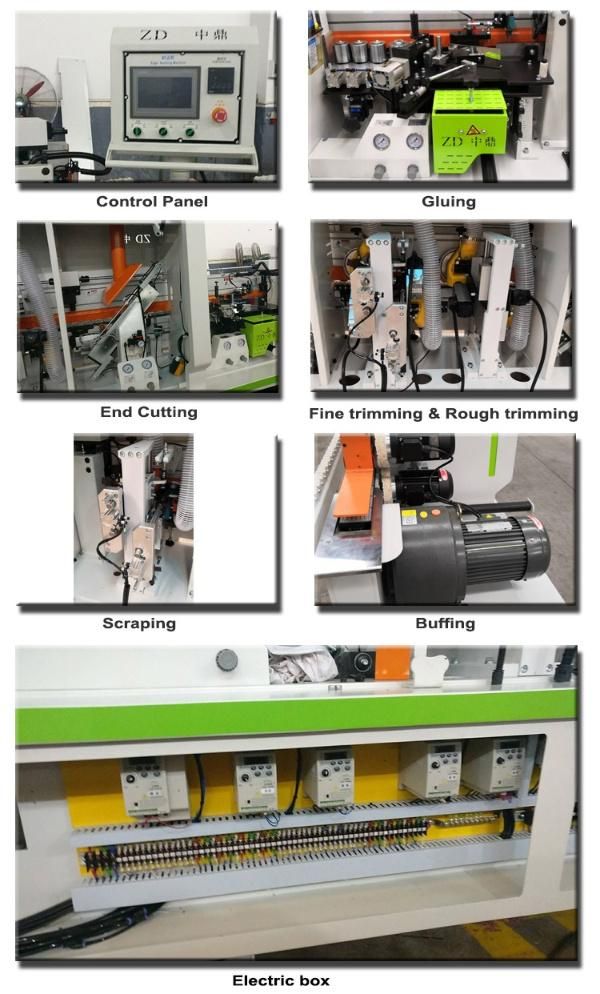

Feature:
  1.The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
  2.End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.

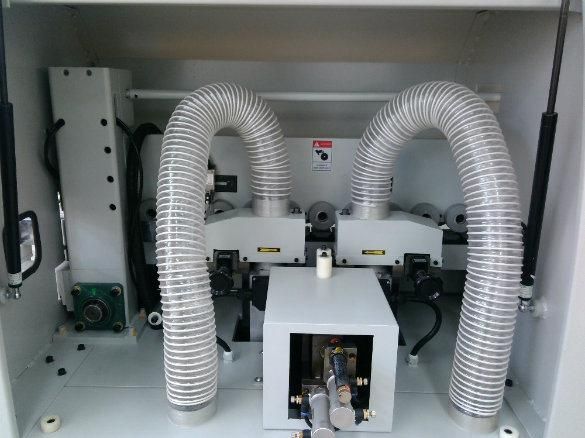

  3.Rough/fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
  4.Profiling unit is to make the board ending more smooth and aesthetic
  5Scraping unit is for a perfect finishing of the applied edge.
  6.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.

What is the functions of our sliding table saw?

Pre-milling
